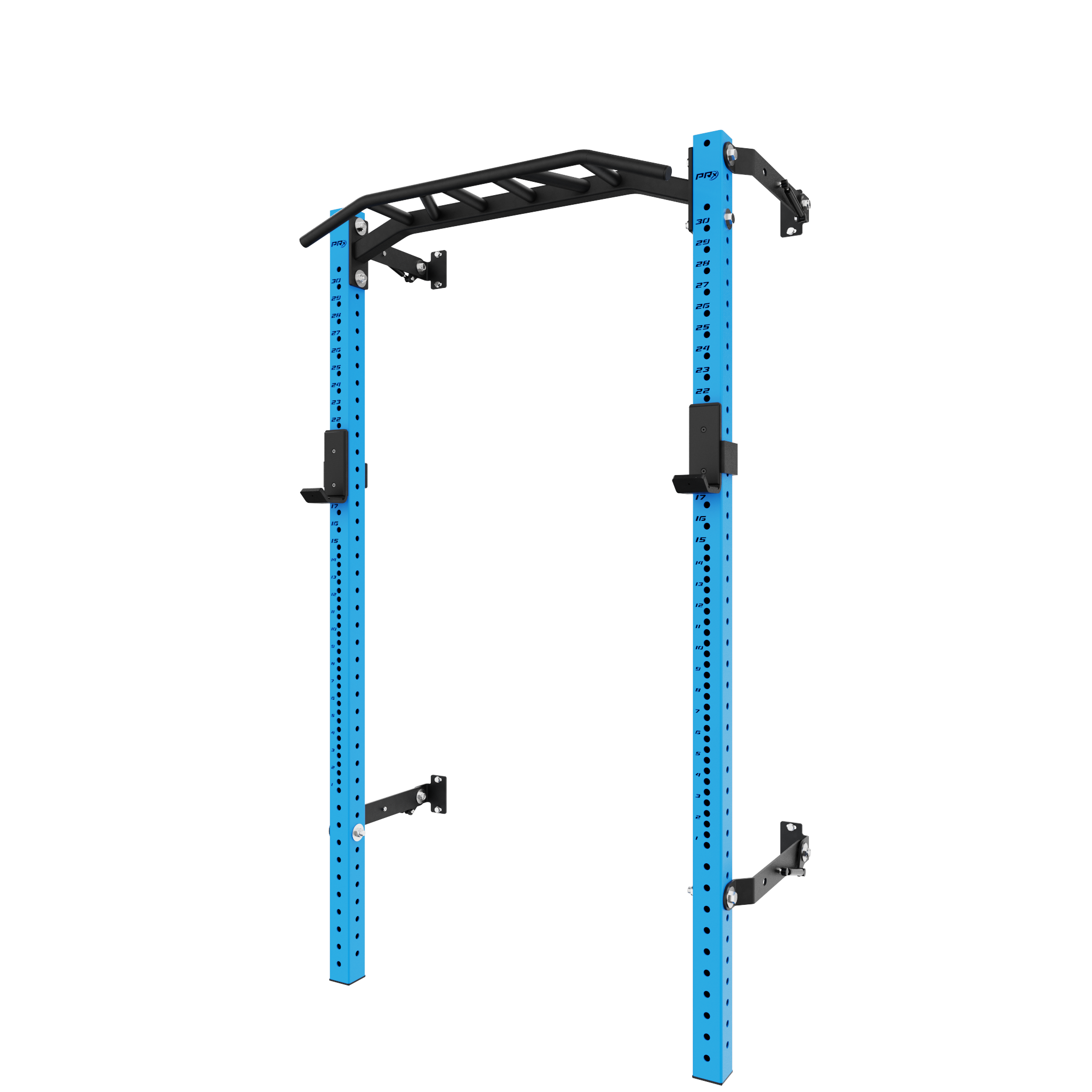

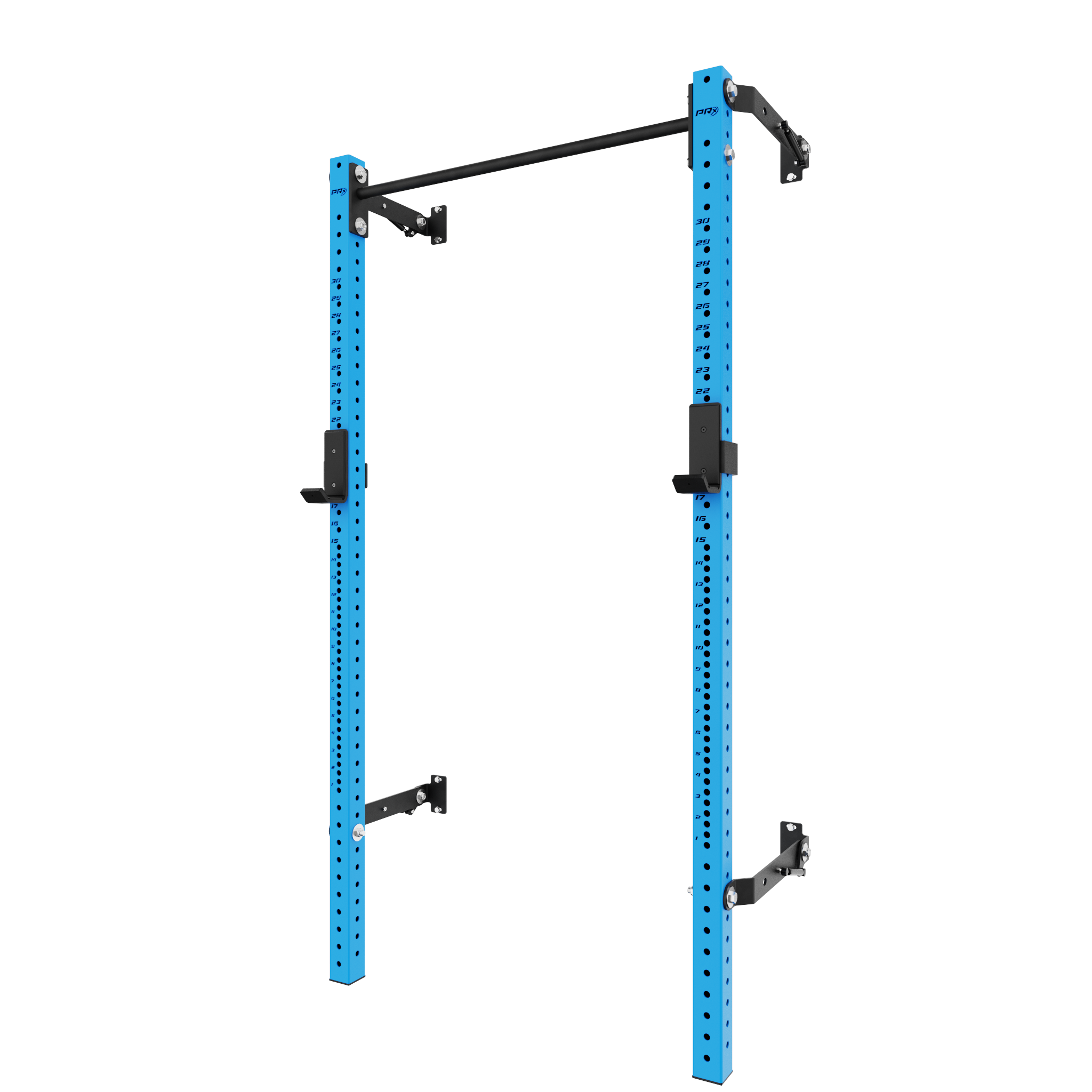

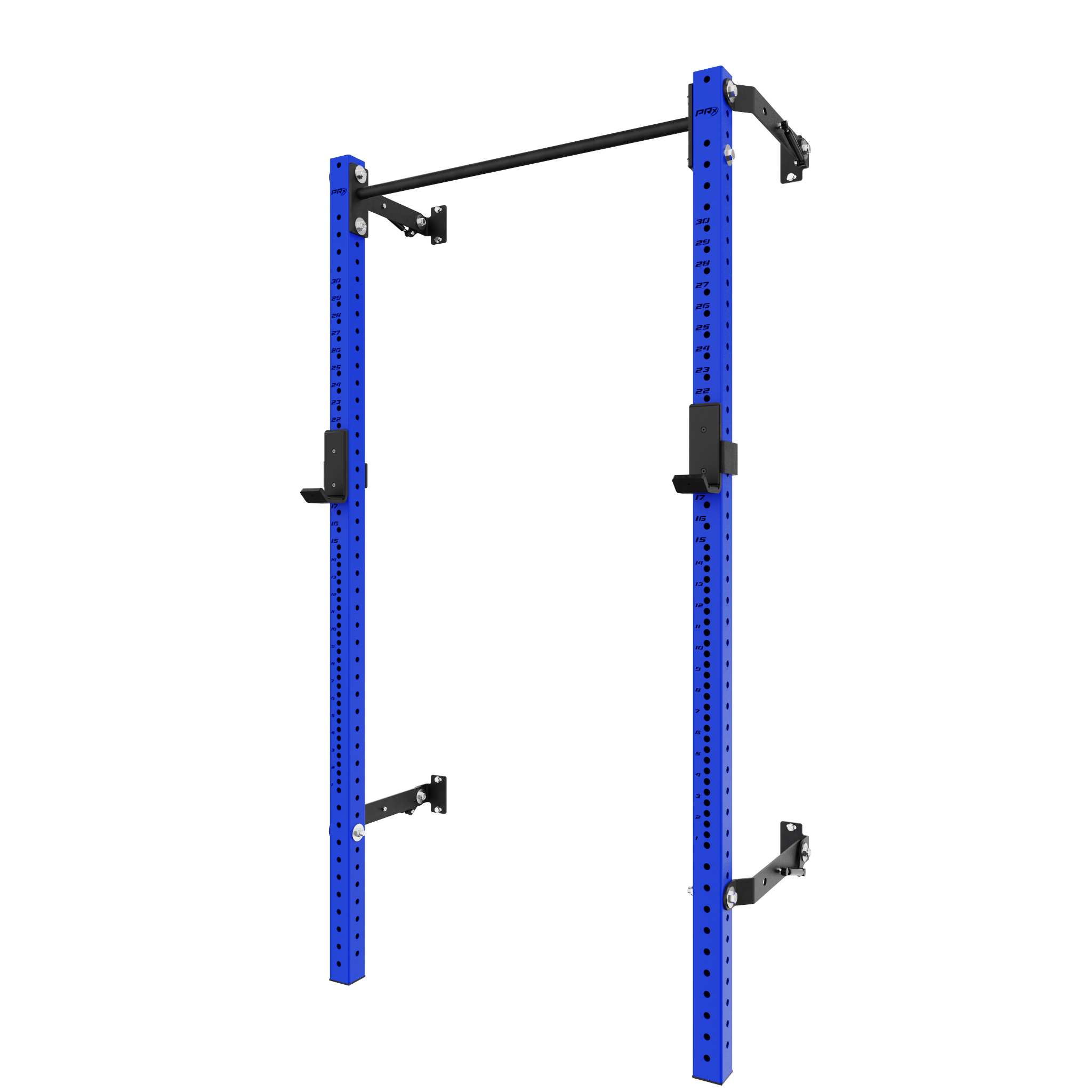

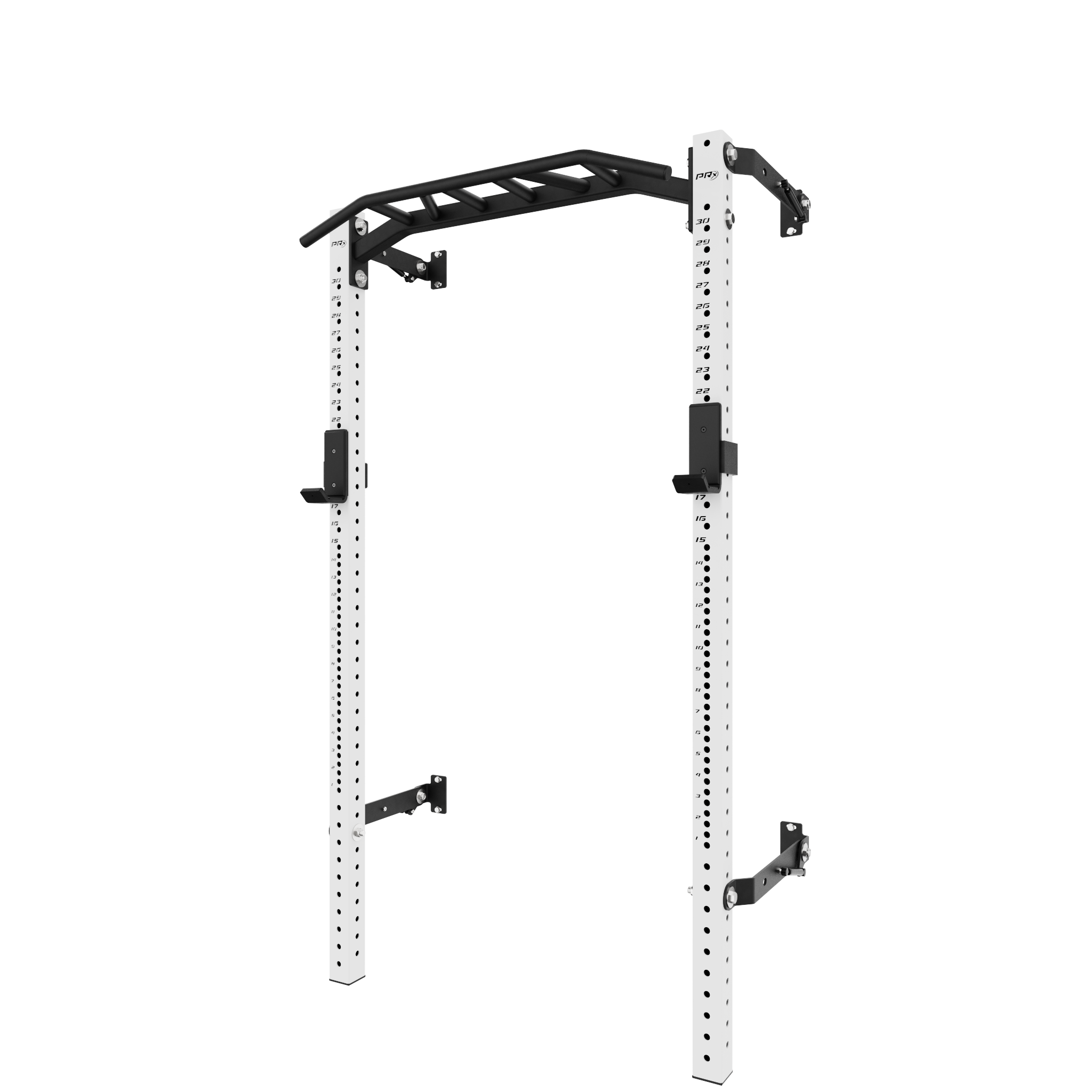

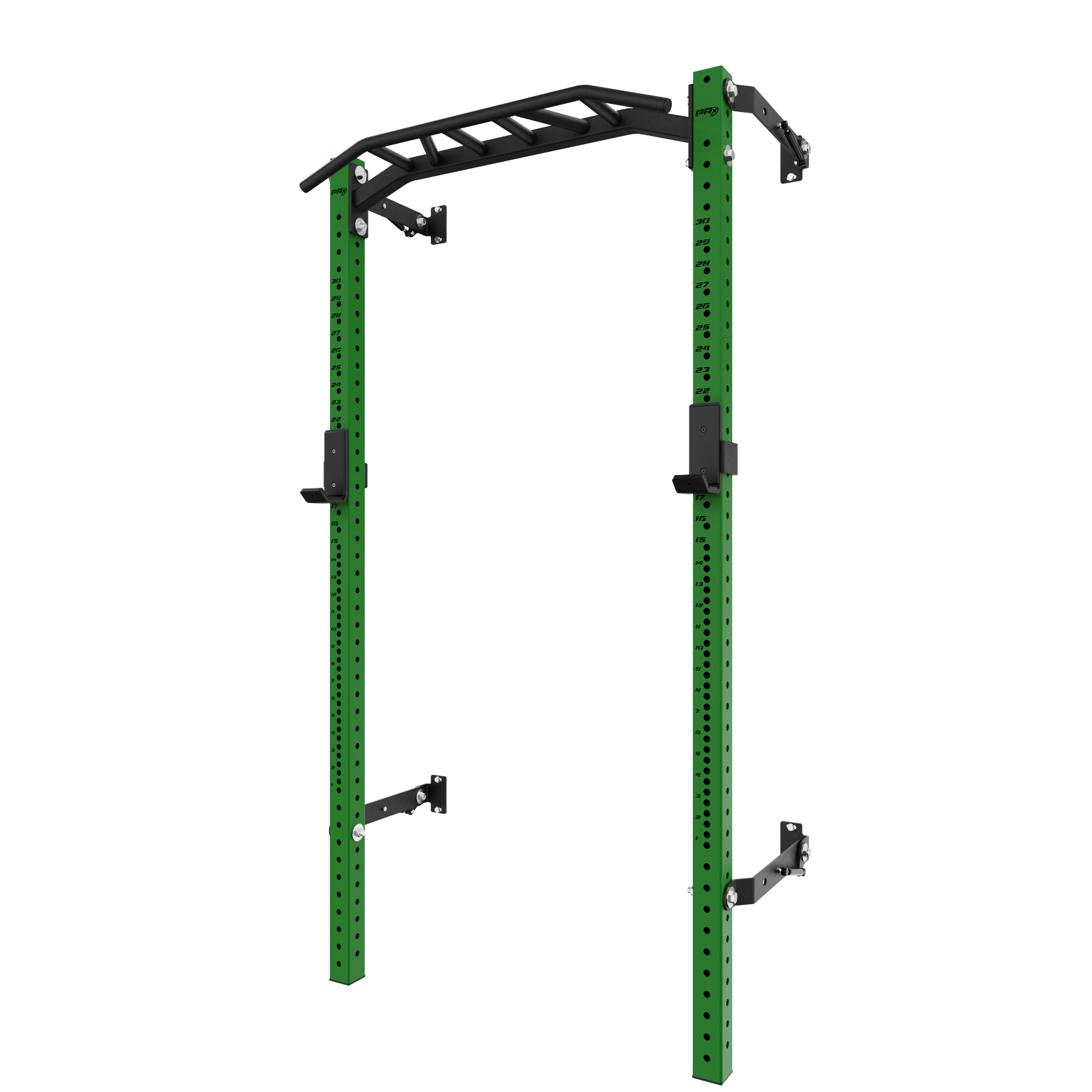

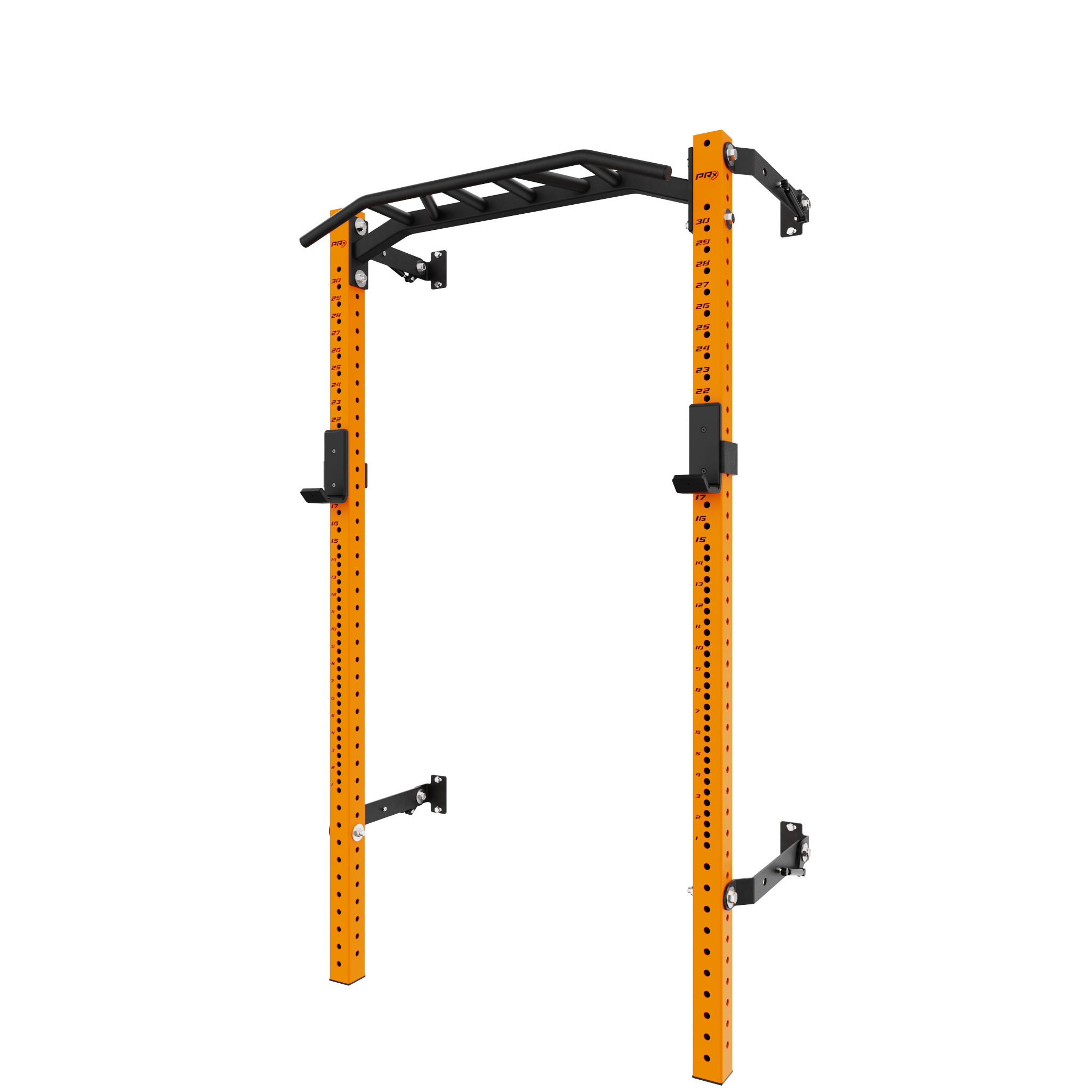

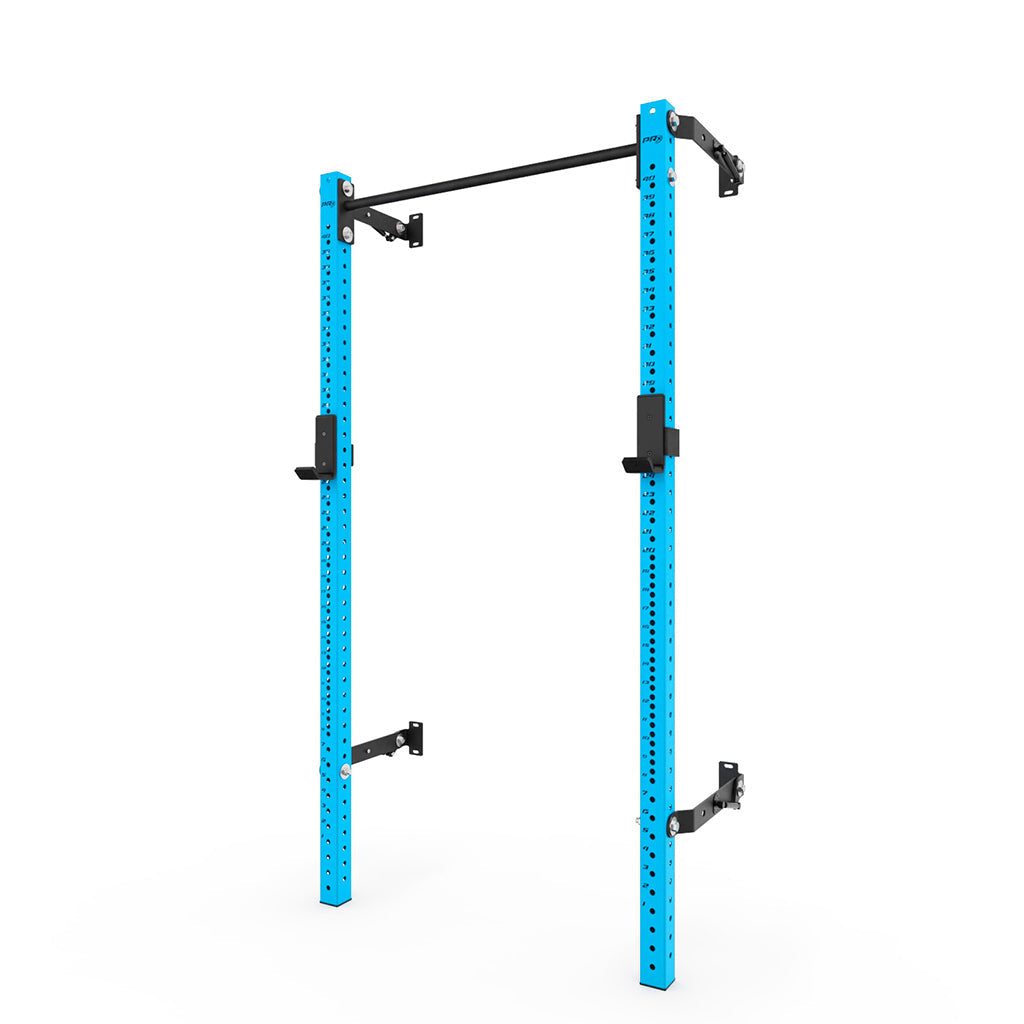

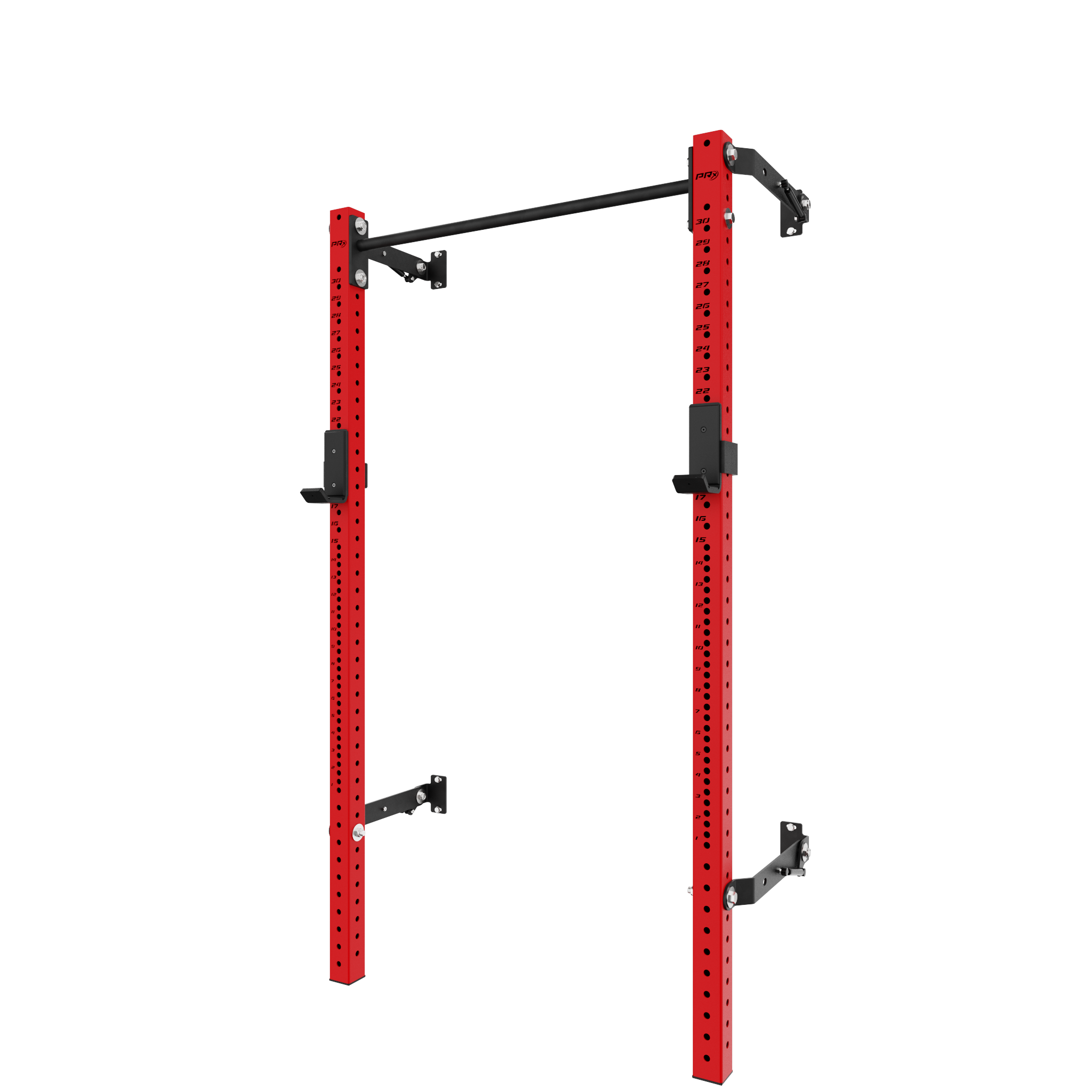

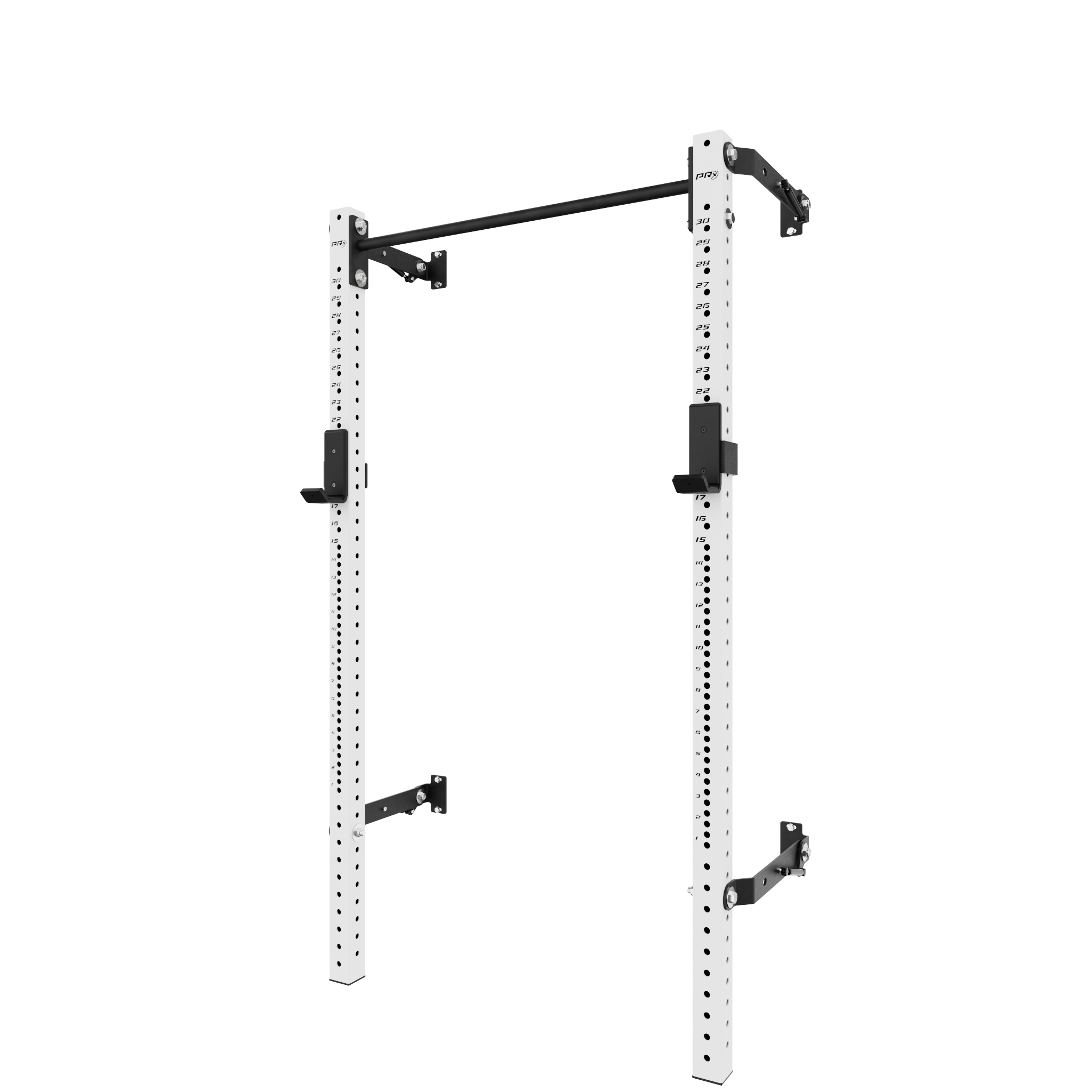

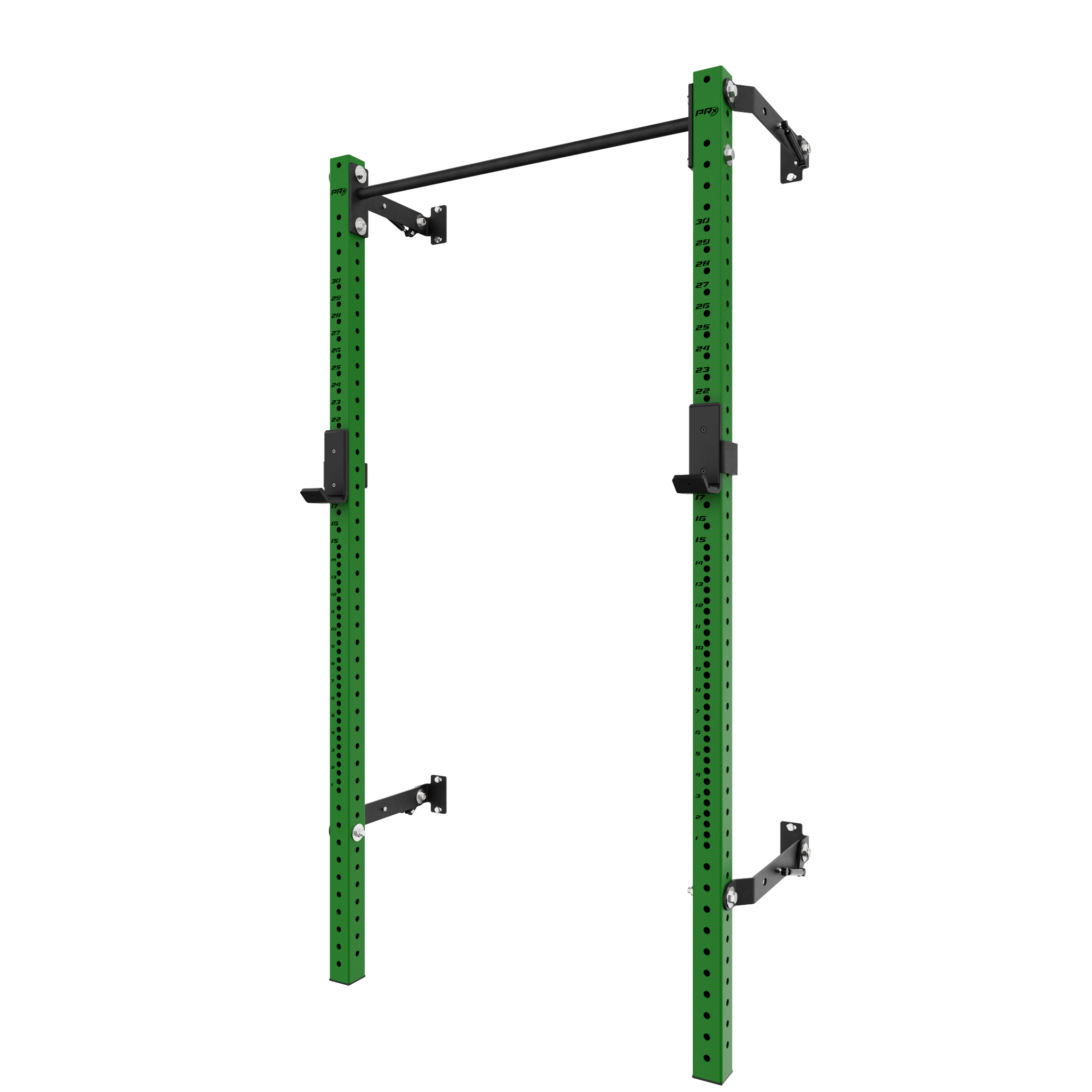

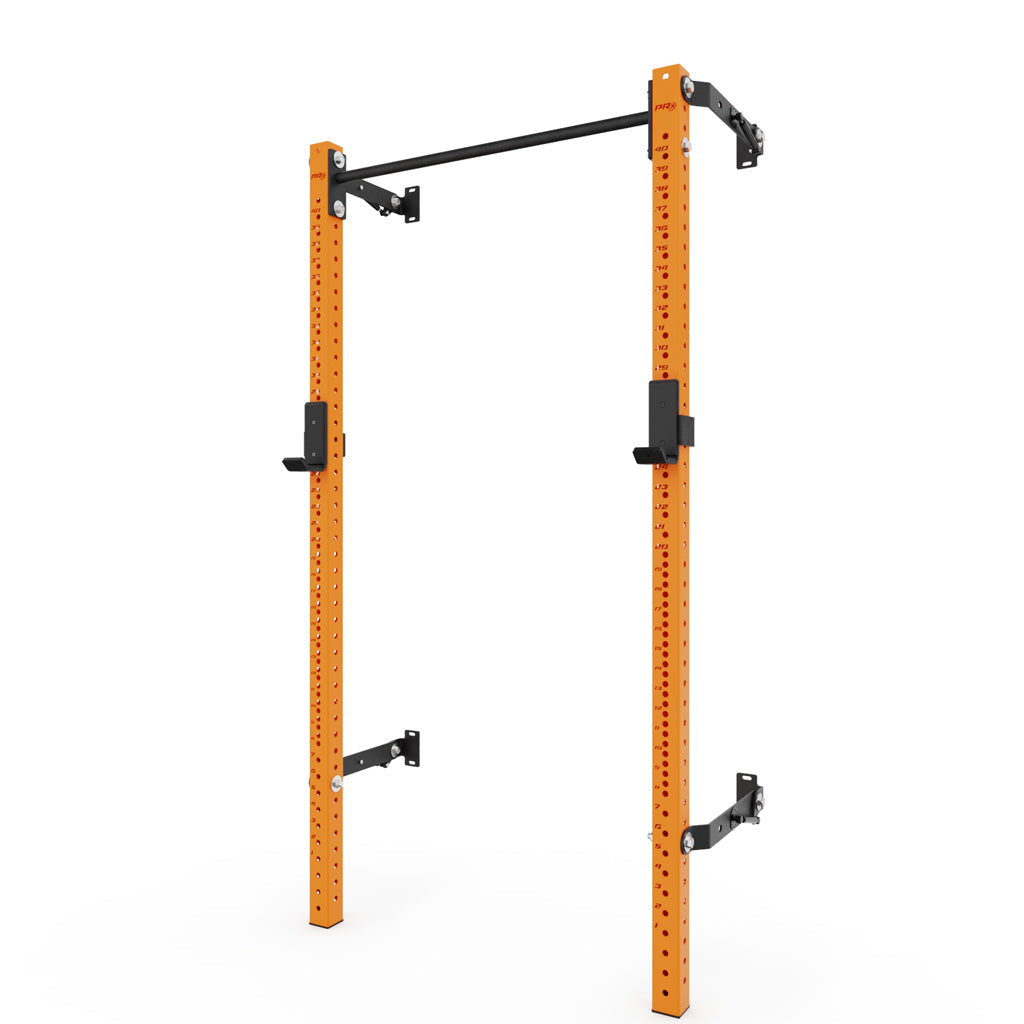

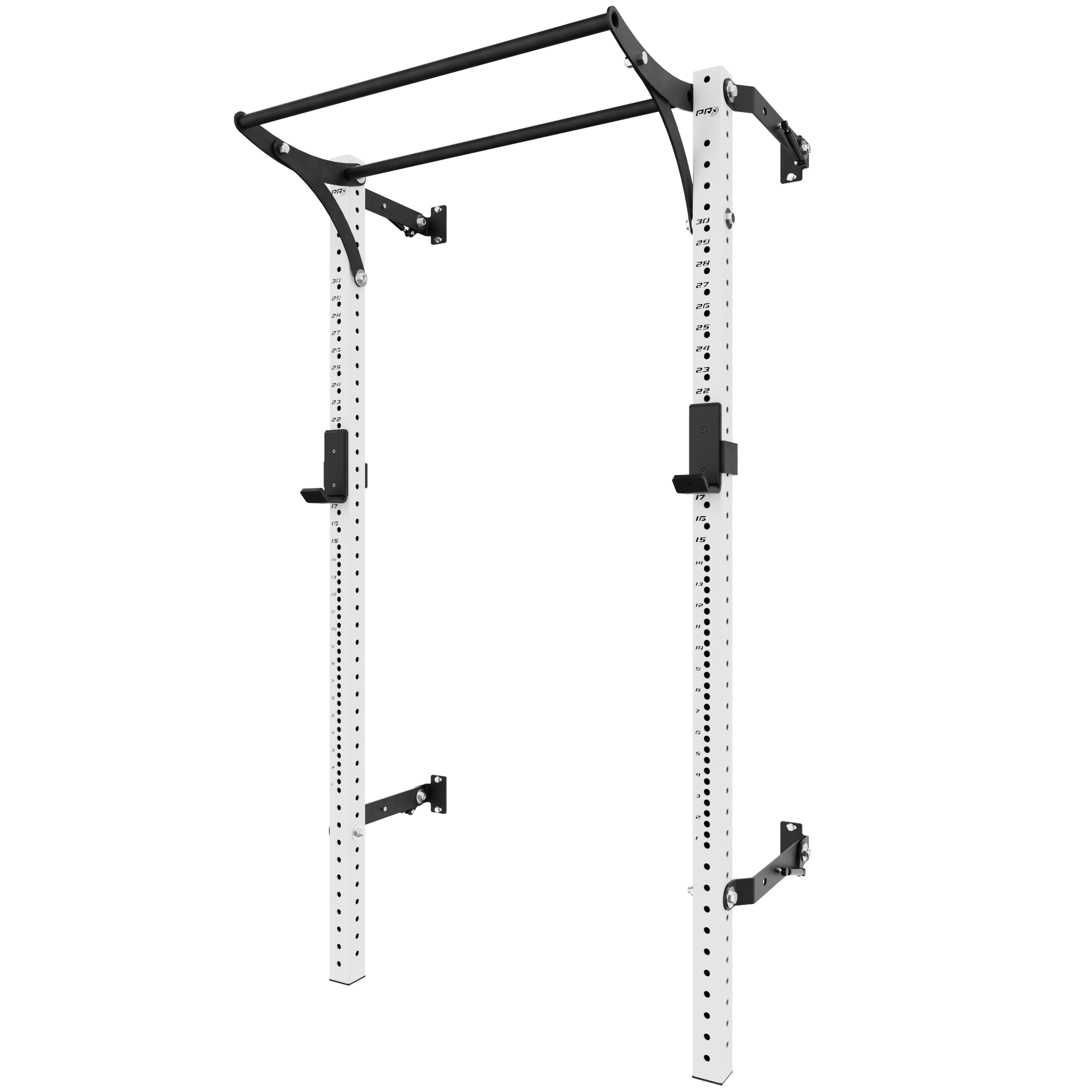

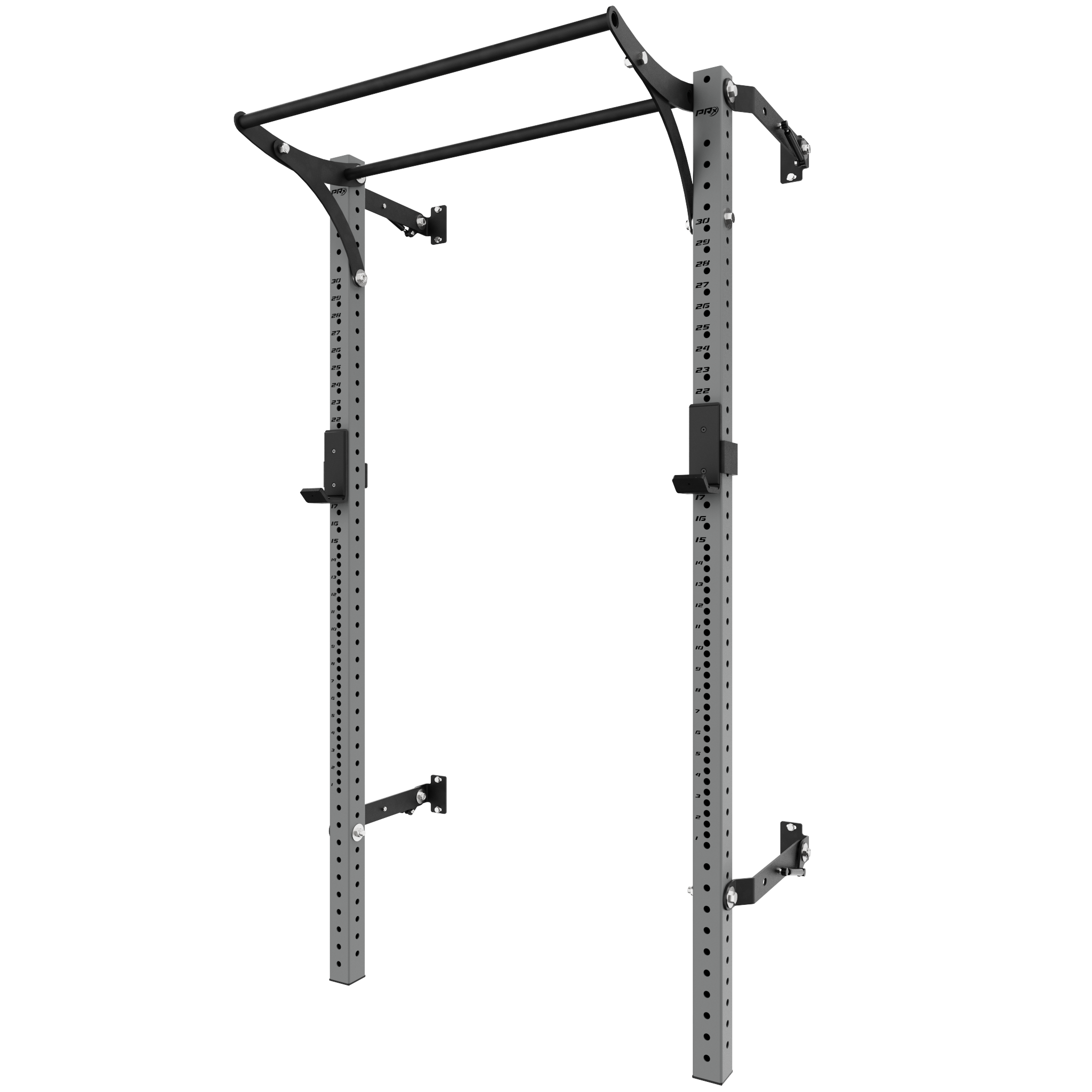

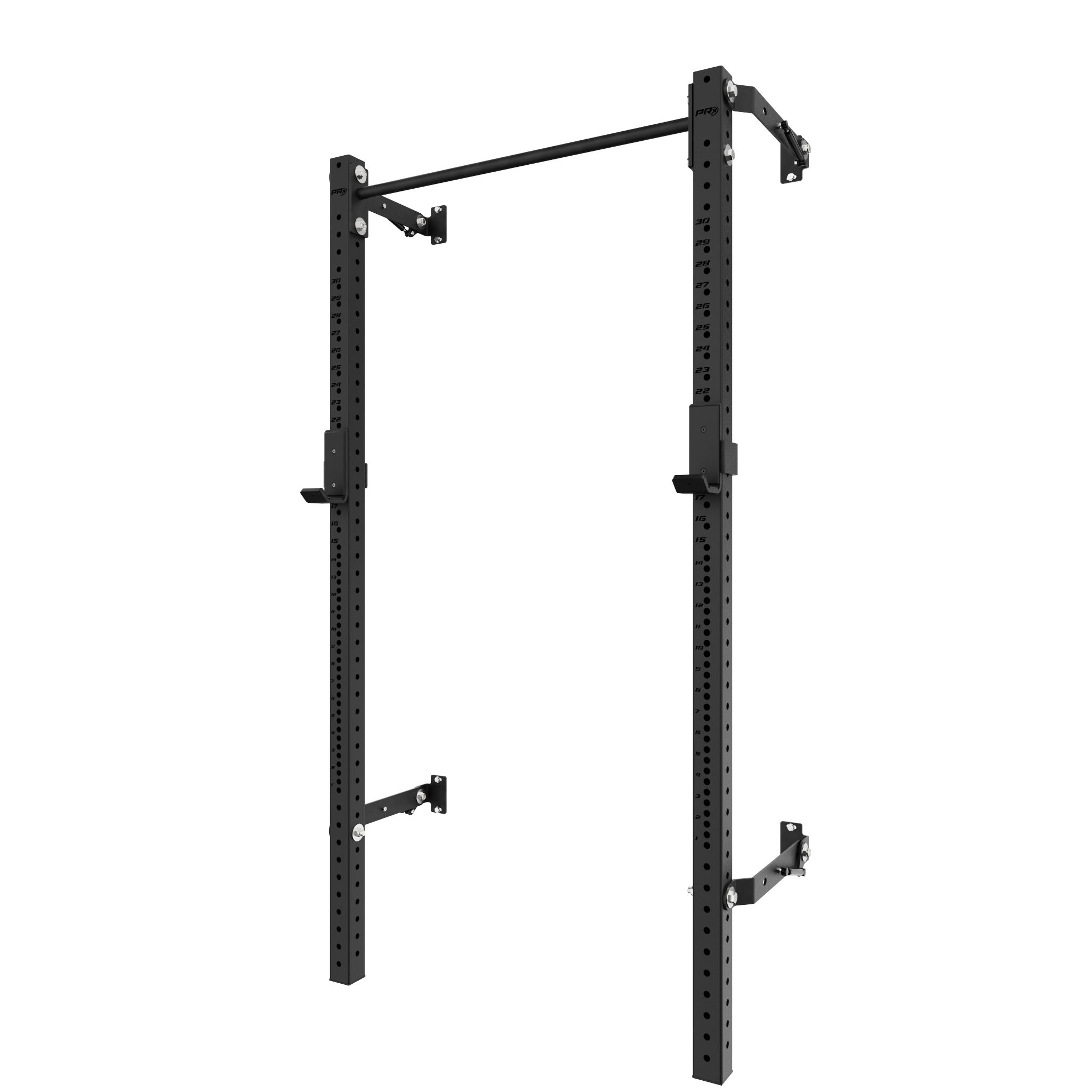

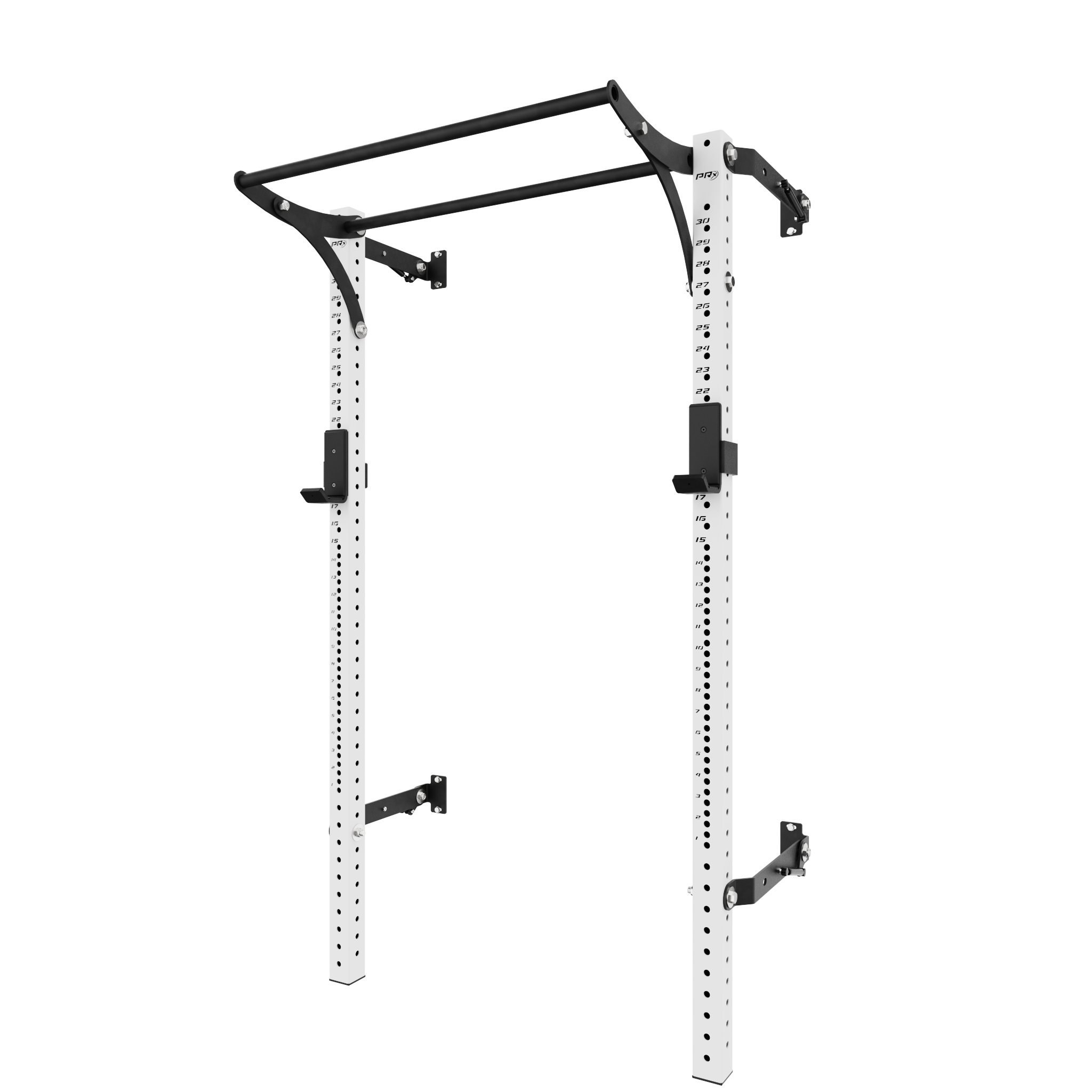

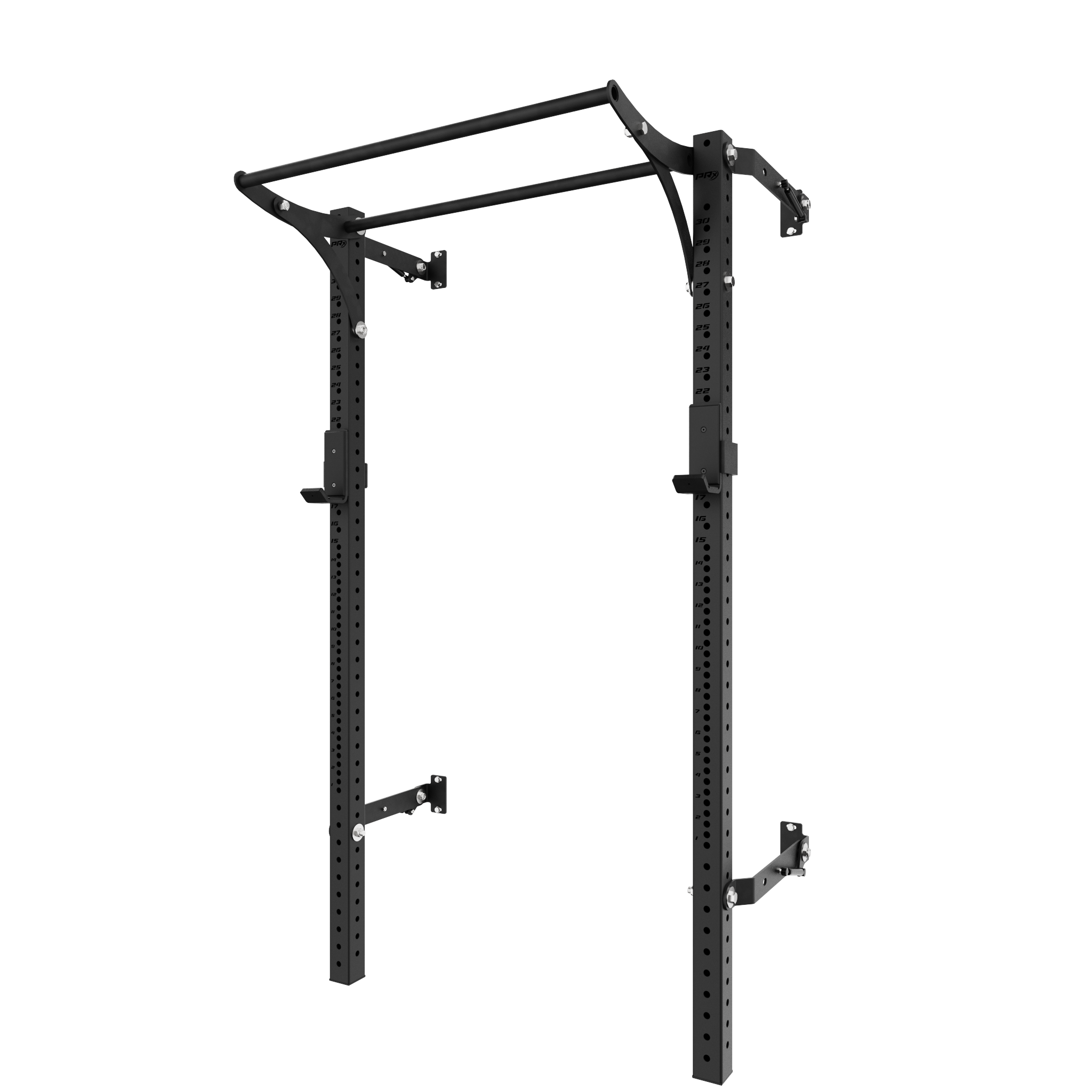

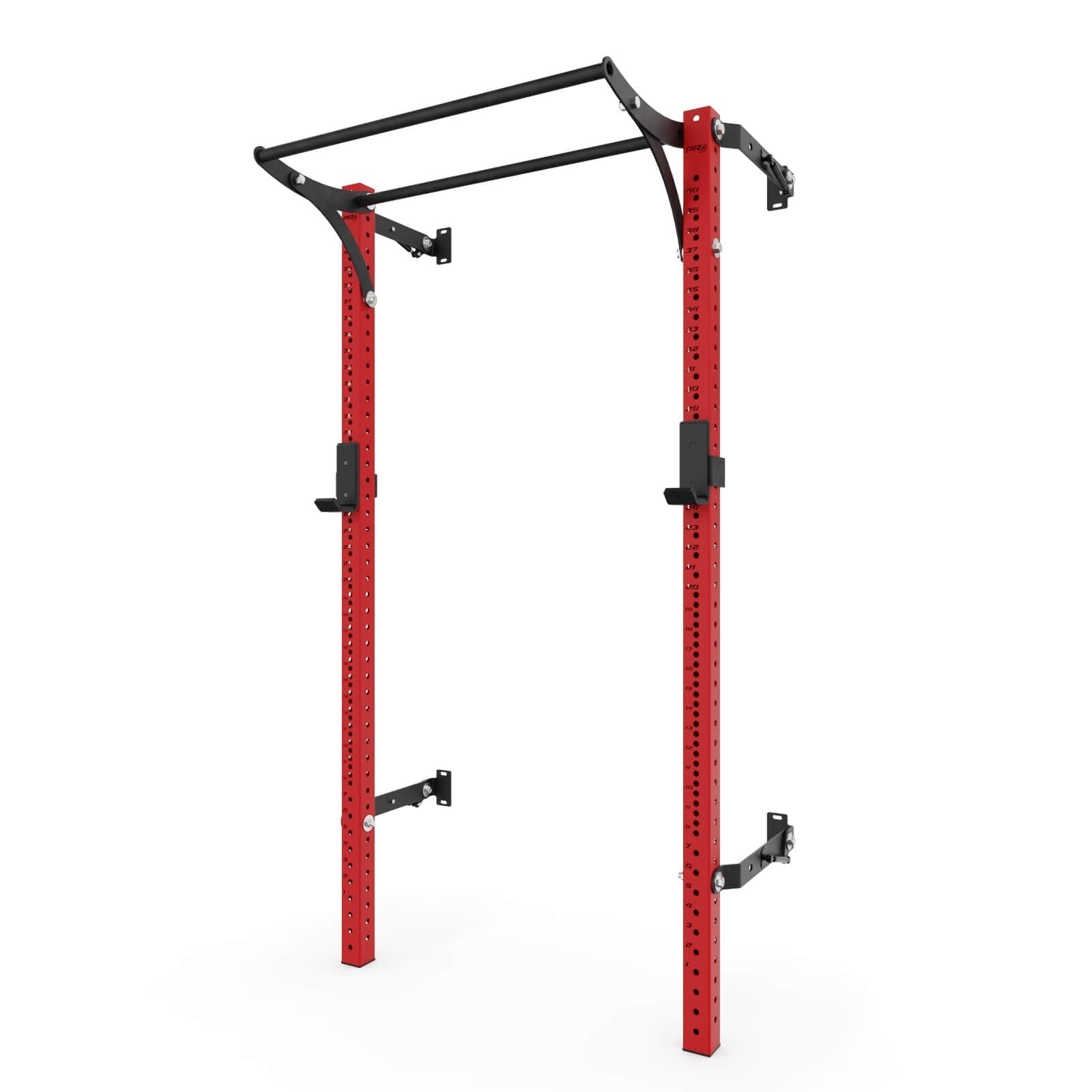

Profile® PRO Squat Rack with Pull-Up Bar
Description

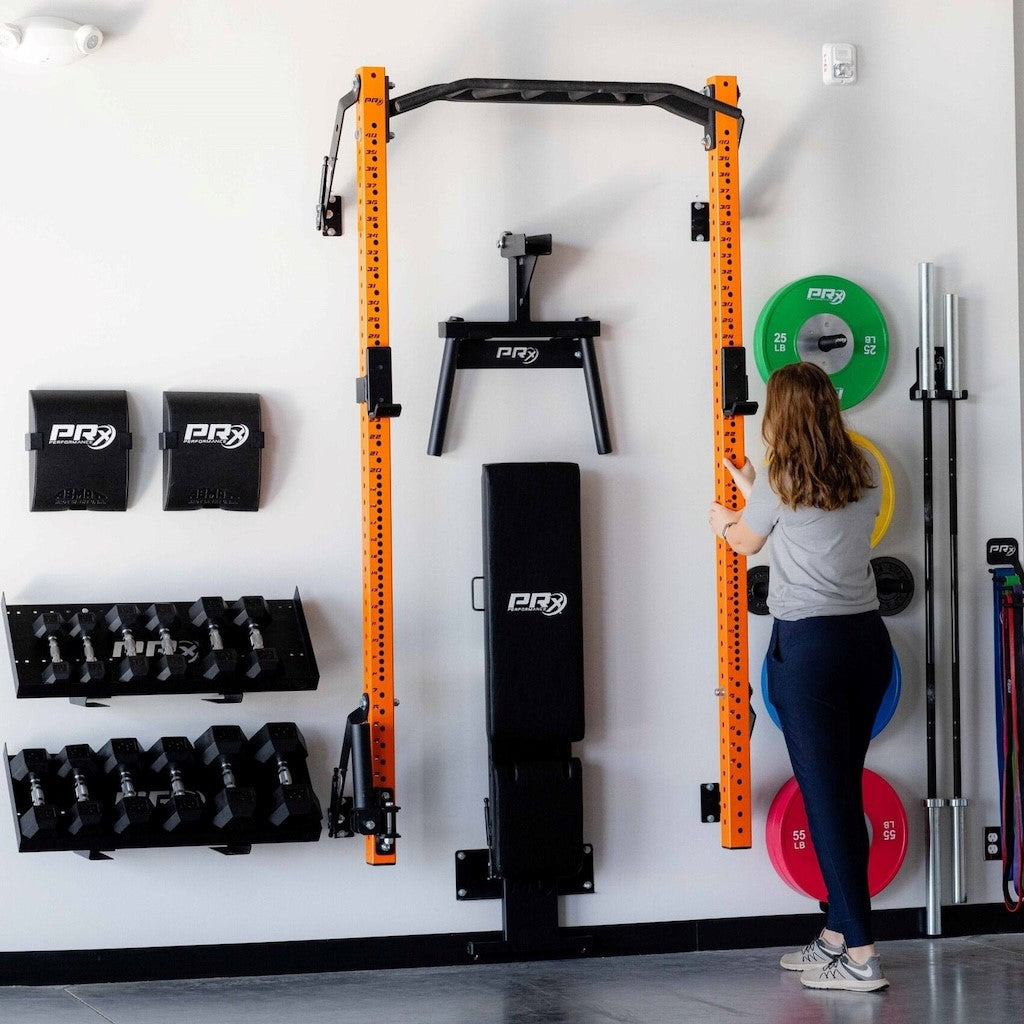

Prepare to meet the Profile® PRO Squat Rack with Pull-Up Bar – the fitness enthusiast's dream come true! This one-of-a-kind wall-mounted rack, protected by a patented design, is here to transform your workout area, whether it's nestled in your garage, snugly at home, or in a bustling commercial space. Say farewell to space limitations, and say hello to a healthier, fitter you.

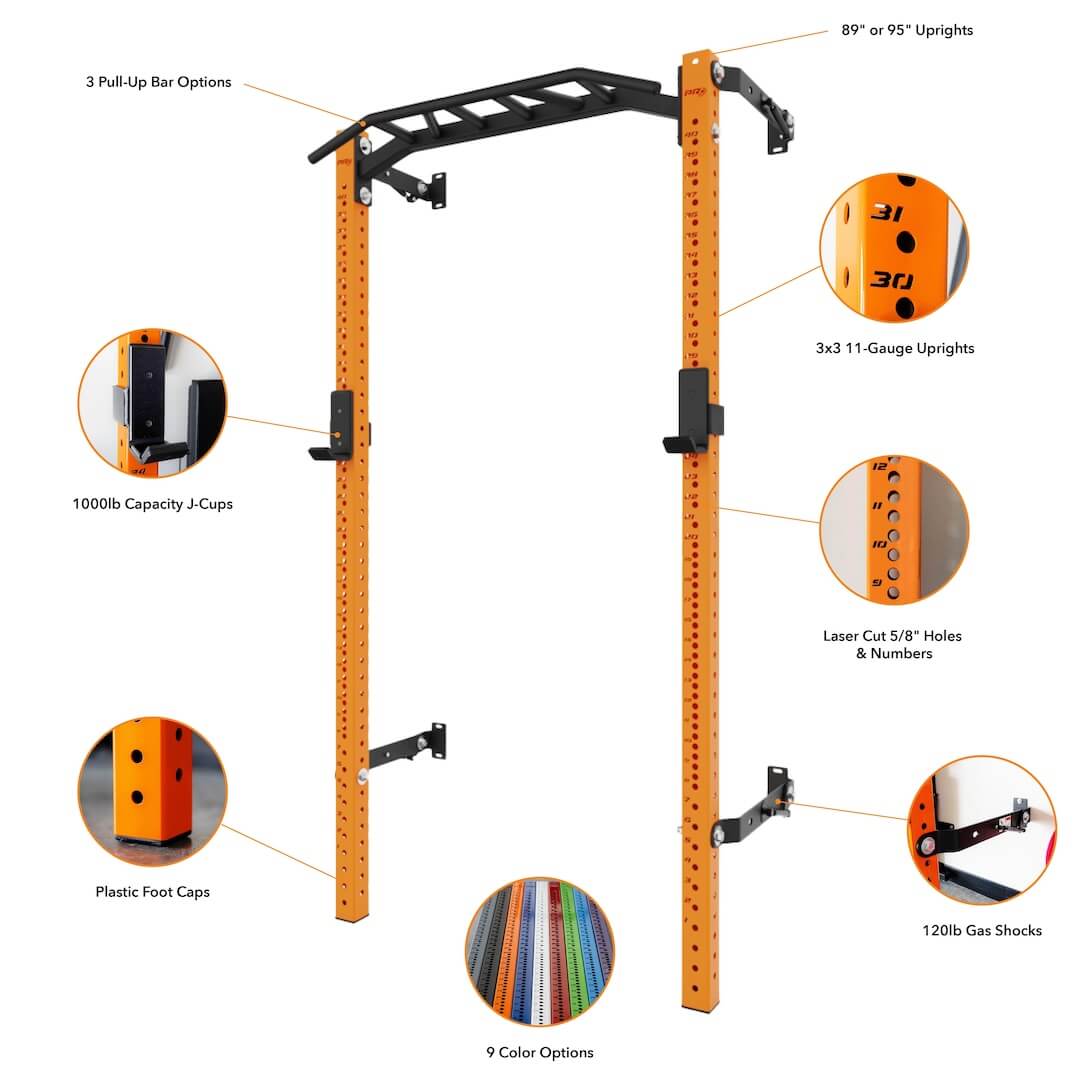

The Profile® PRO Squat Rack offers a range of fantastic features, including heavy-duty J-Cups, laser-cut numbers for precision, and a spectrum of 9 stunning colors to choose from. What's more, it proudly carries the "Made in the USA" label, guaranteeing top-tier craftsmanship.
Specs
The Rack
| Uprights | (2) 11-gauge 3x3 steel uprights 89" or 95" height options 9 colors |
| Total Rack Width | 53" |
| Outside of Uprights Width | 48" |
| Hole Size | 5/8" |
| Hole Spacing | Front: 2" (1" in bench area) Side: 2" |

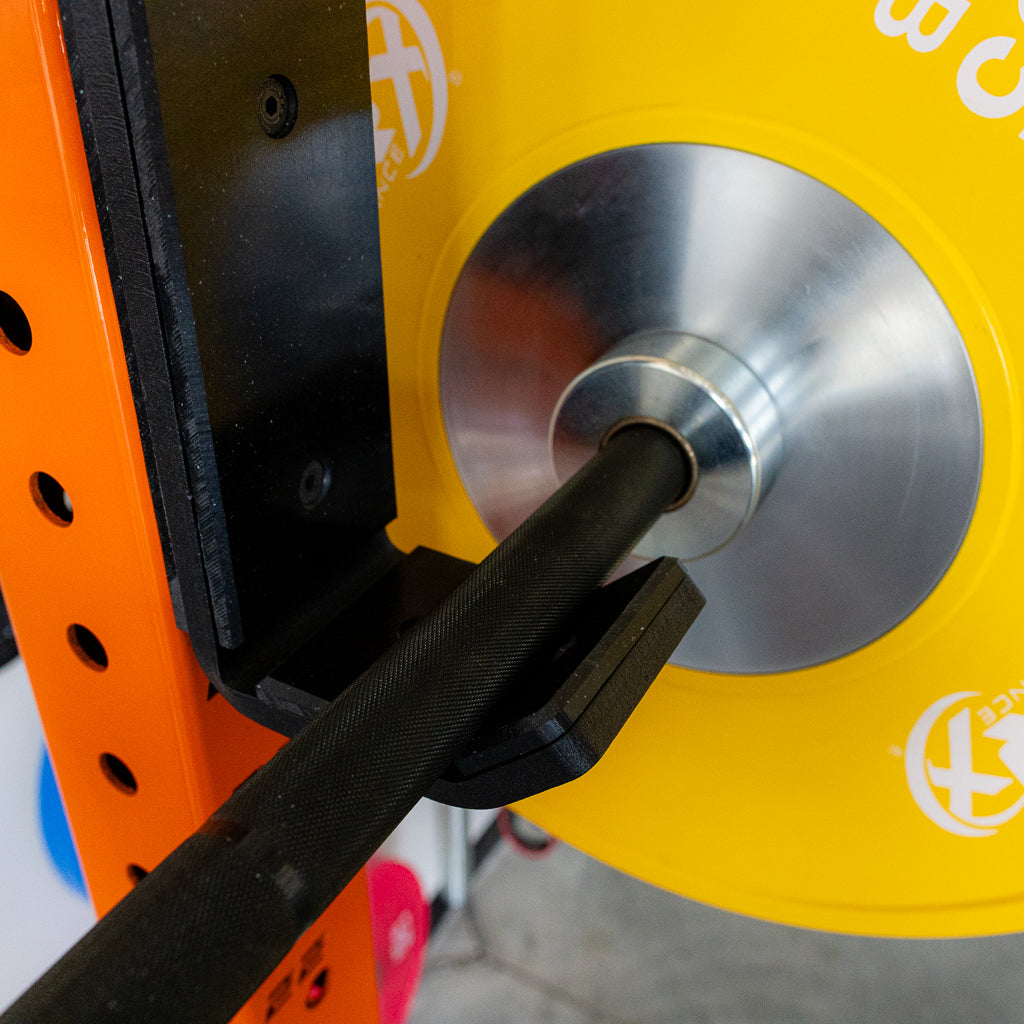

| J-Cups | (2) UHMW covered J-cups included |

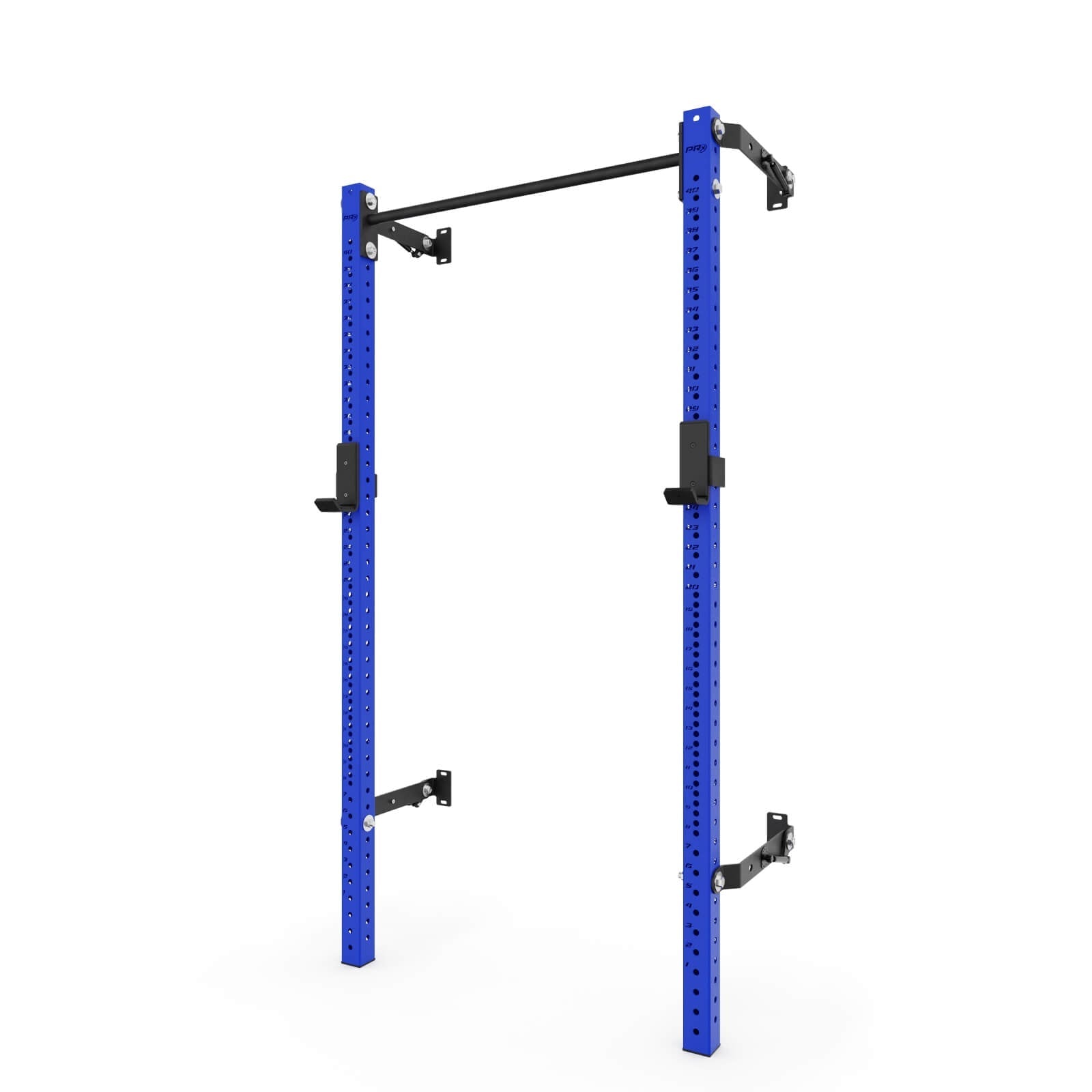

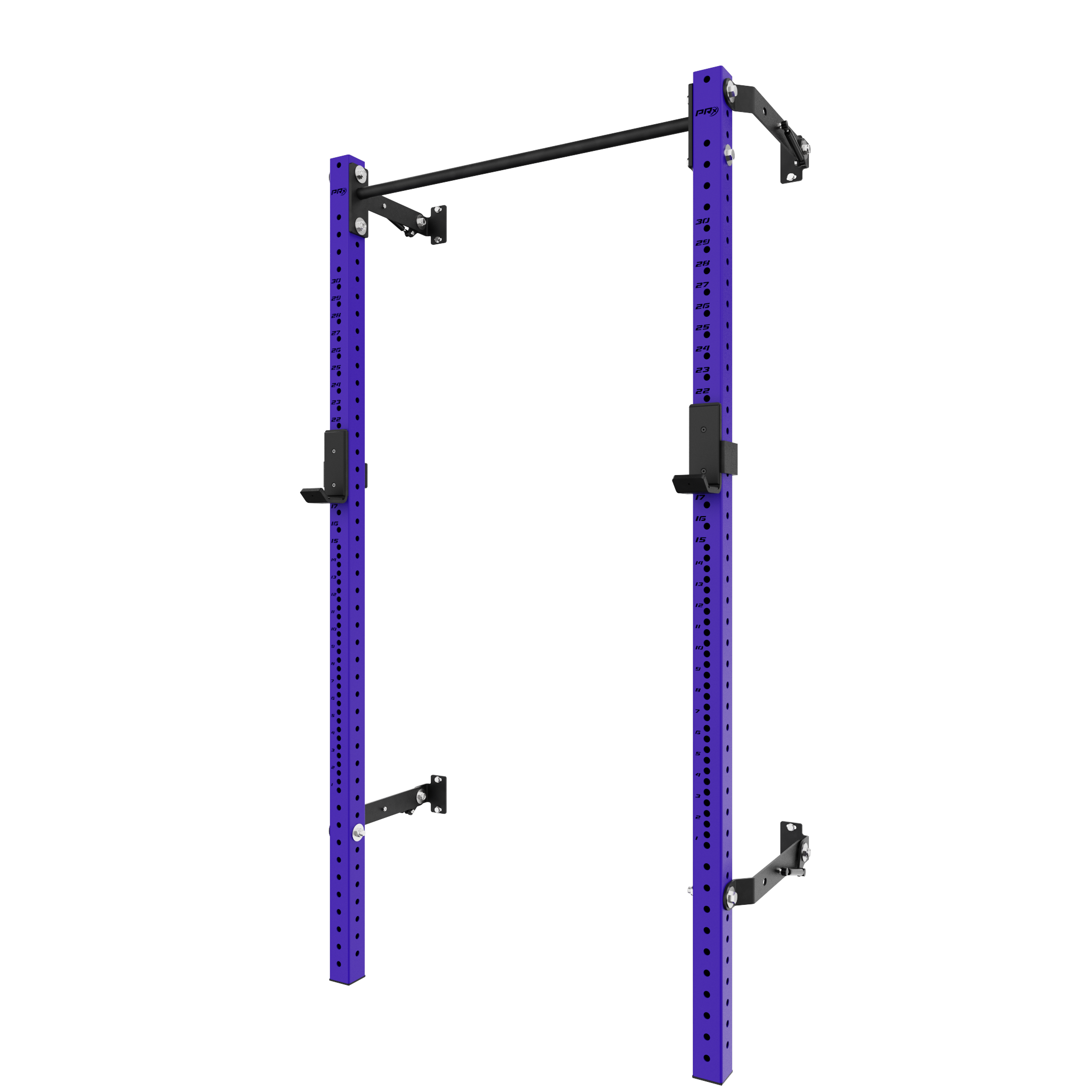

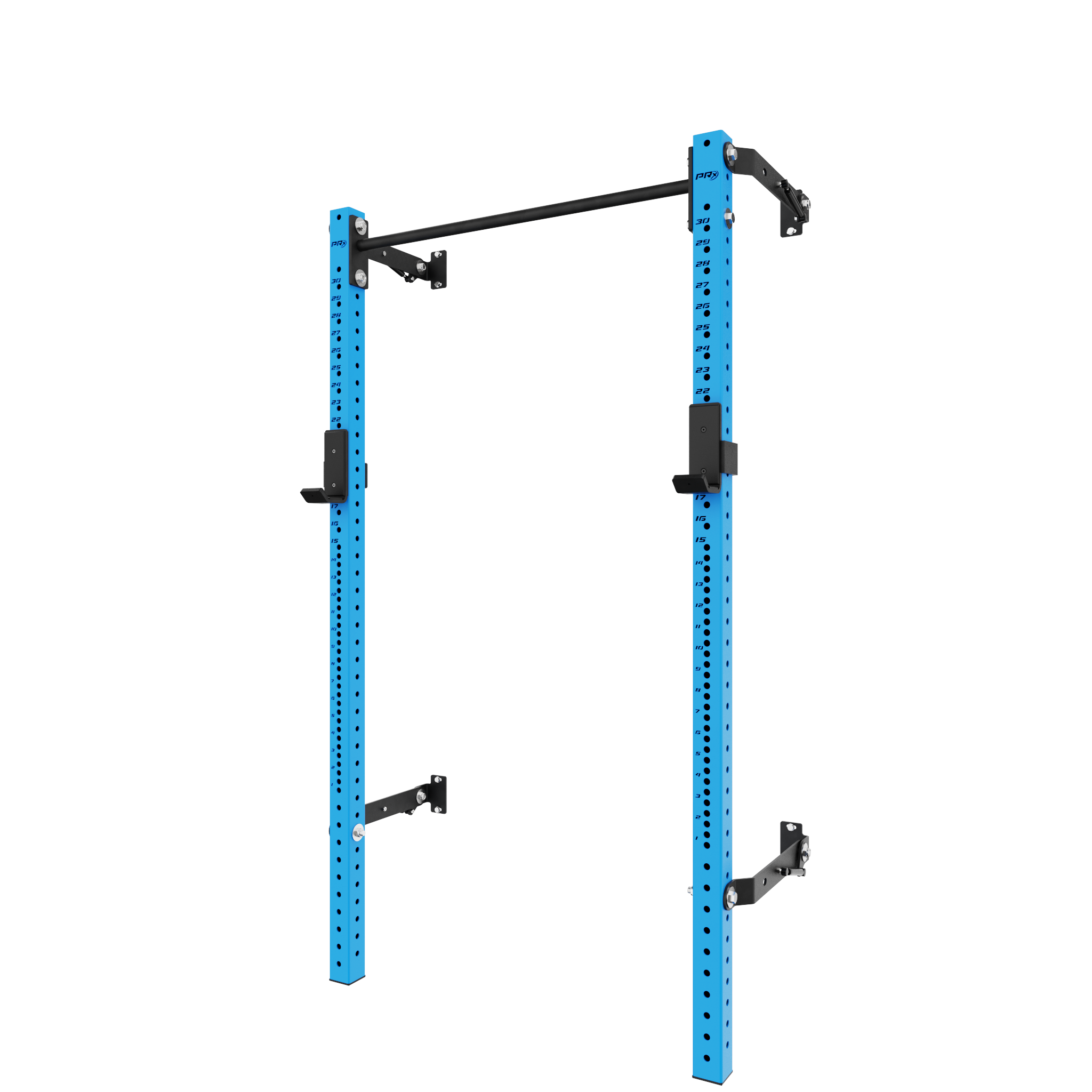

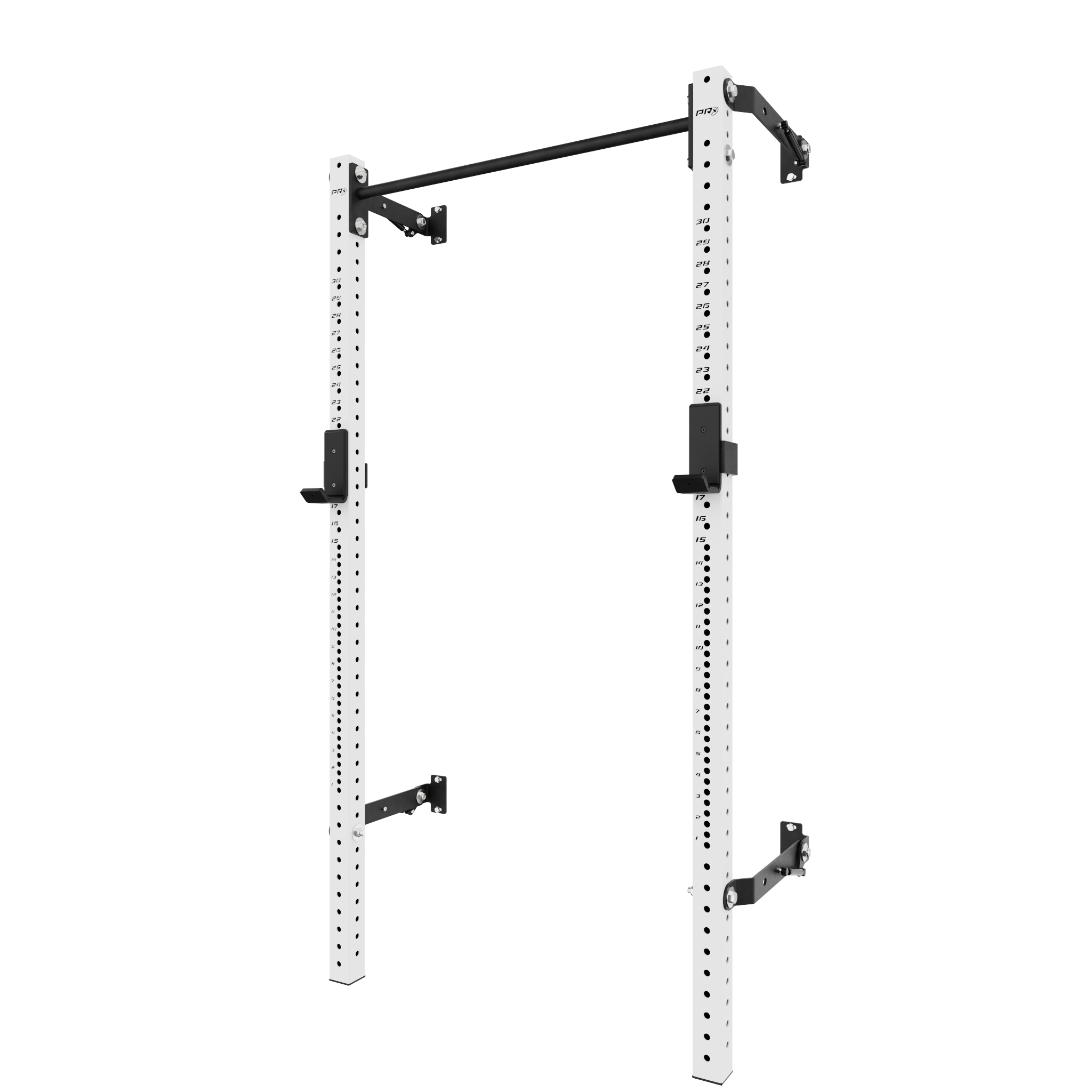

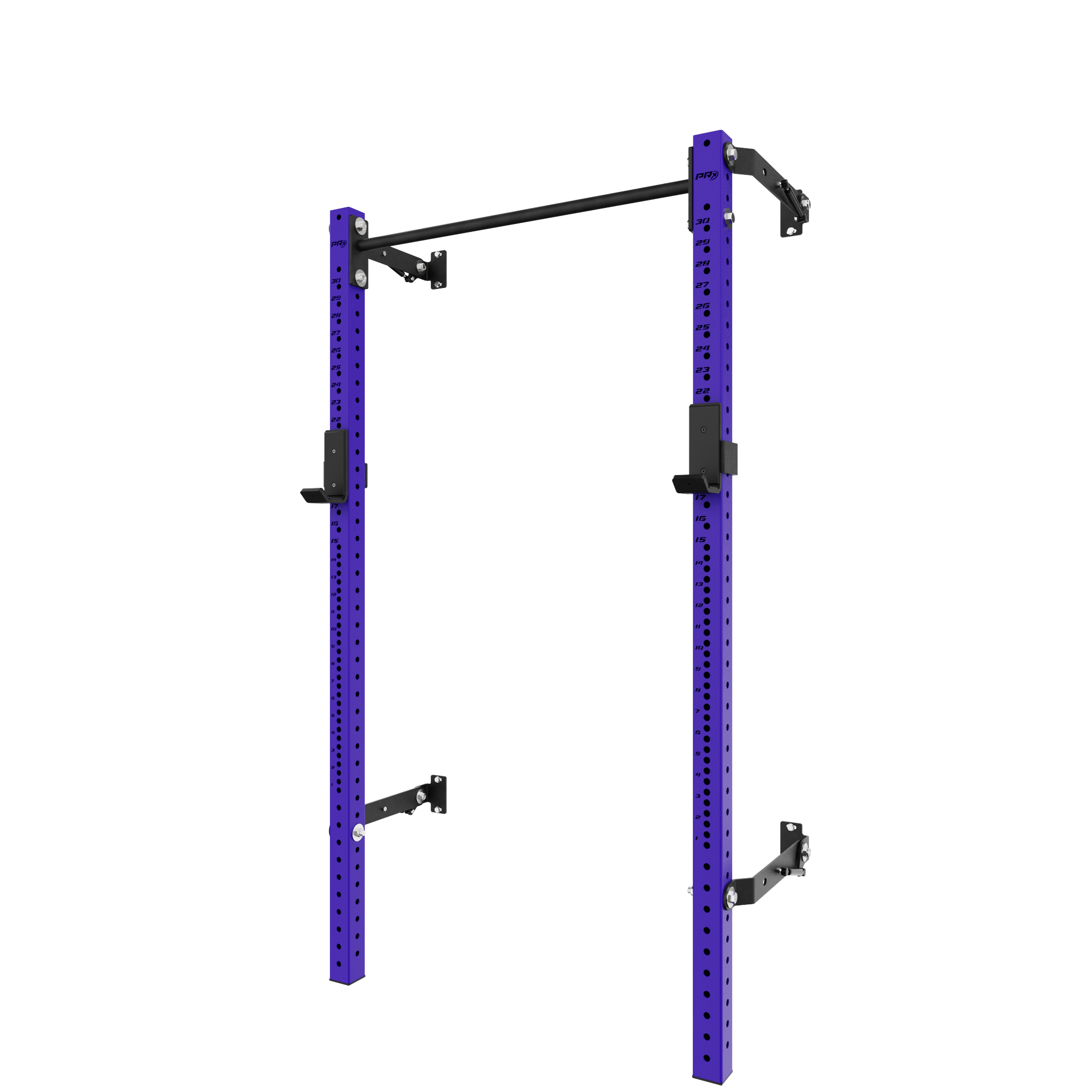

| Pull-Up Bars | 42" total length 1.25" bar diameter Tuff Coat powder coat |
| Equipment | All wall mounting brackets & hardware for wood stud installation included |
| Capacity | 1,000lb |

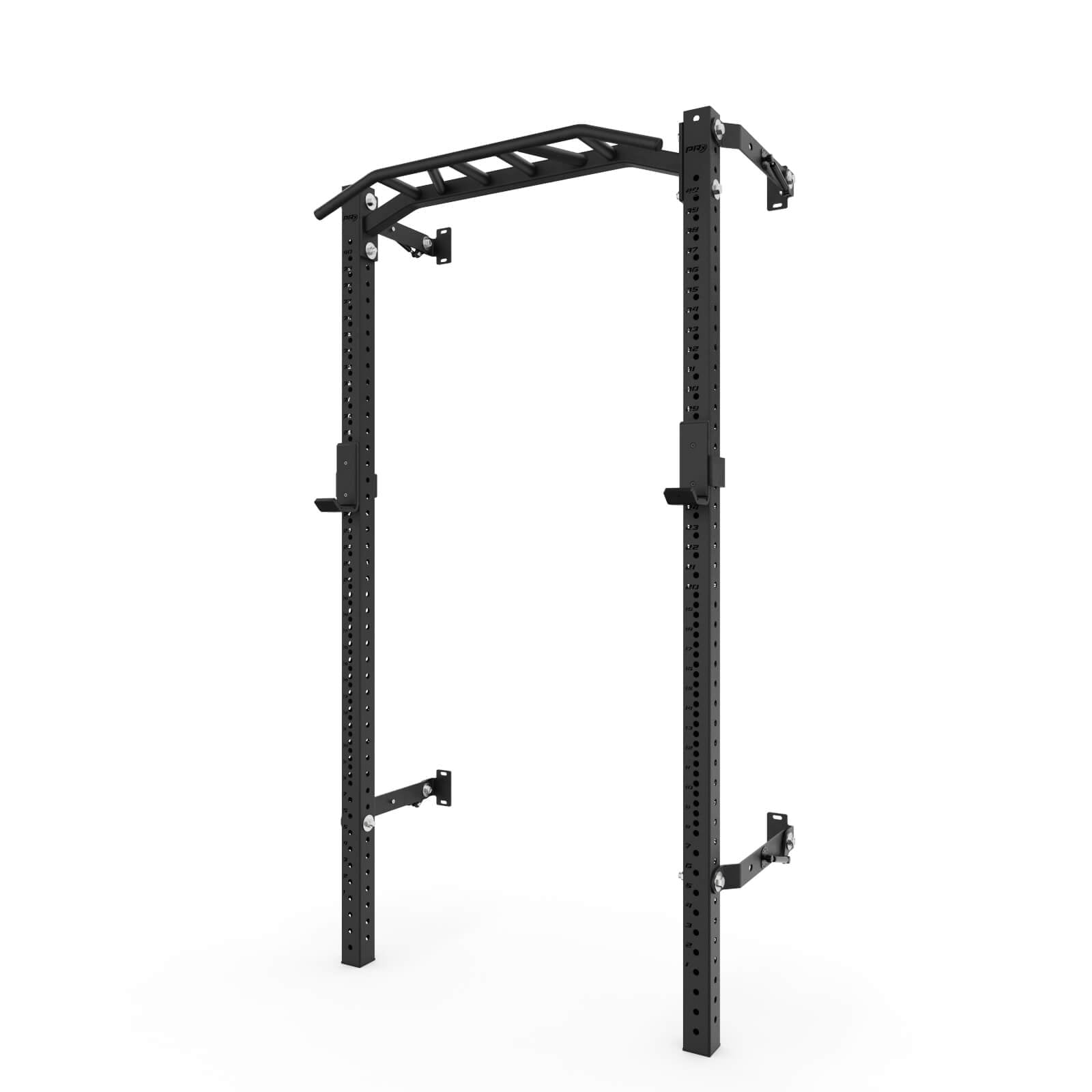

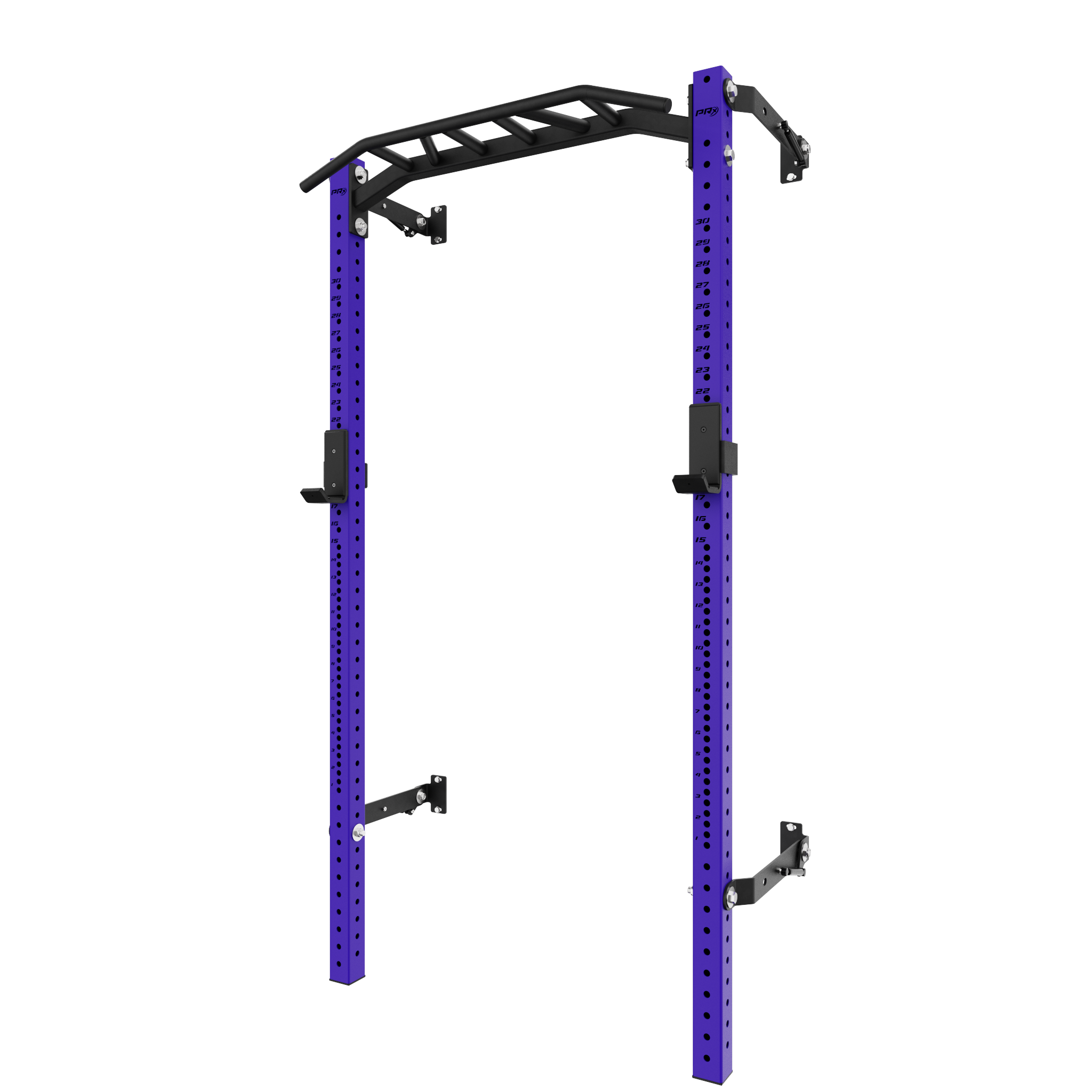

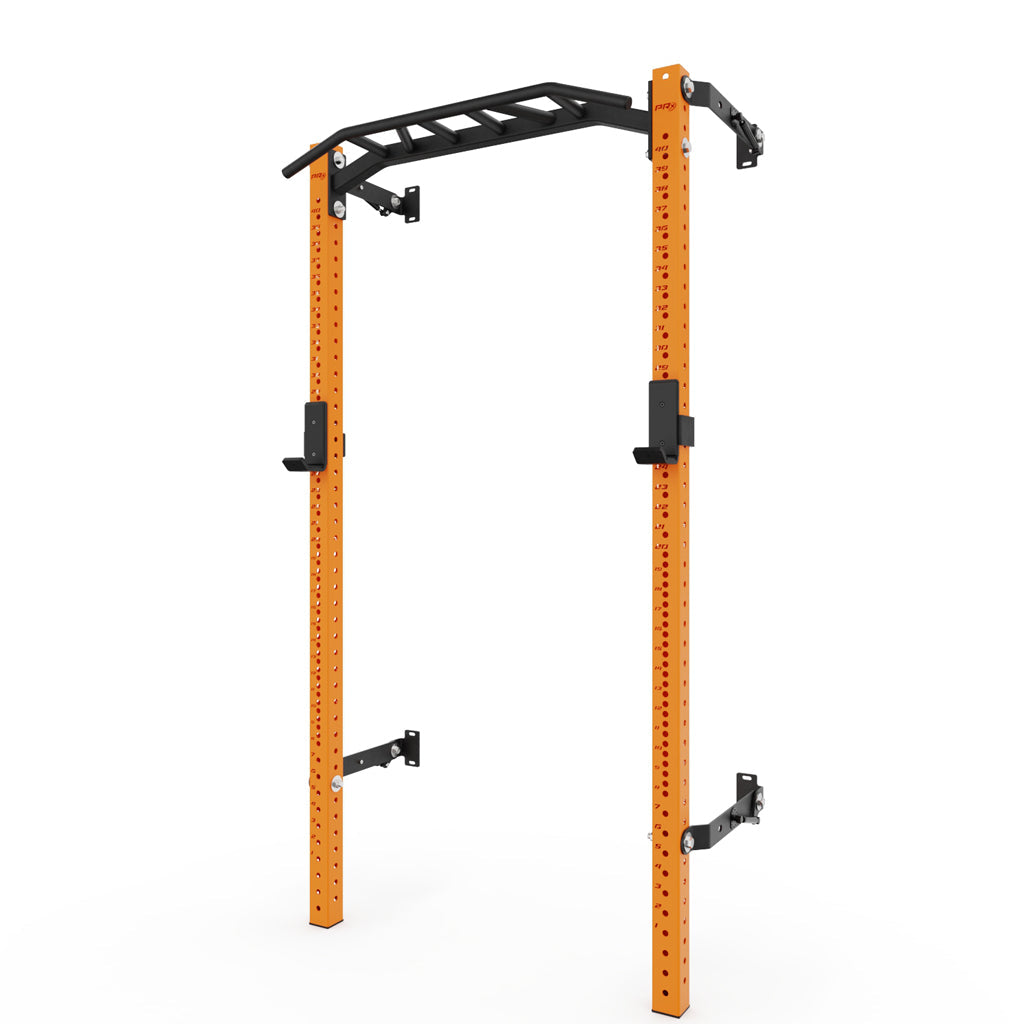

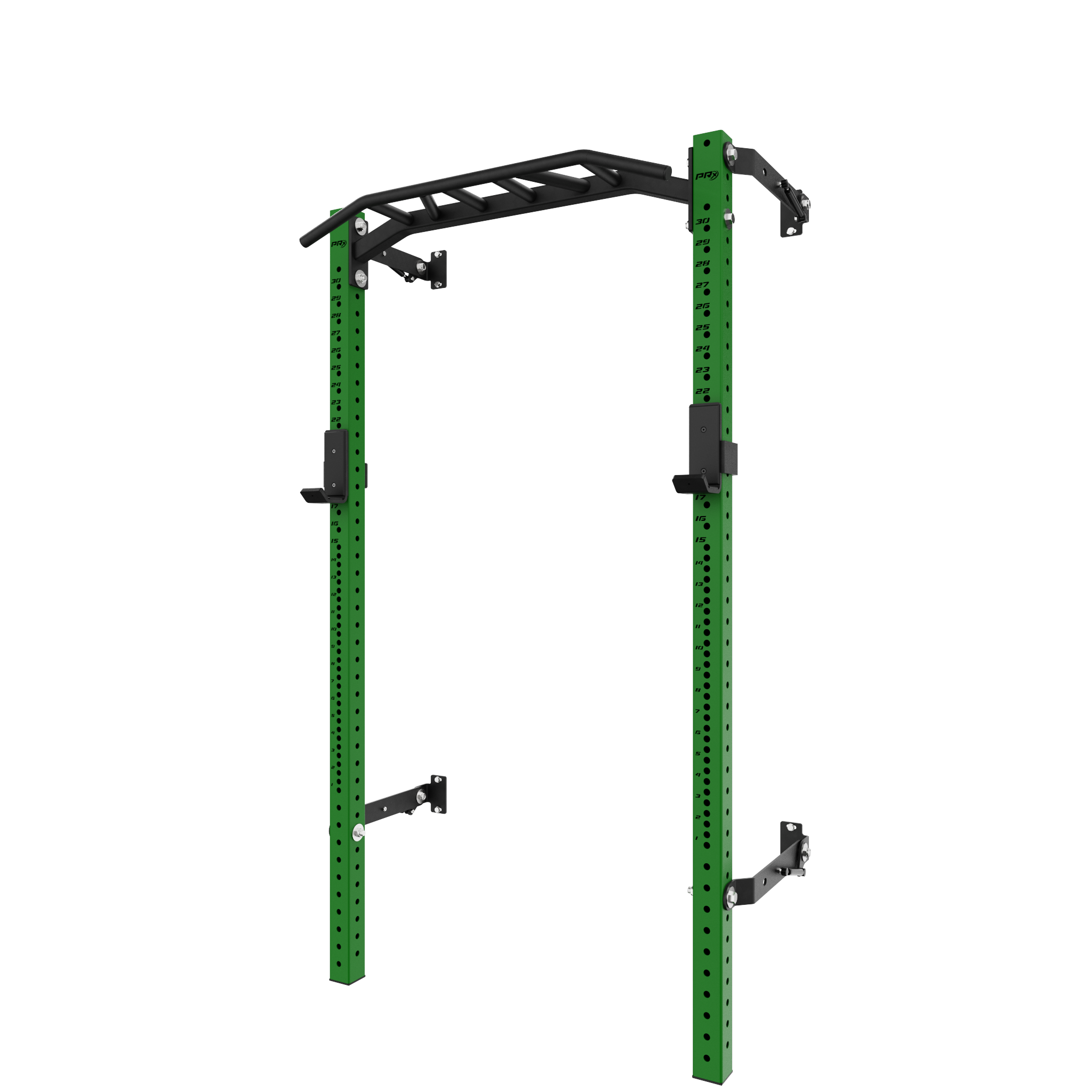

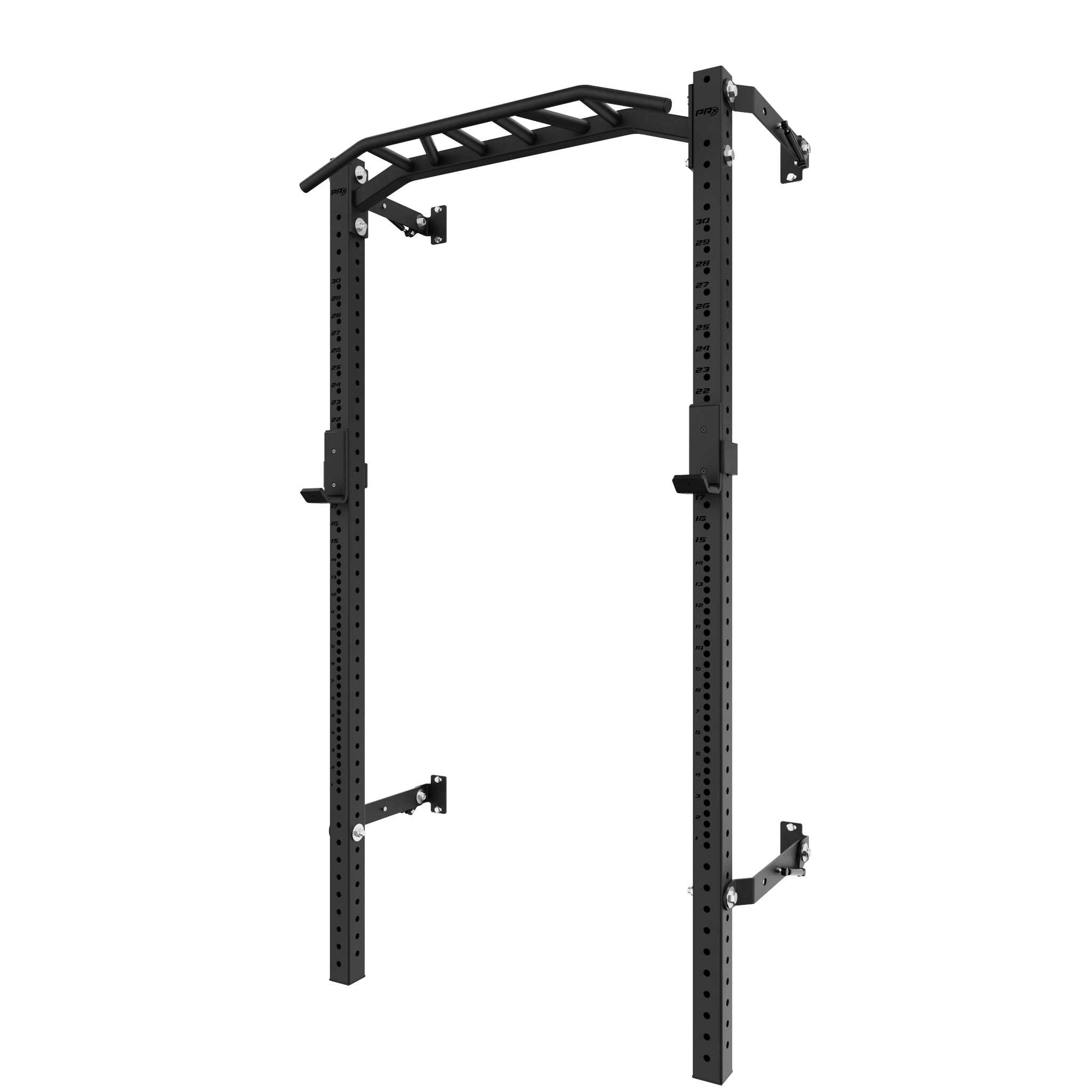

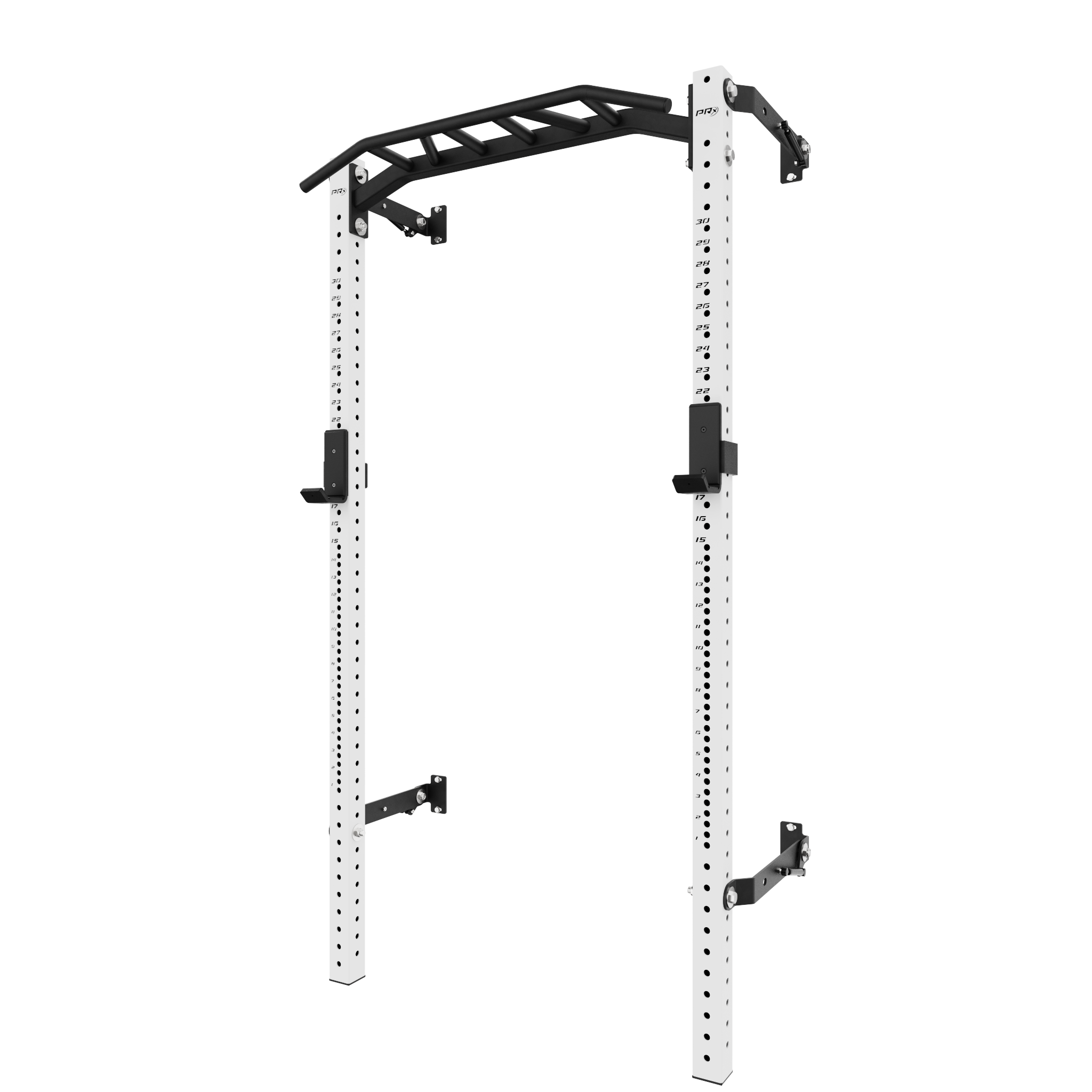

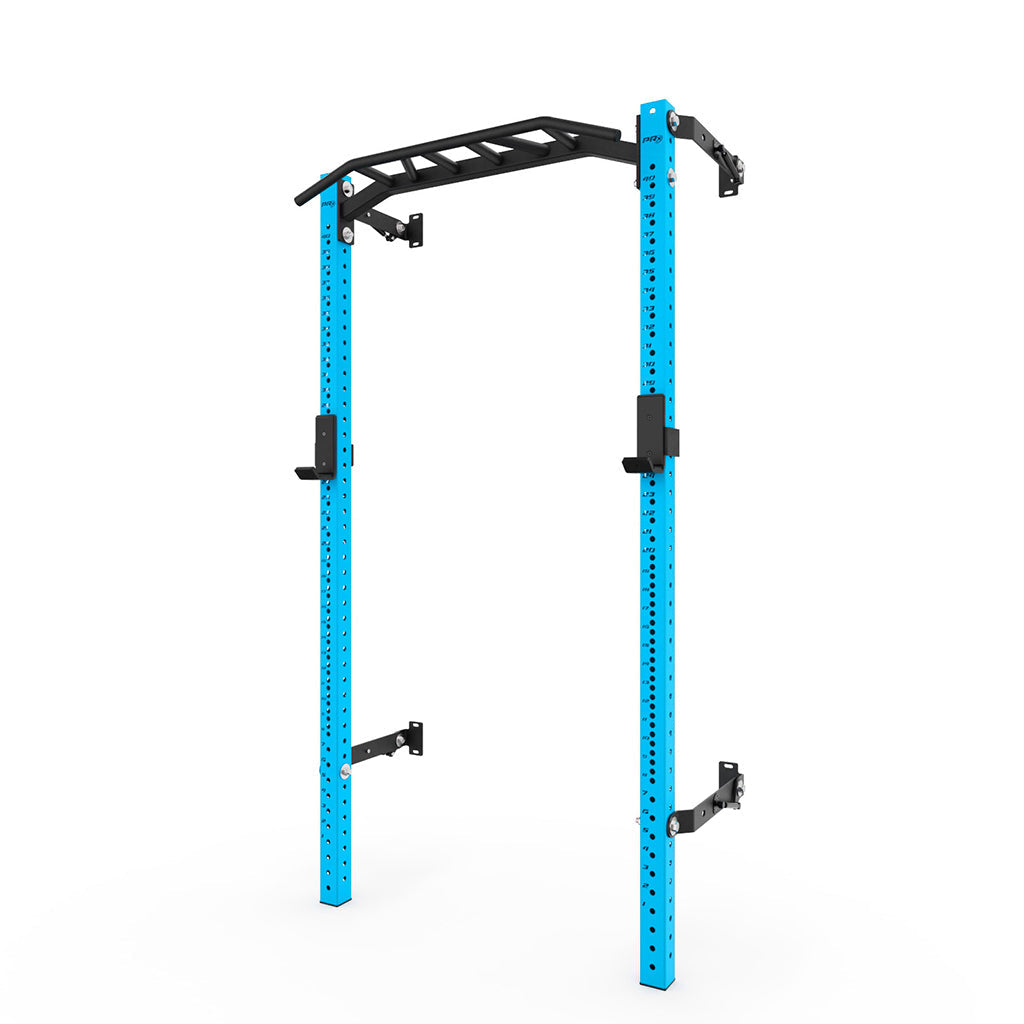

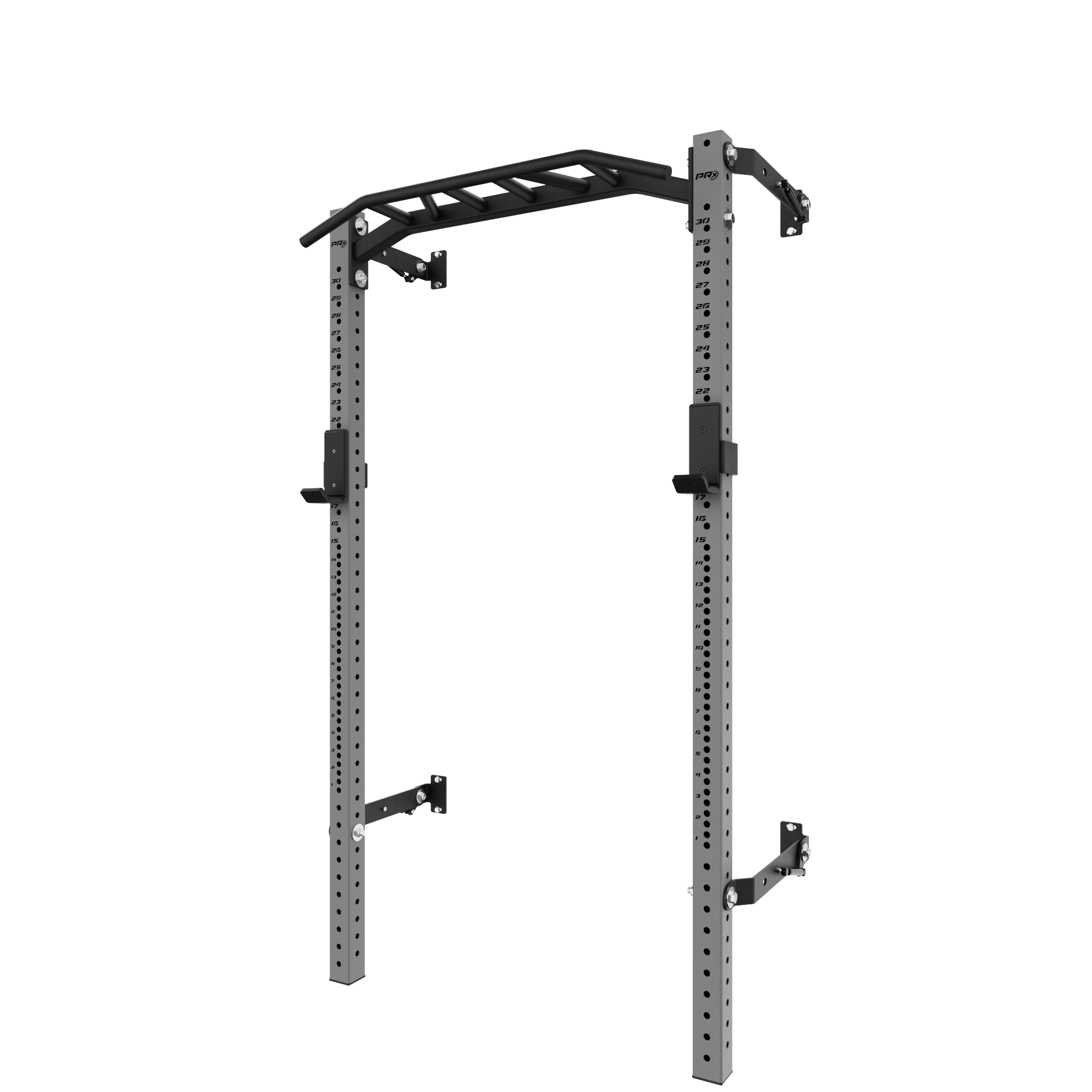

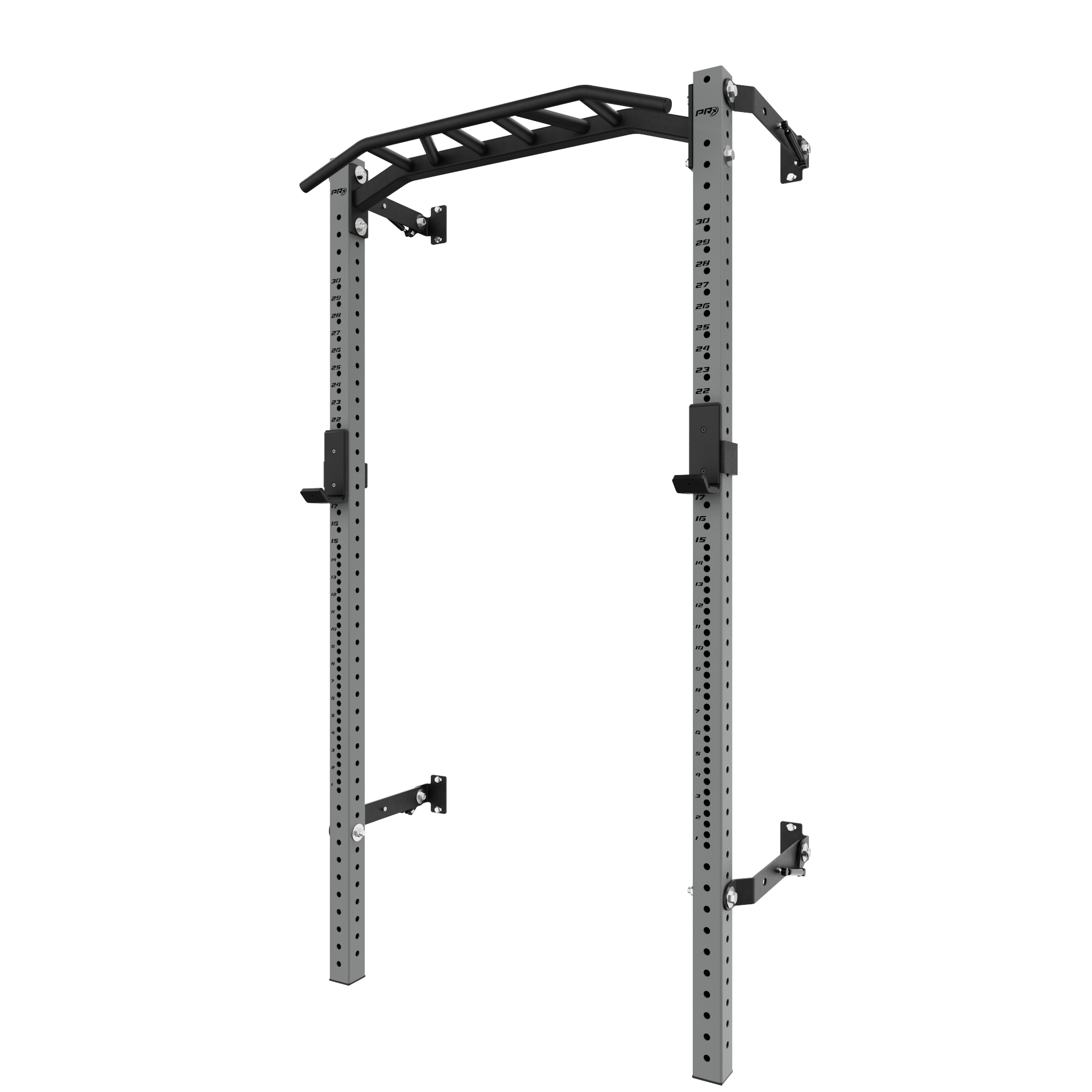

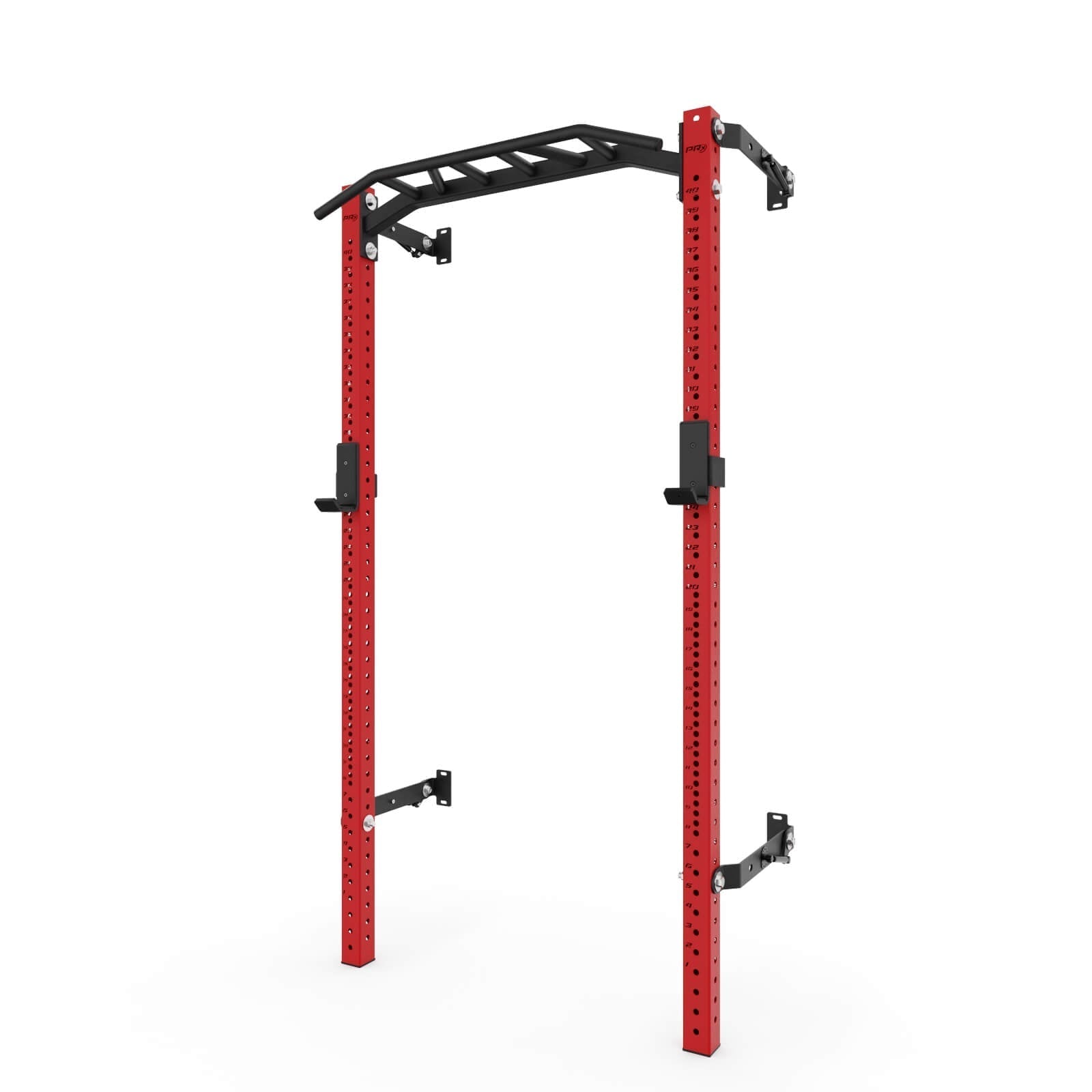

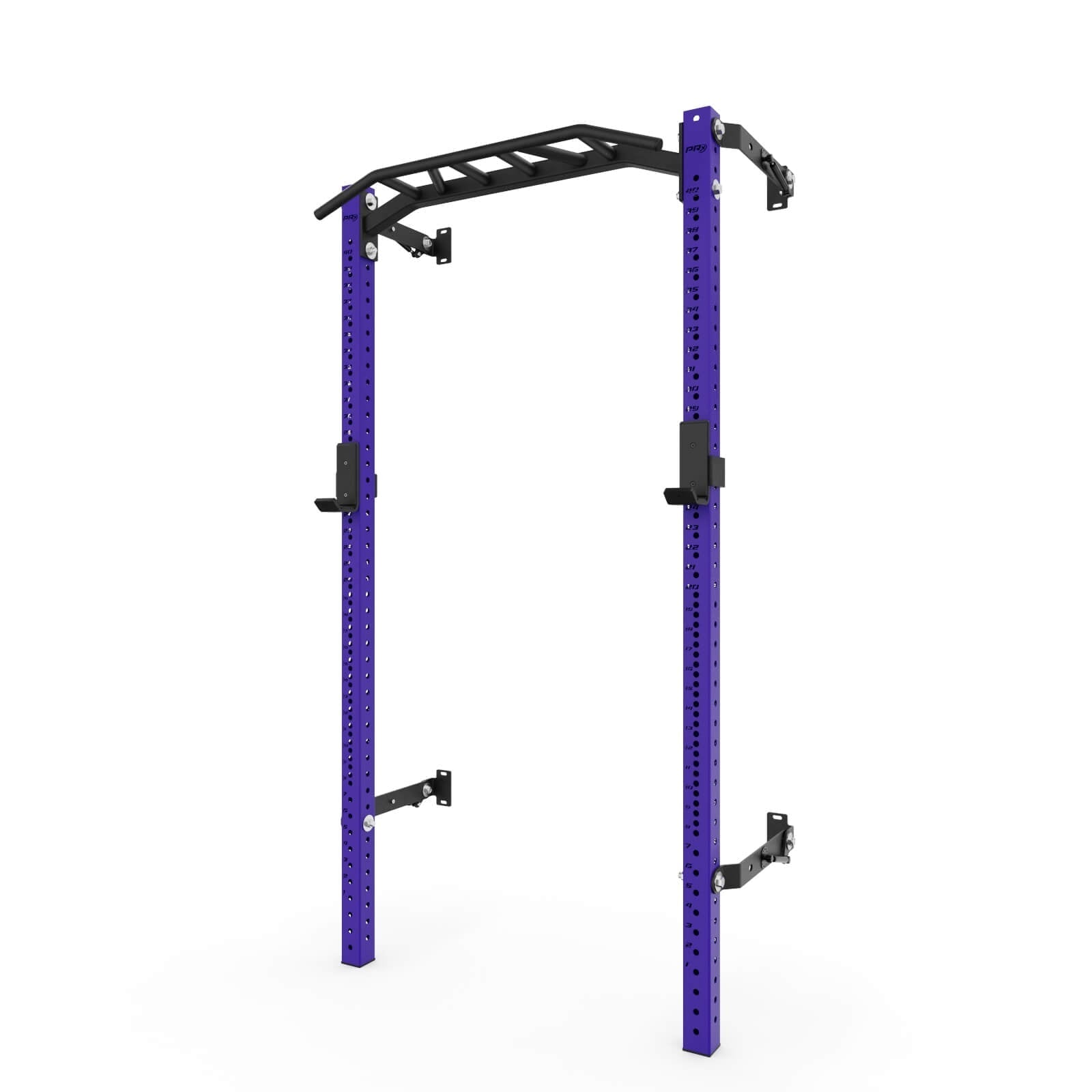

Multi-Grip Bar

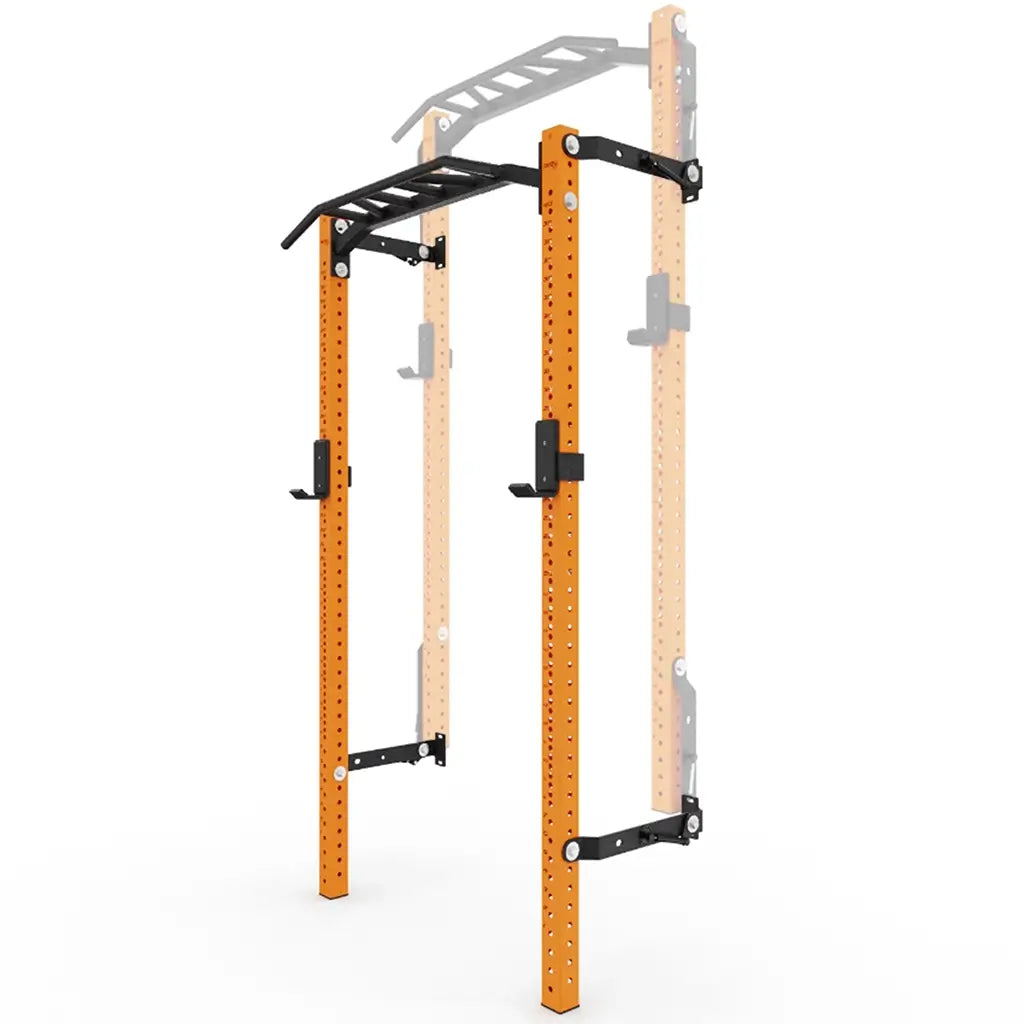

| Clearance | 29.25" from wall folded down 11.25 from wall folded up |
| Grip Options | Narrow neutral - 4.75" Angled - 13" Wide neutral - 24" Wide - 35" |

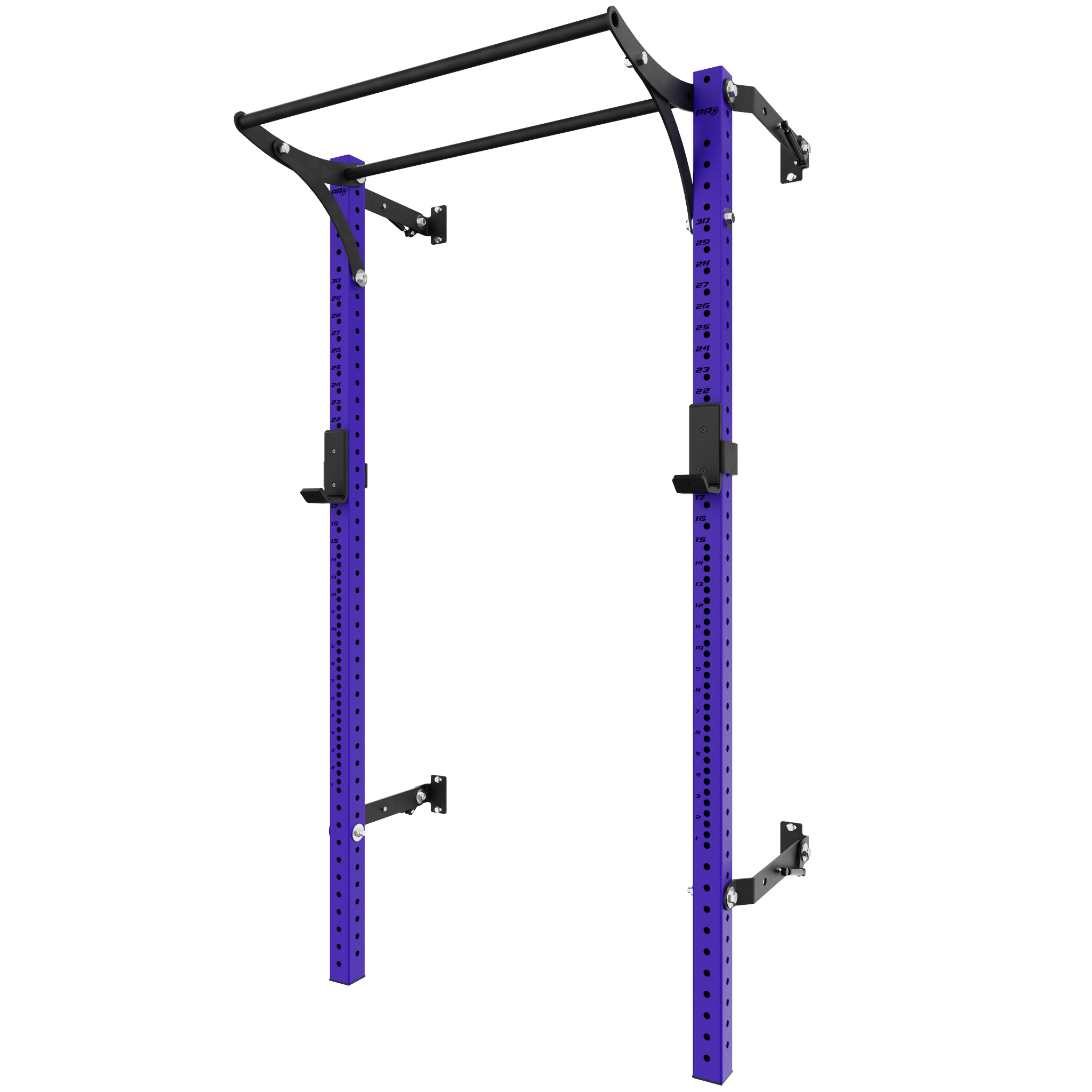

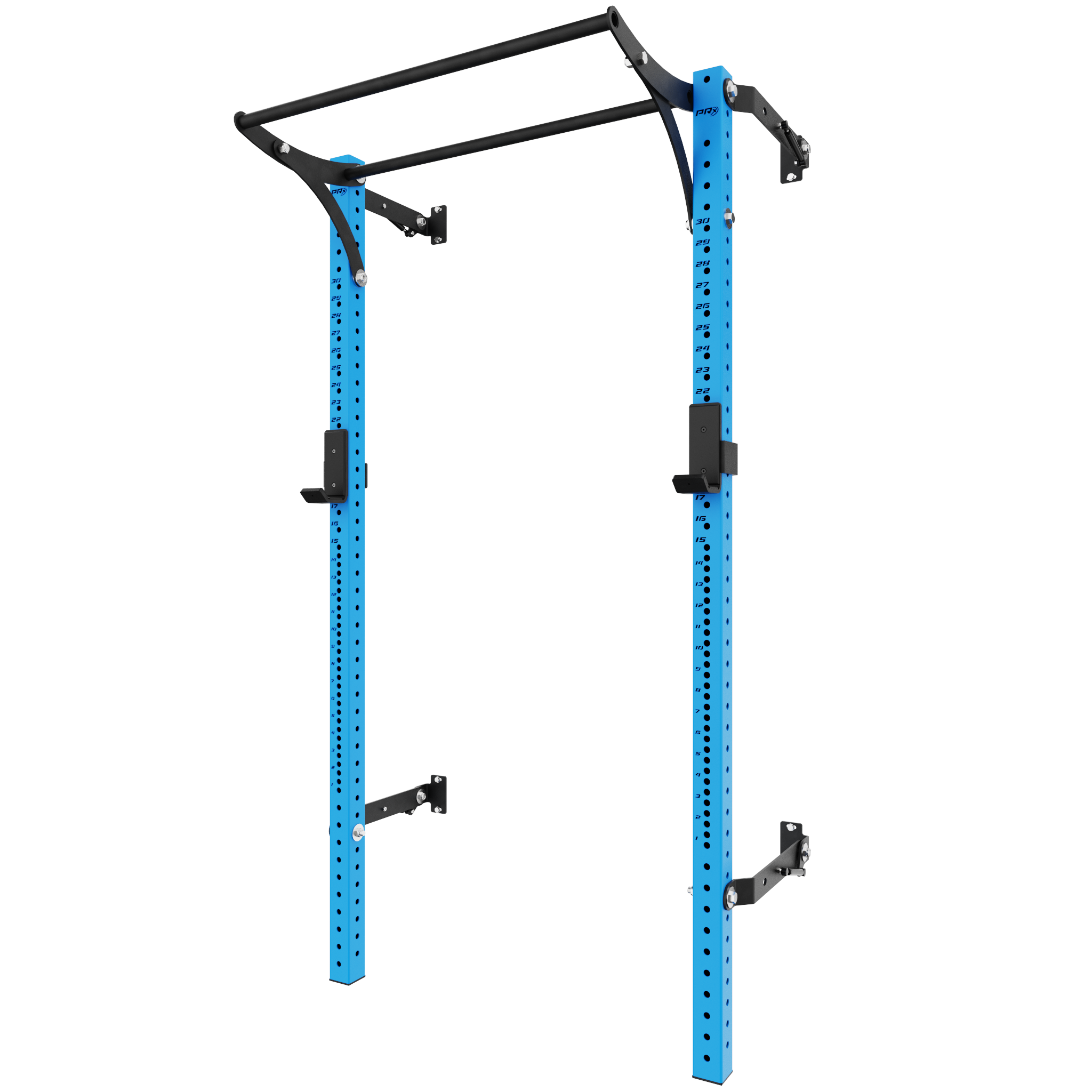

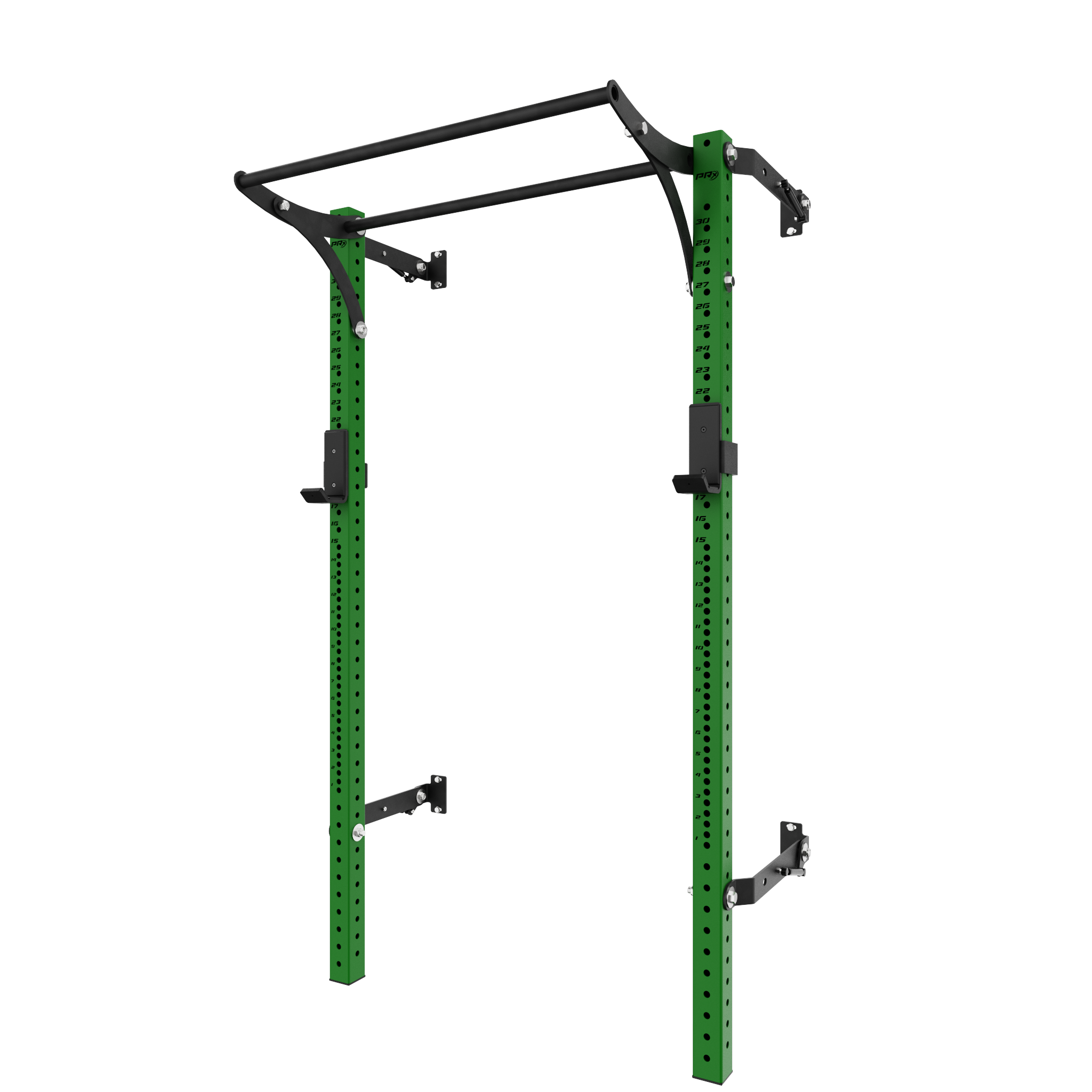

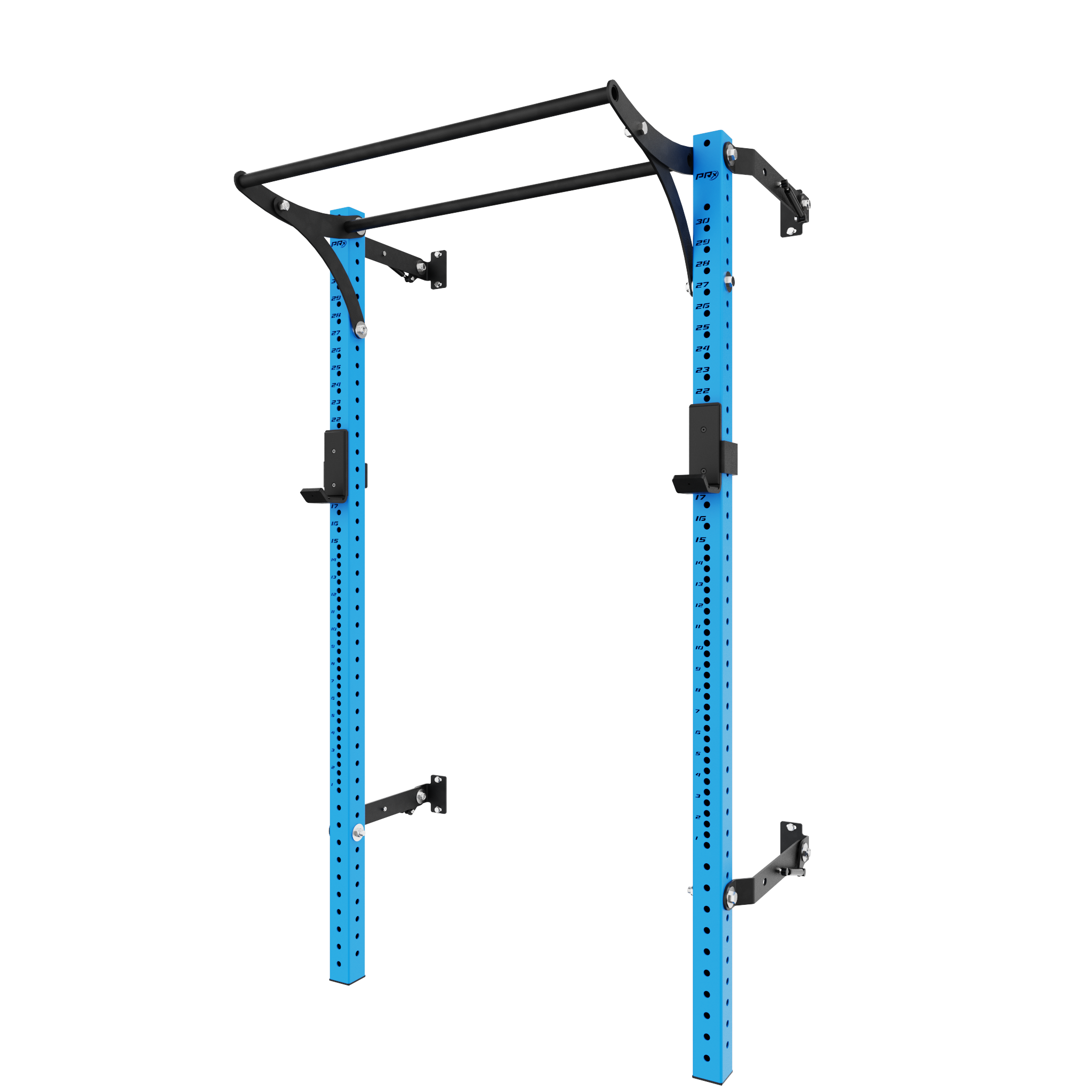

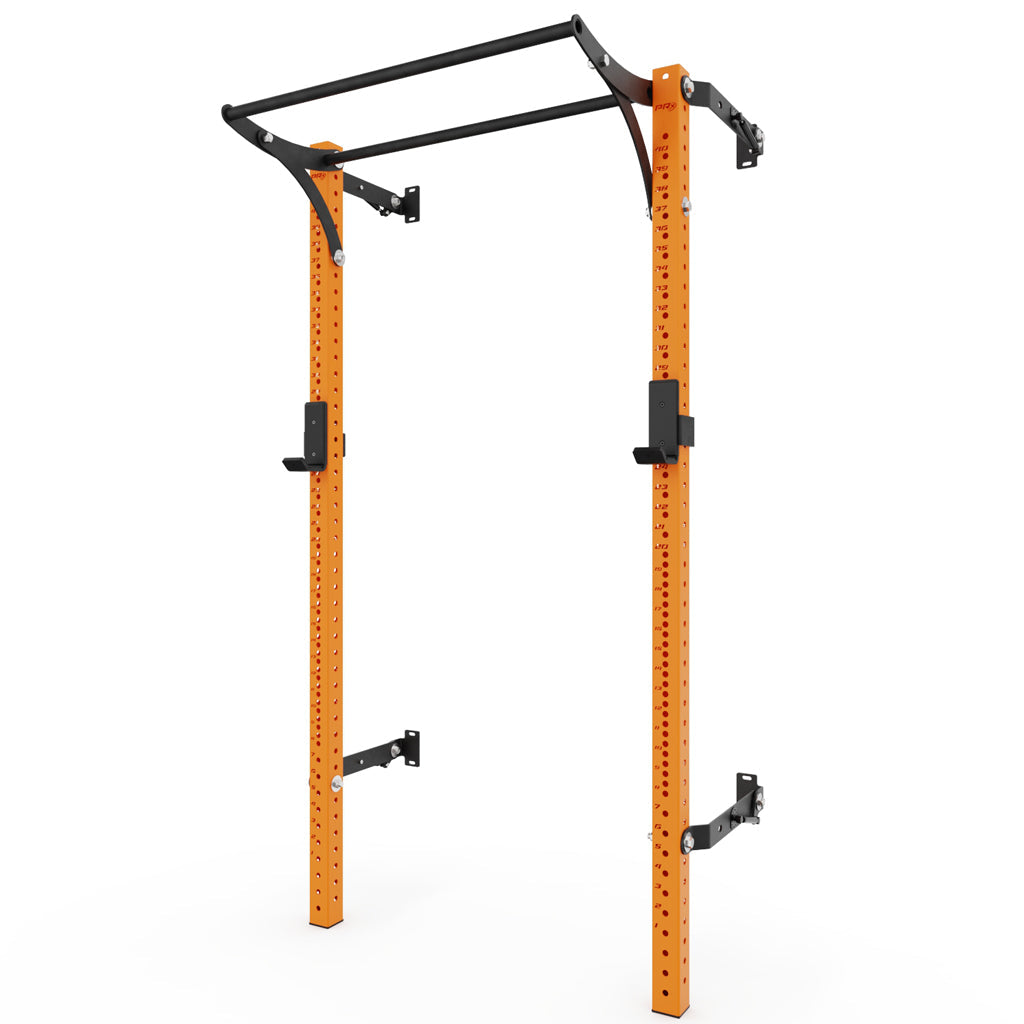

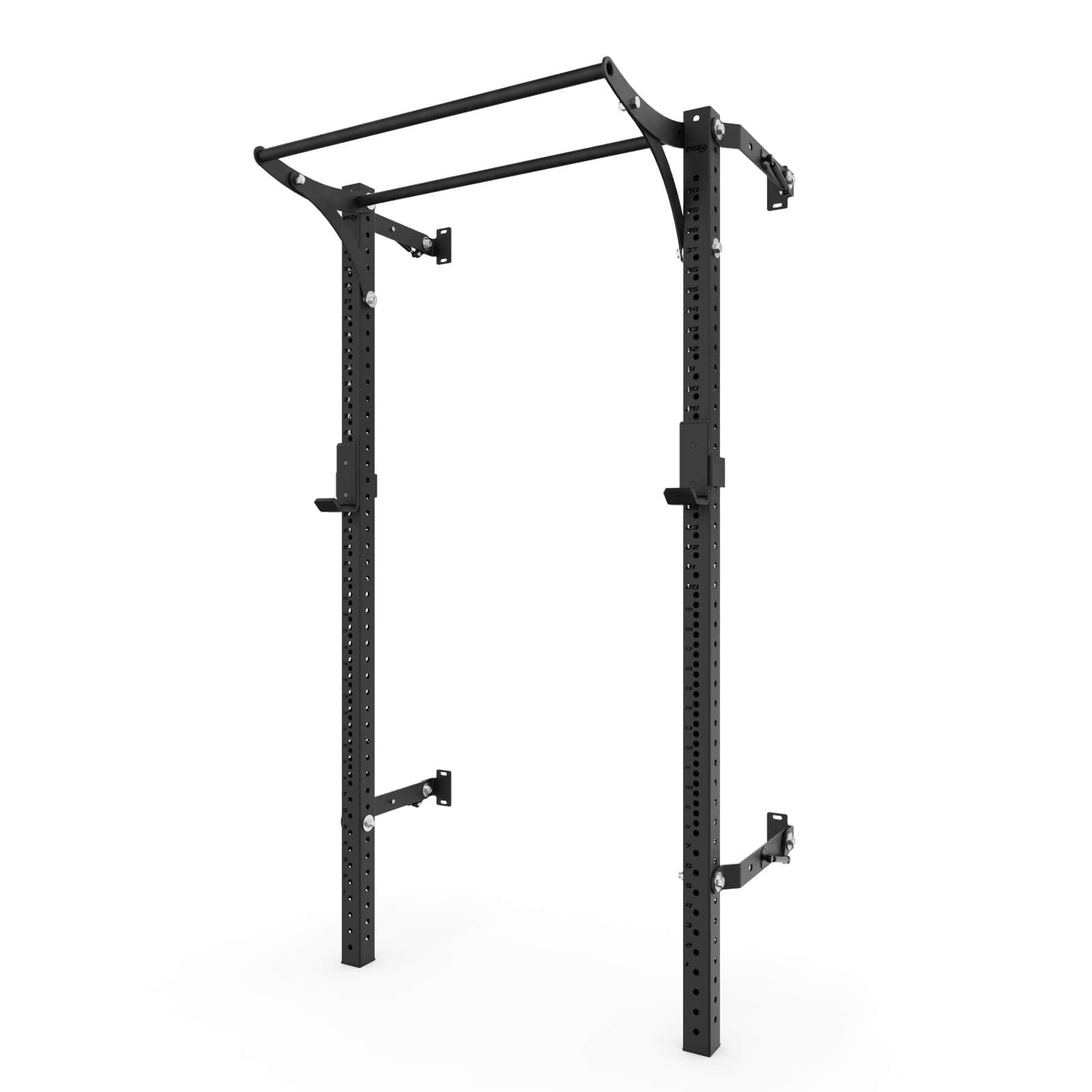

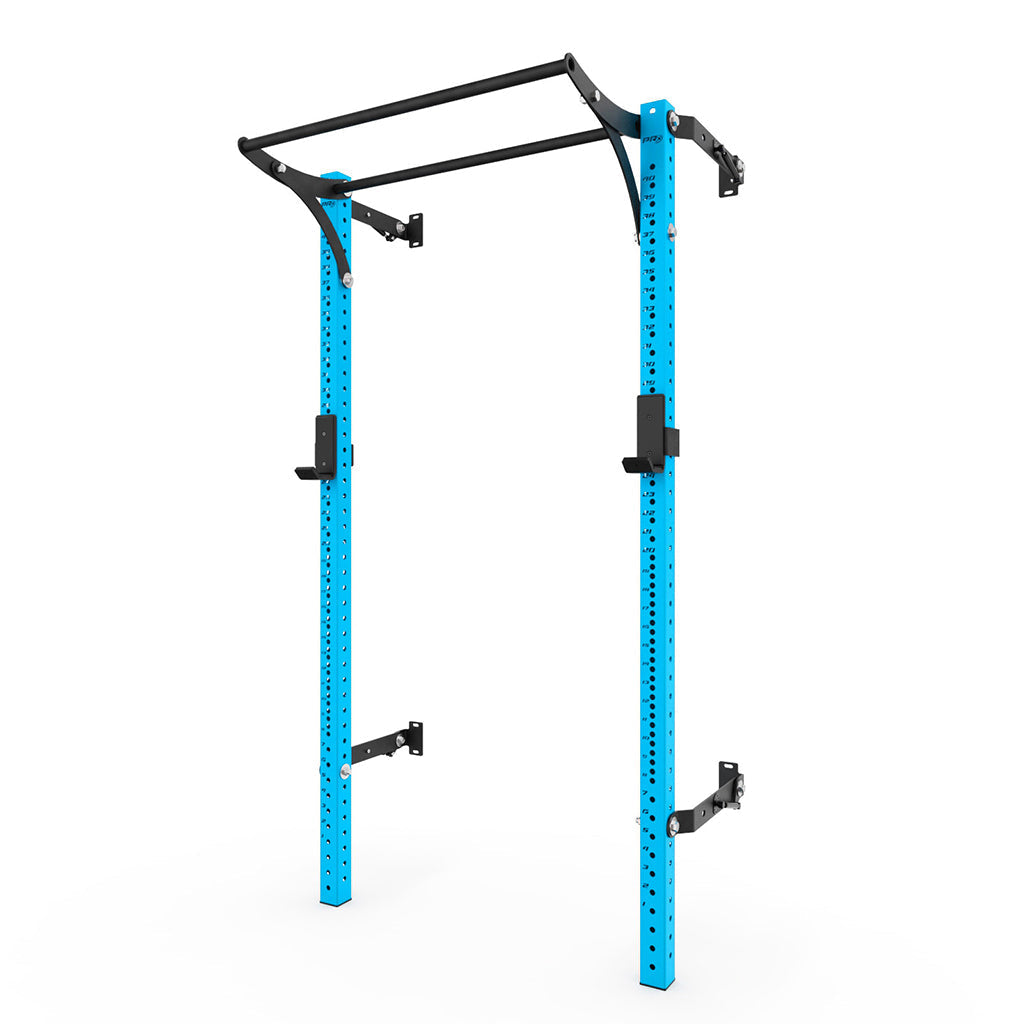

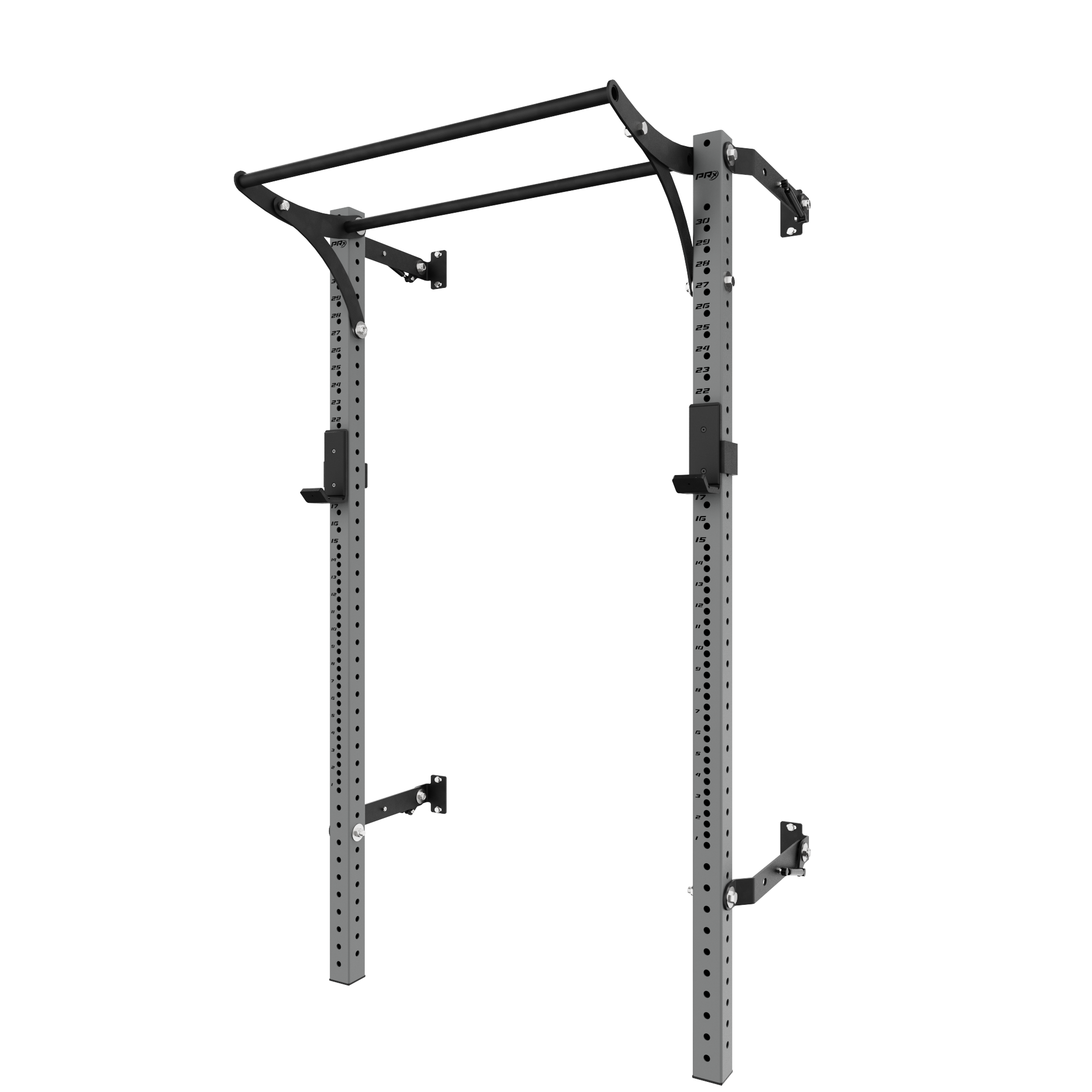

Kipping Bar
| Clearance | 39.5" from wall folded down 22.5" from wall folded up |
Suggested Space
Ceiling Height
89" Racks
- 8'11" (107") ceilings recommended
- Can accommodate ceilings down to 94" with a modified install
95" Racks
- 9'5" (113") ceilings recommended
- Can accommodate ceilings down to 100" with a modified install
Stud Spacing
Wall Brackets mount to 16" or 24" on center studs. If studs are unevenly spaced, a ledger board is required.
