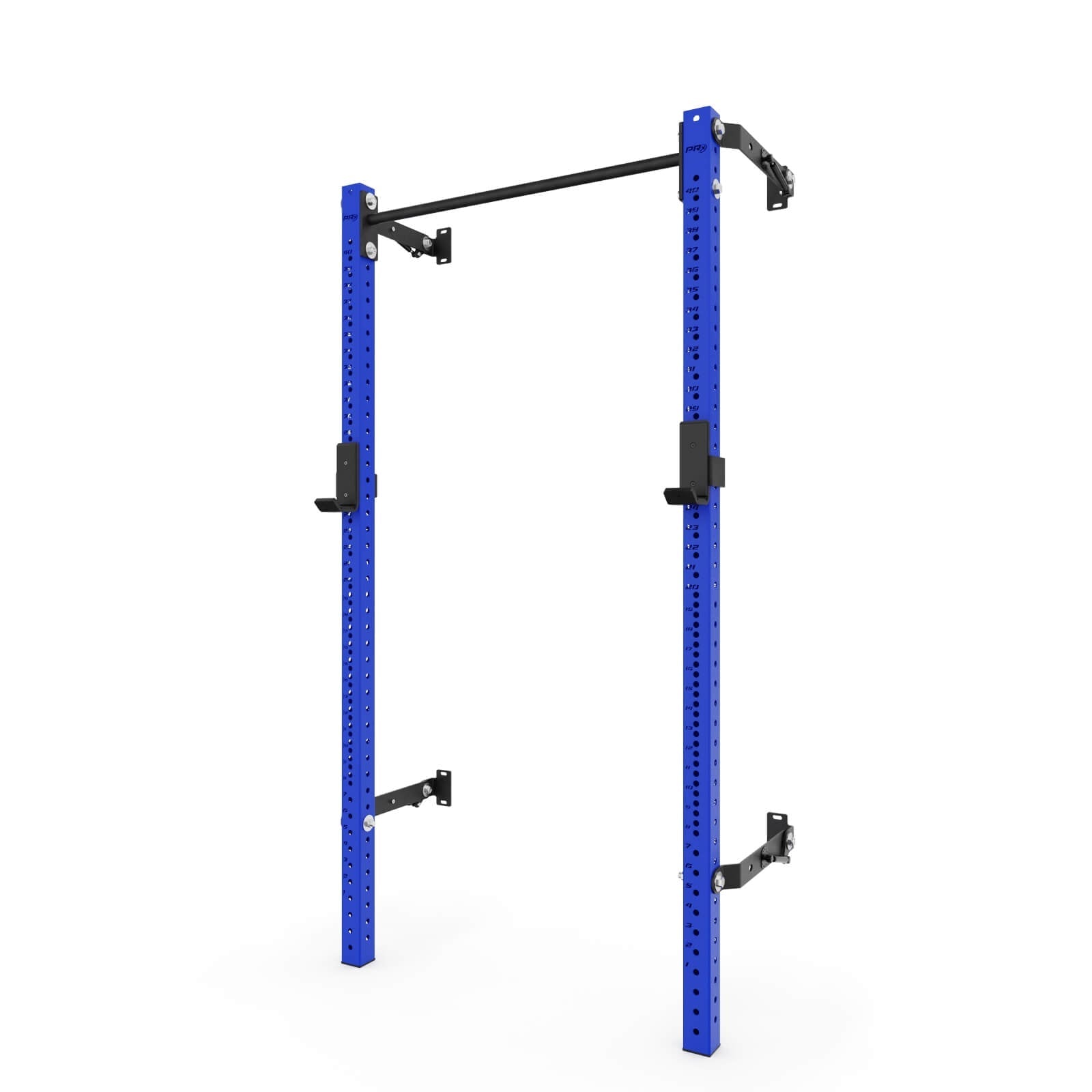

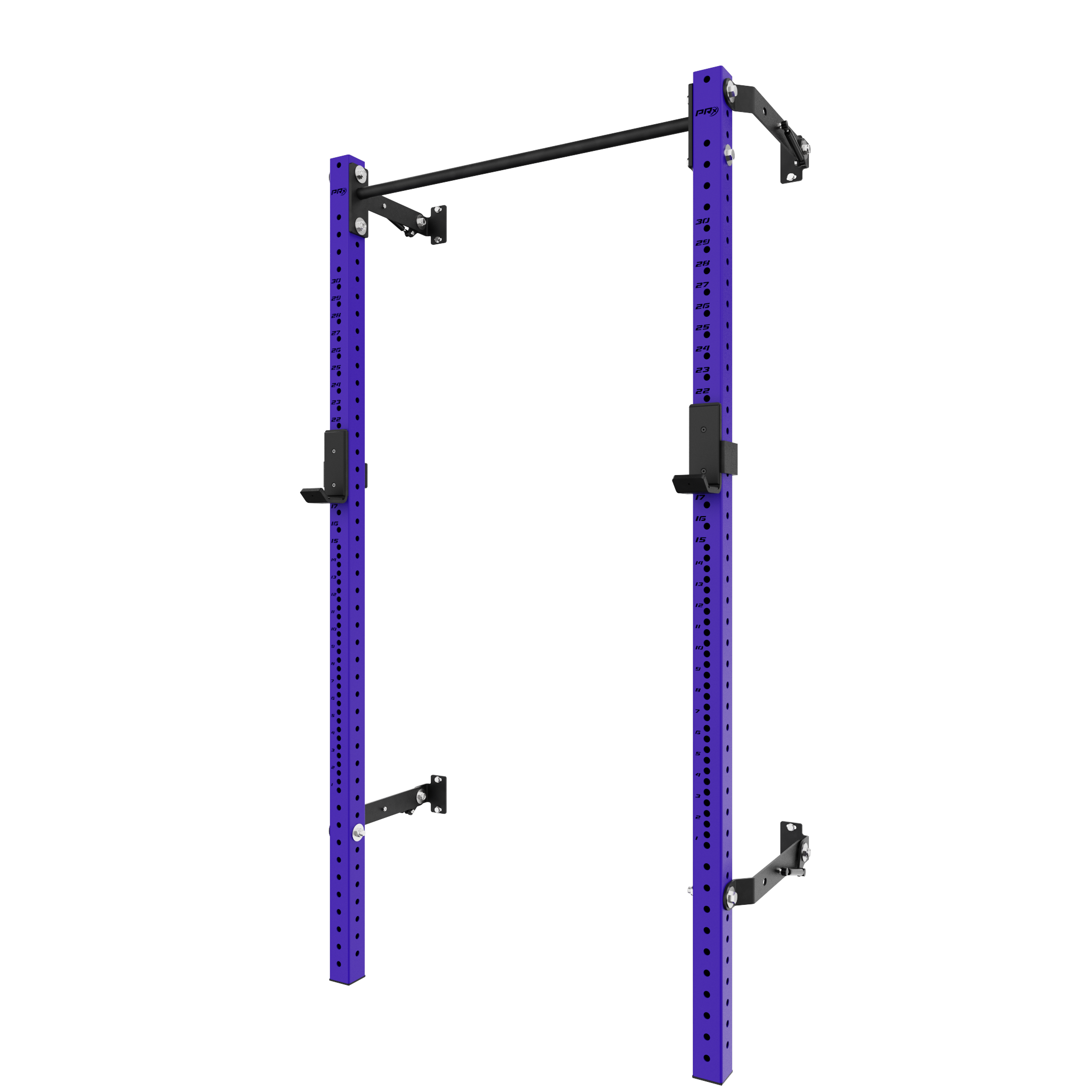

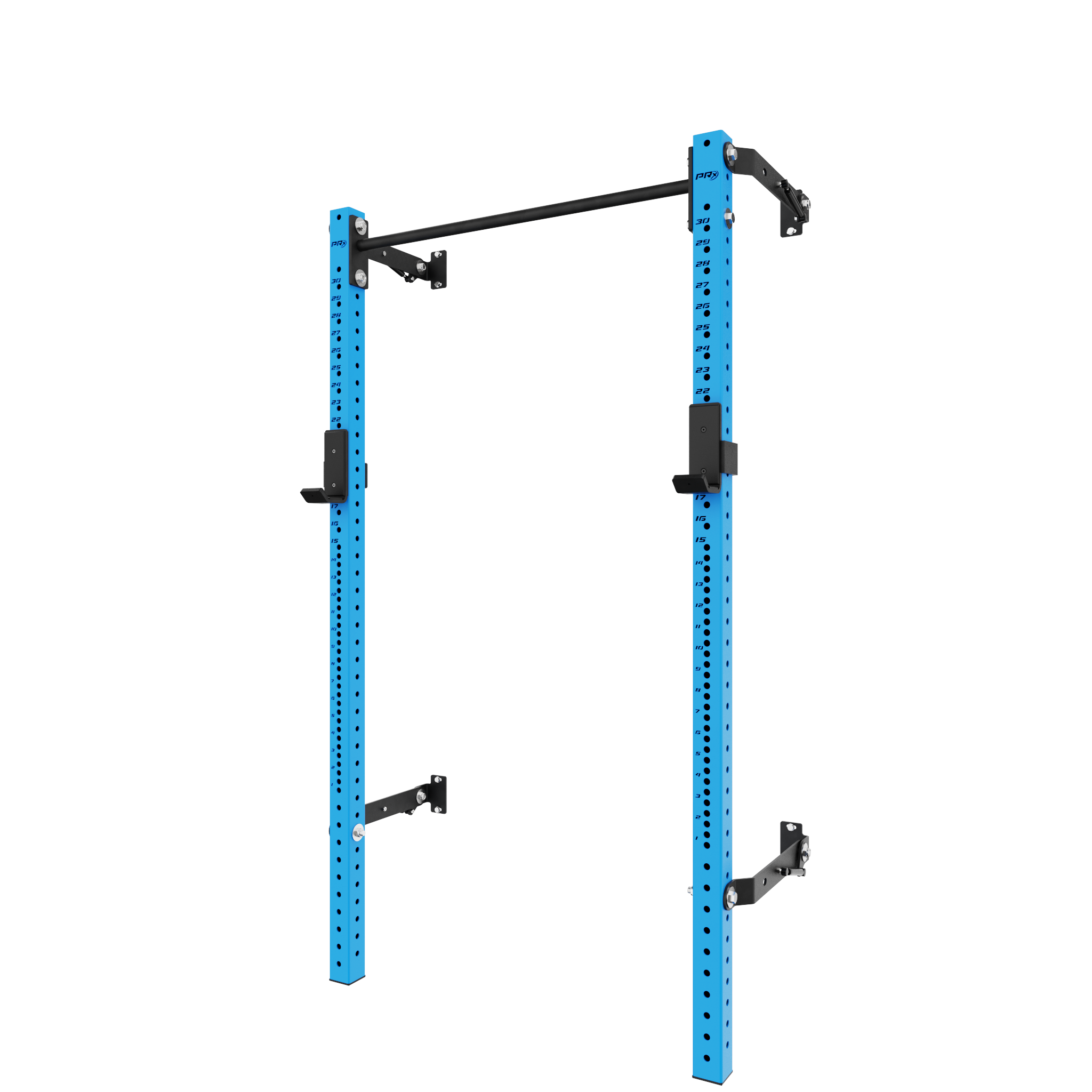

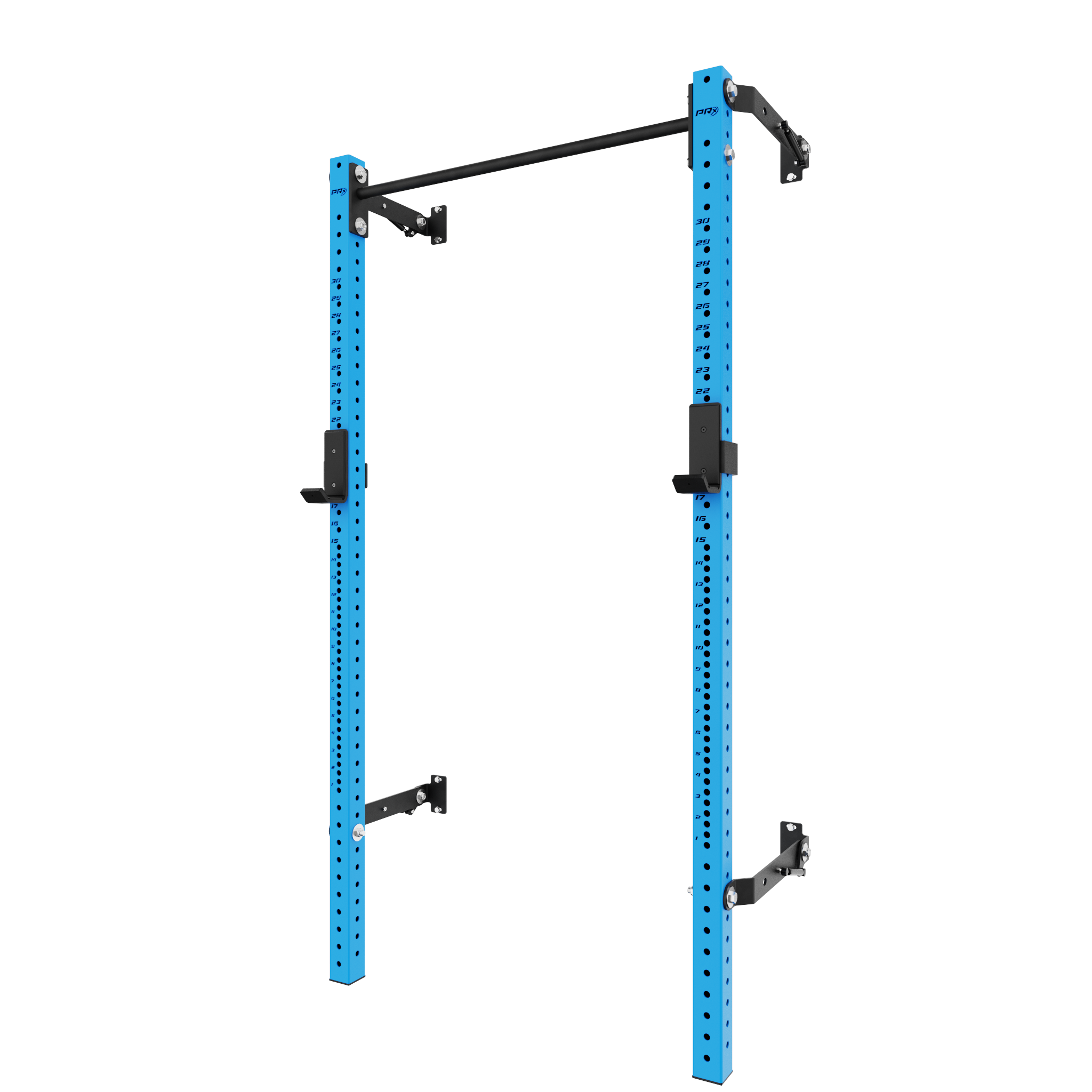

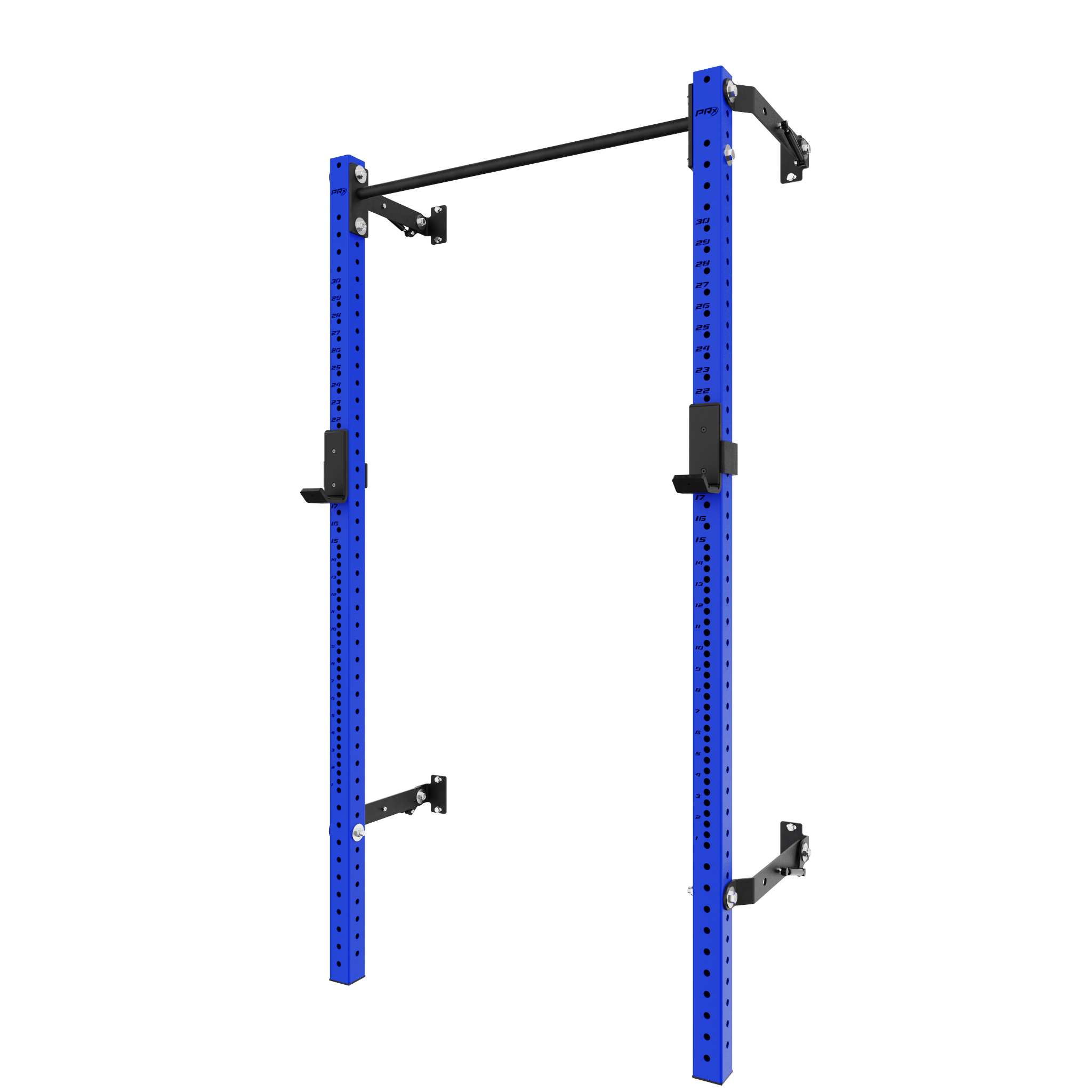

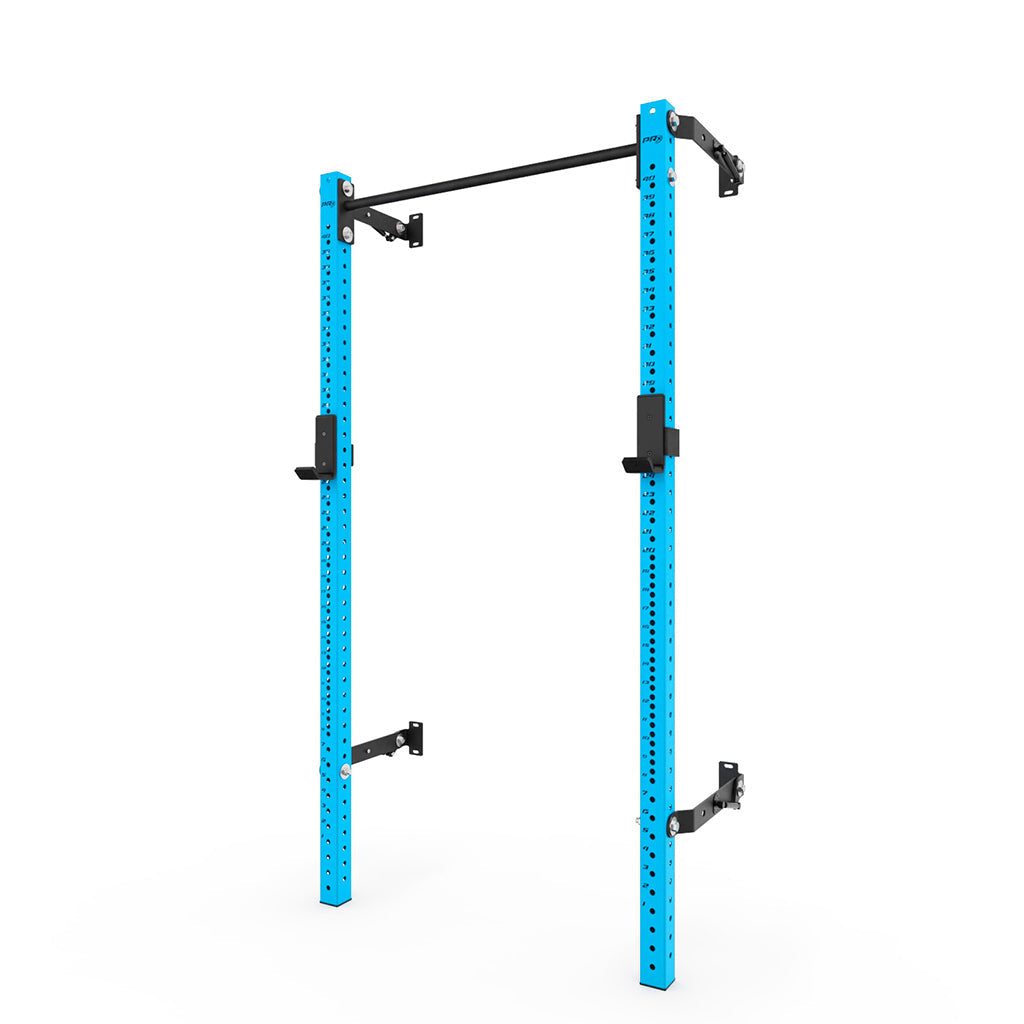

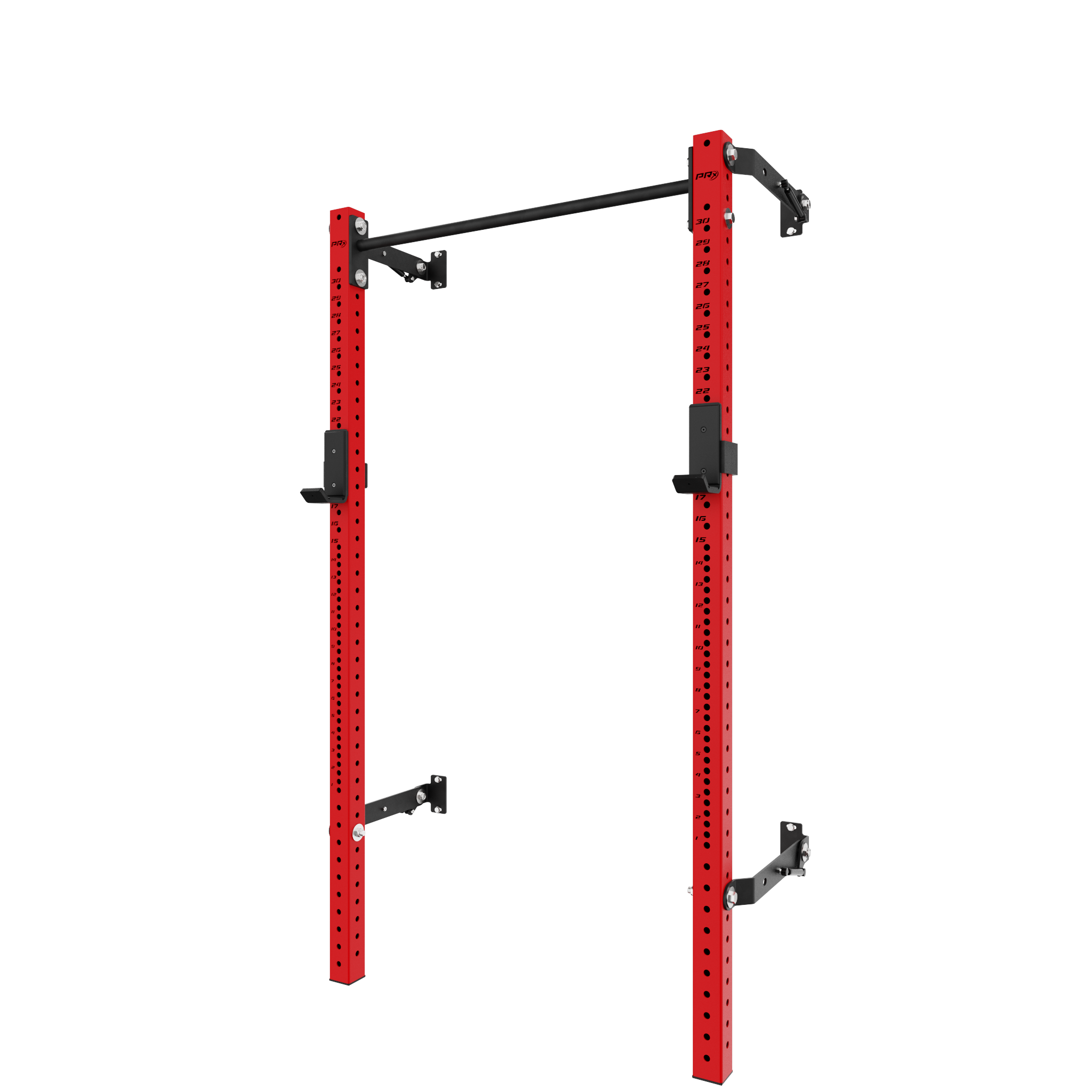

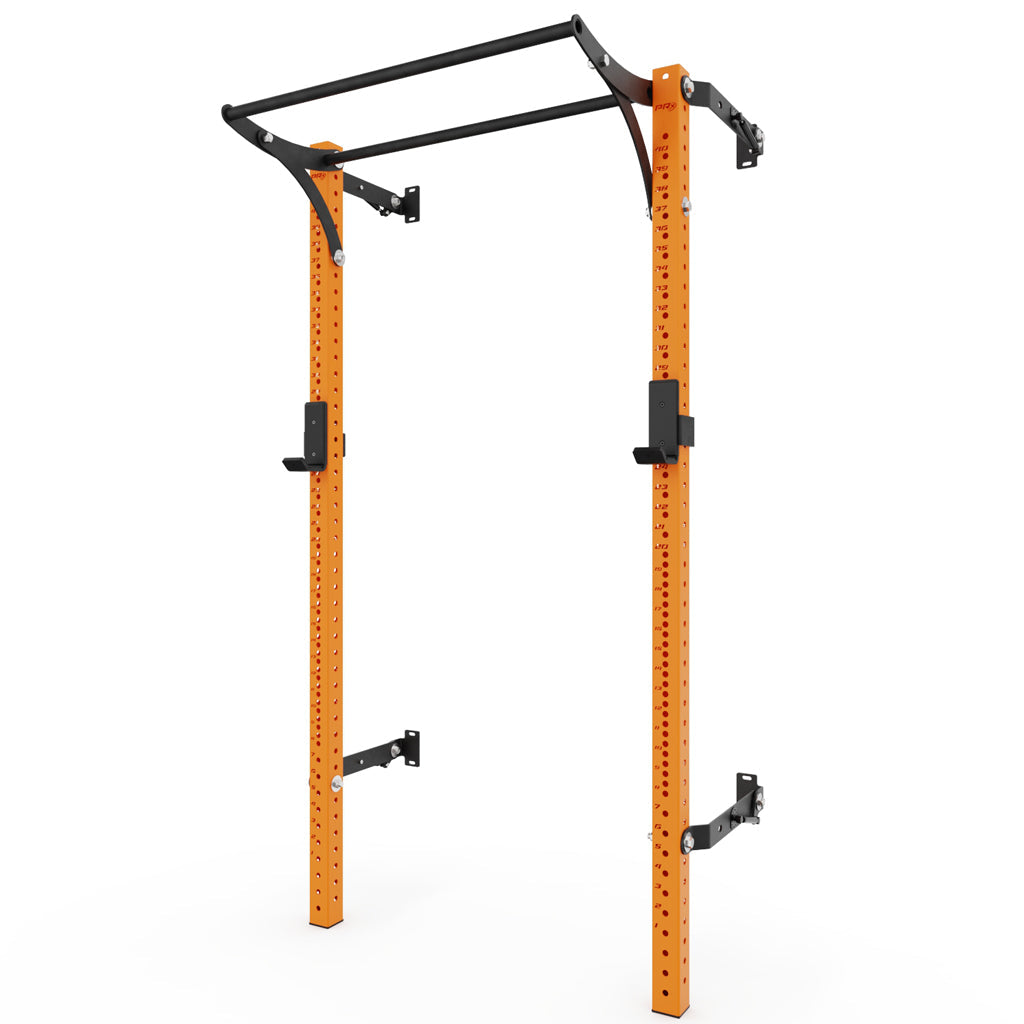

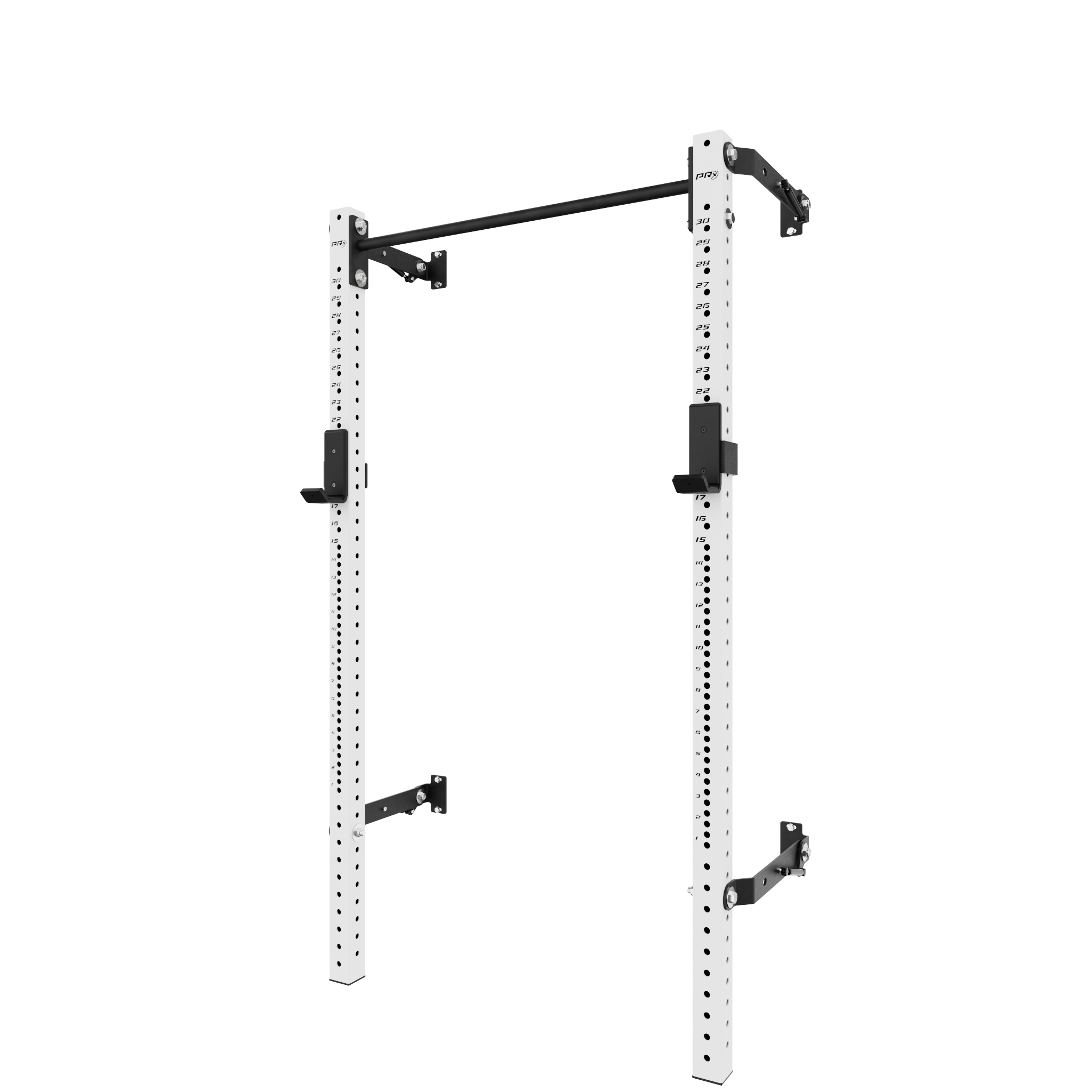

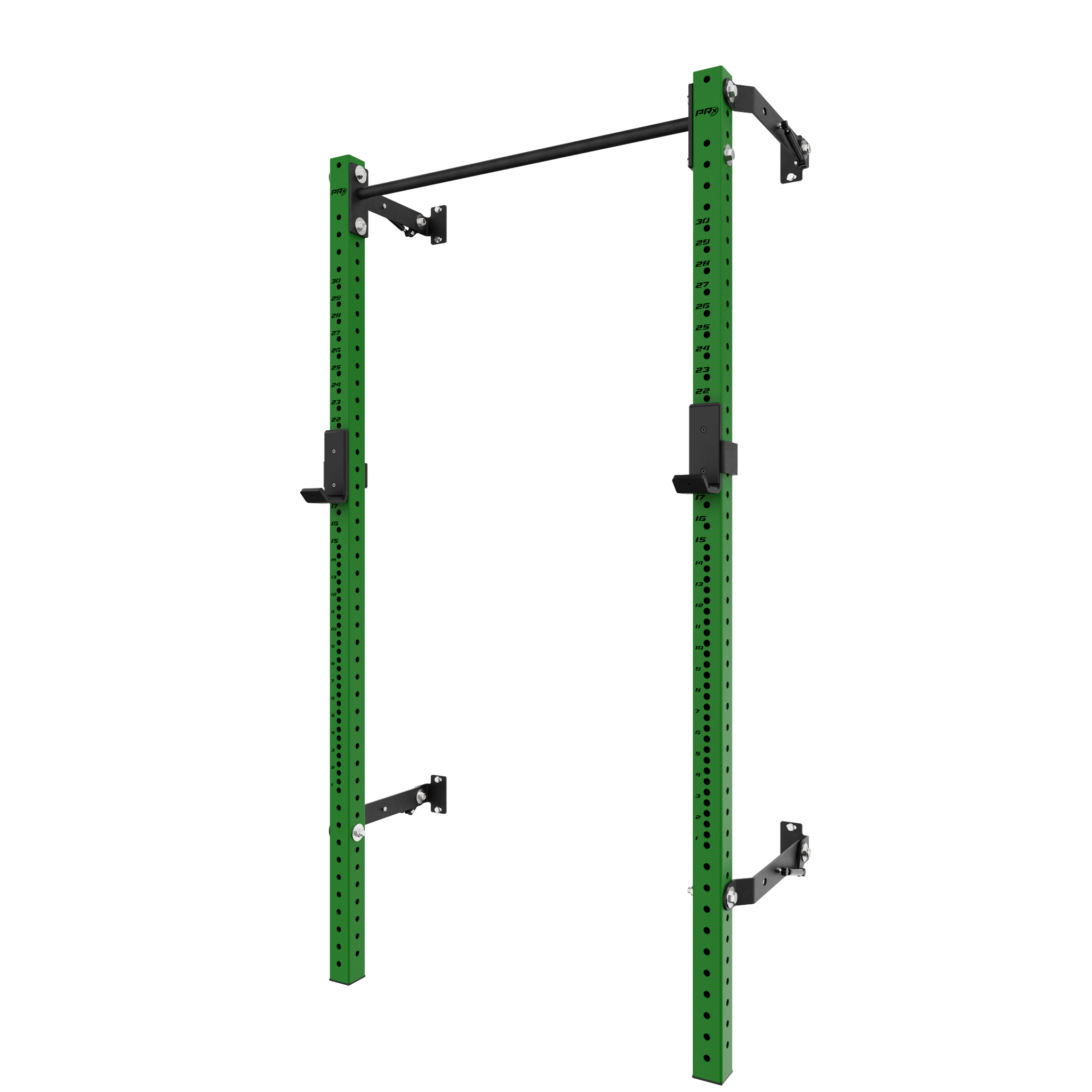

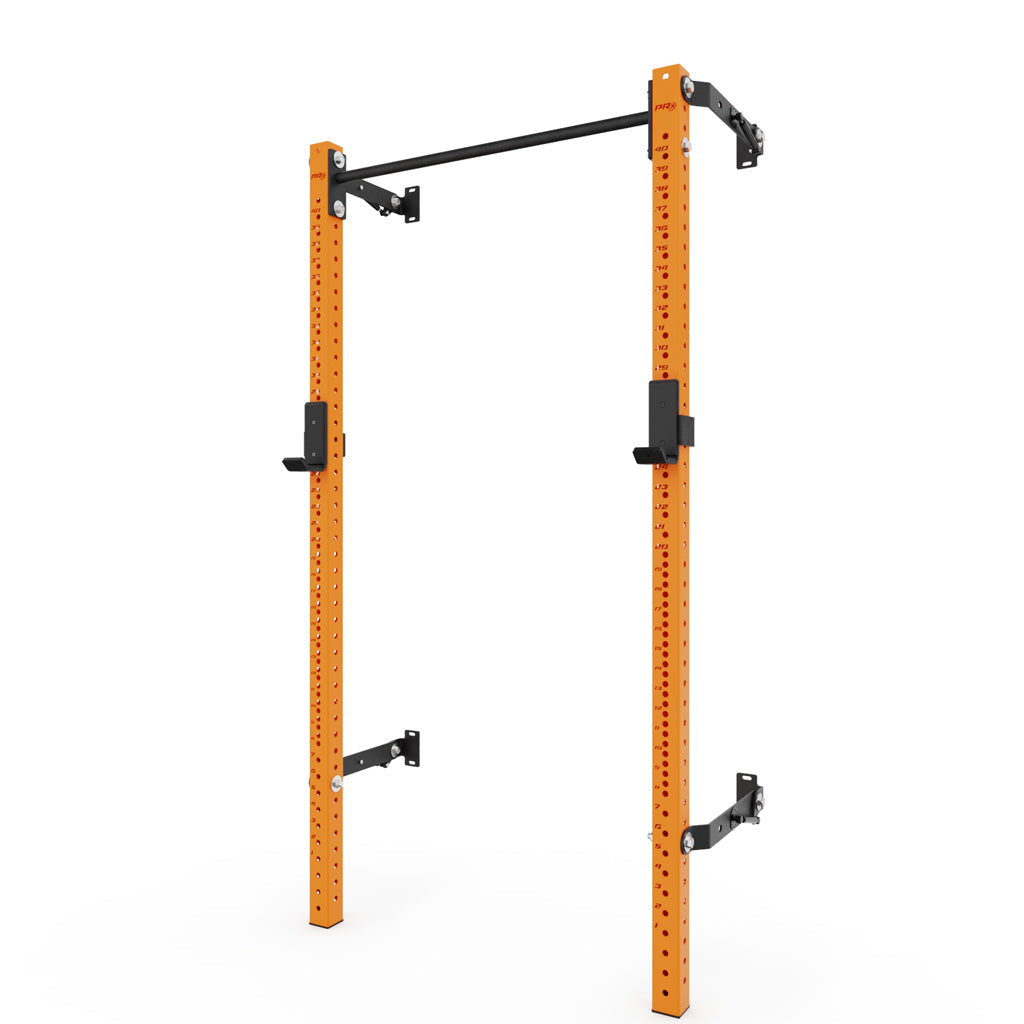

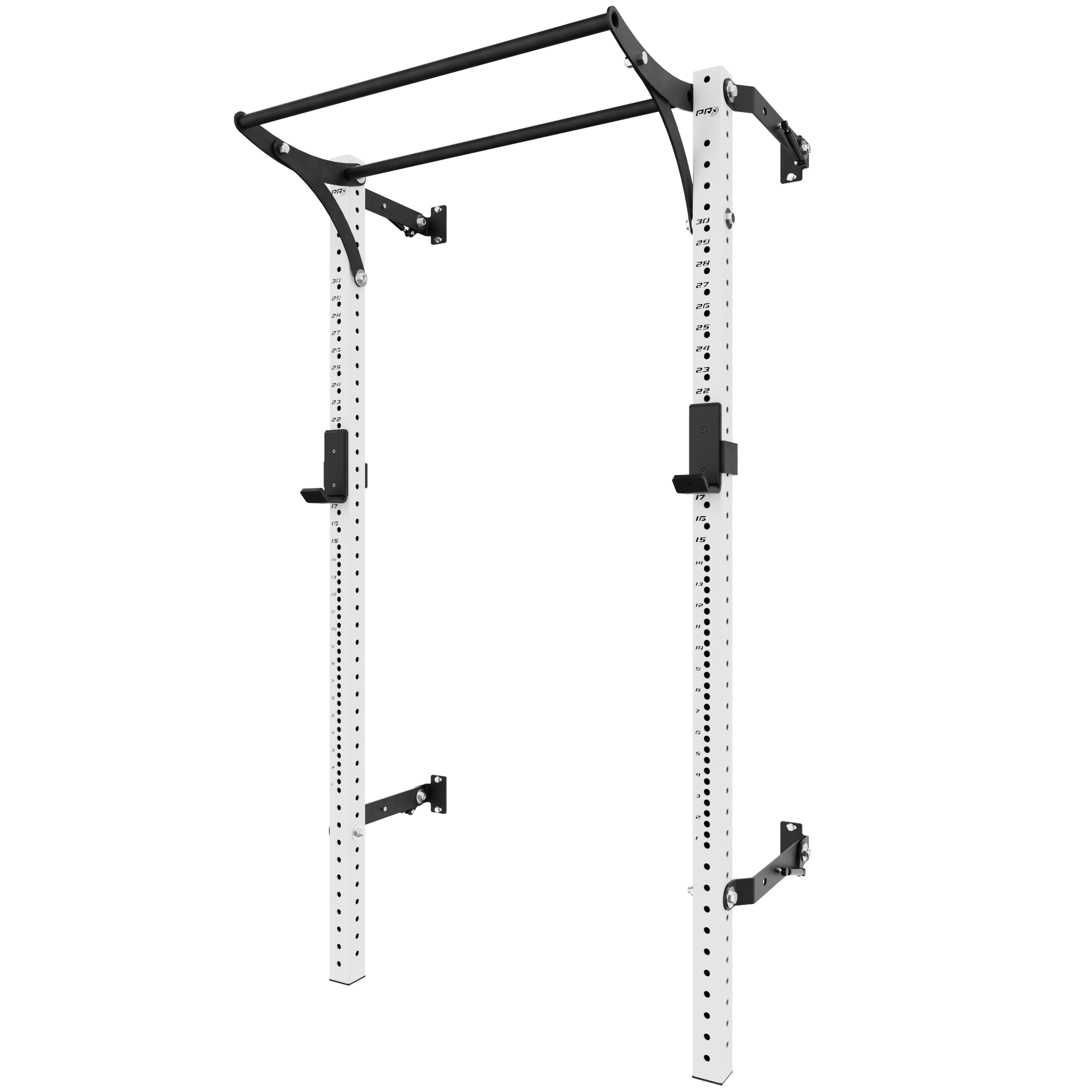

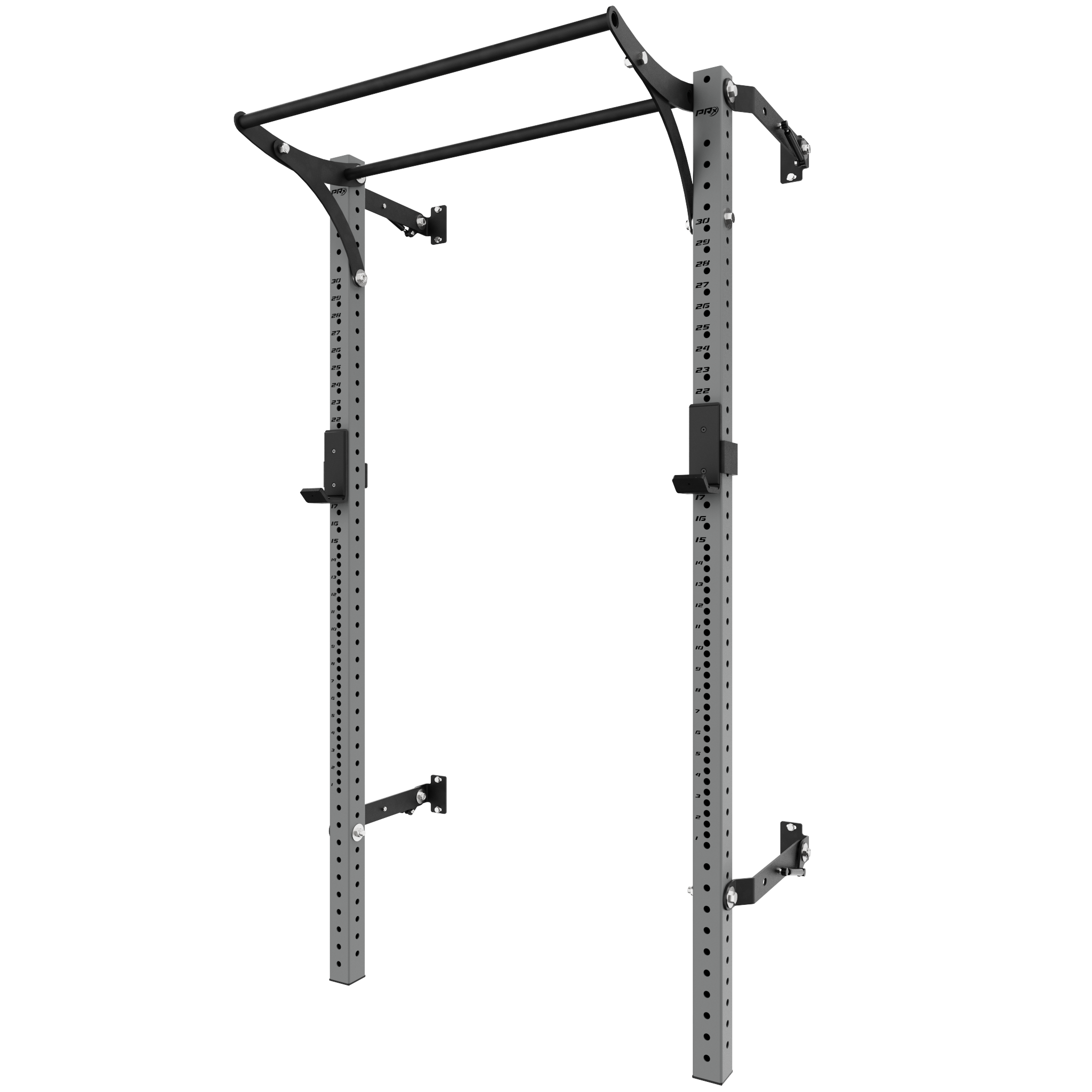

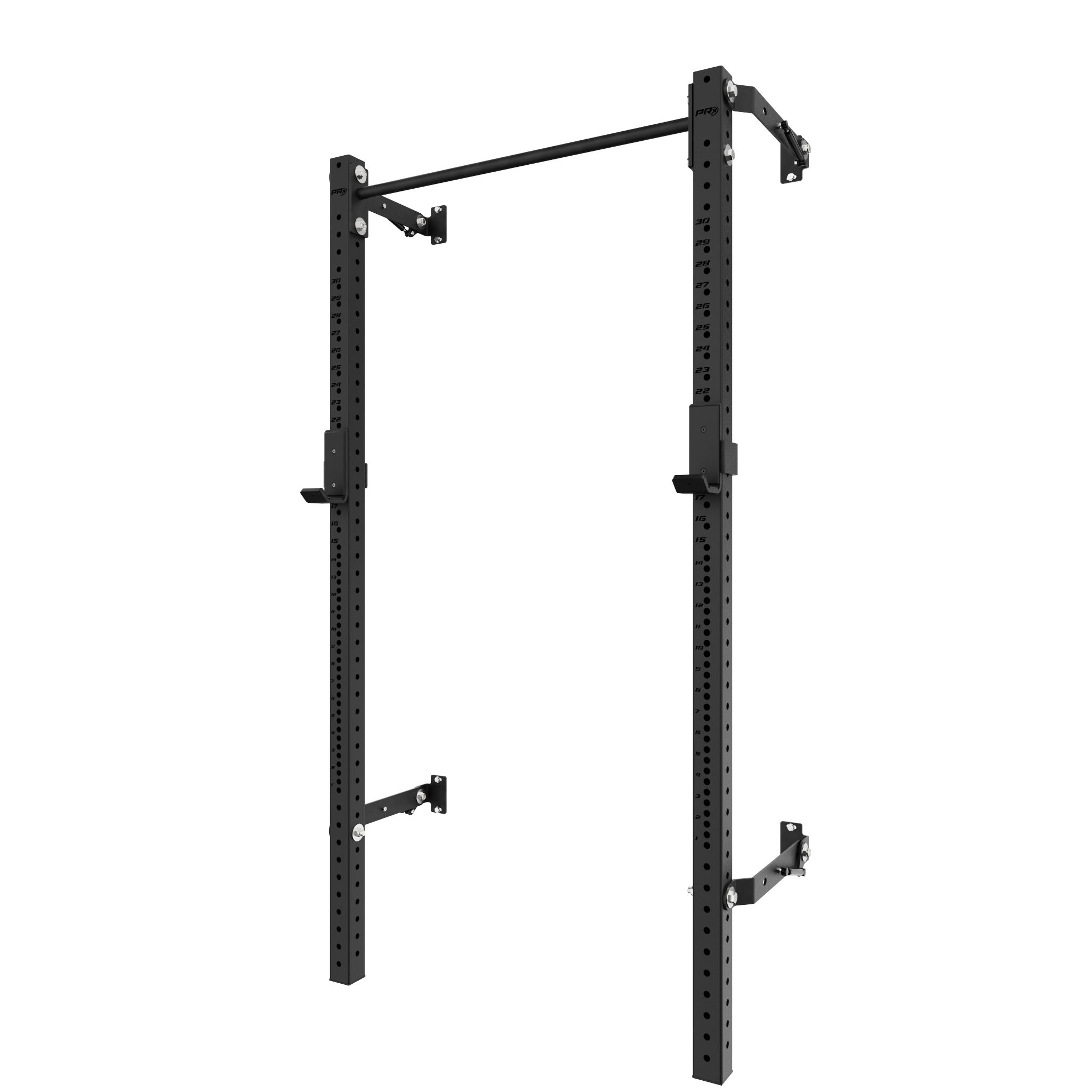

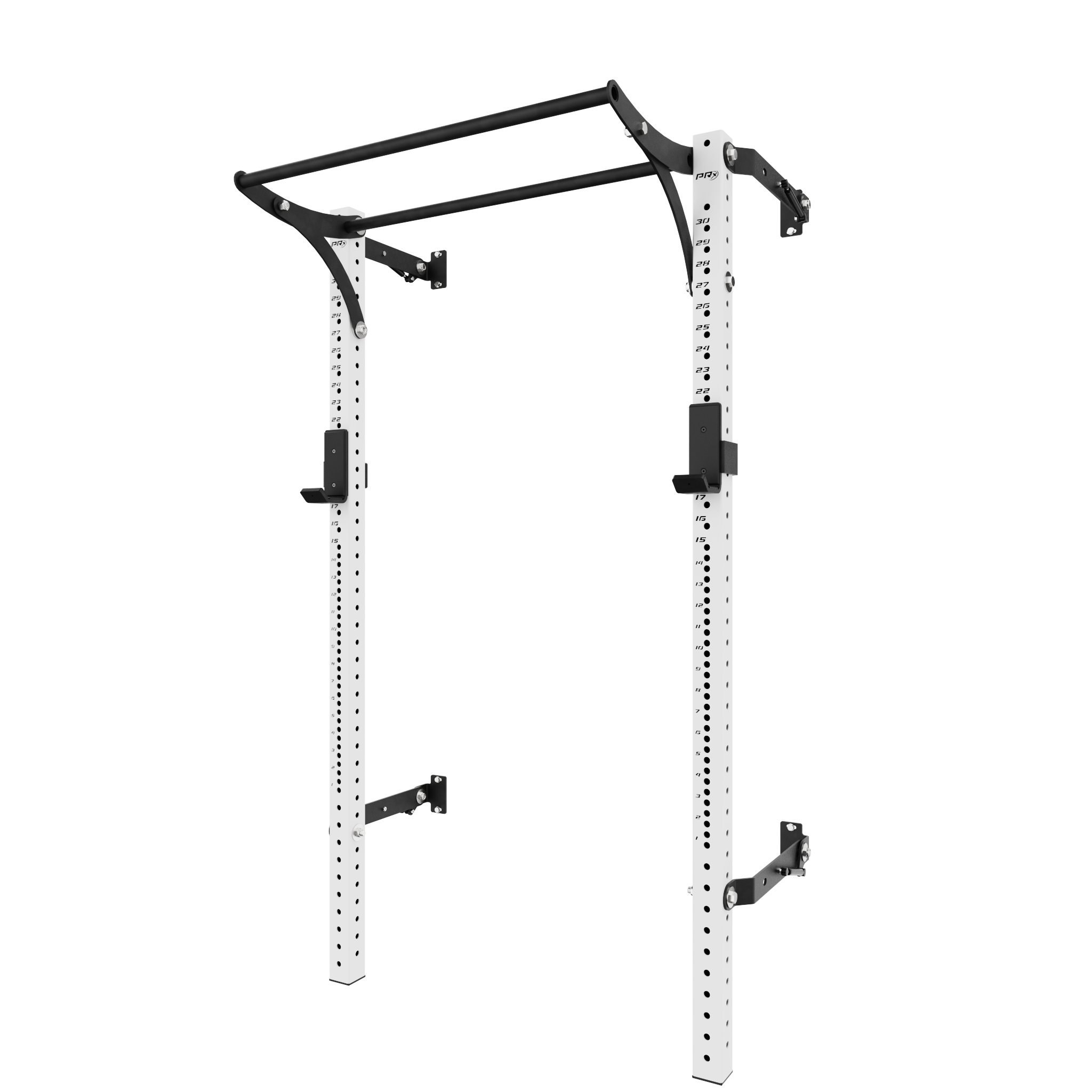

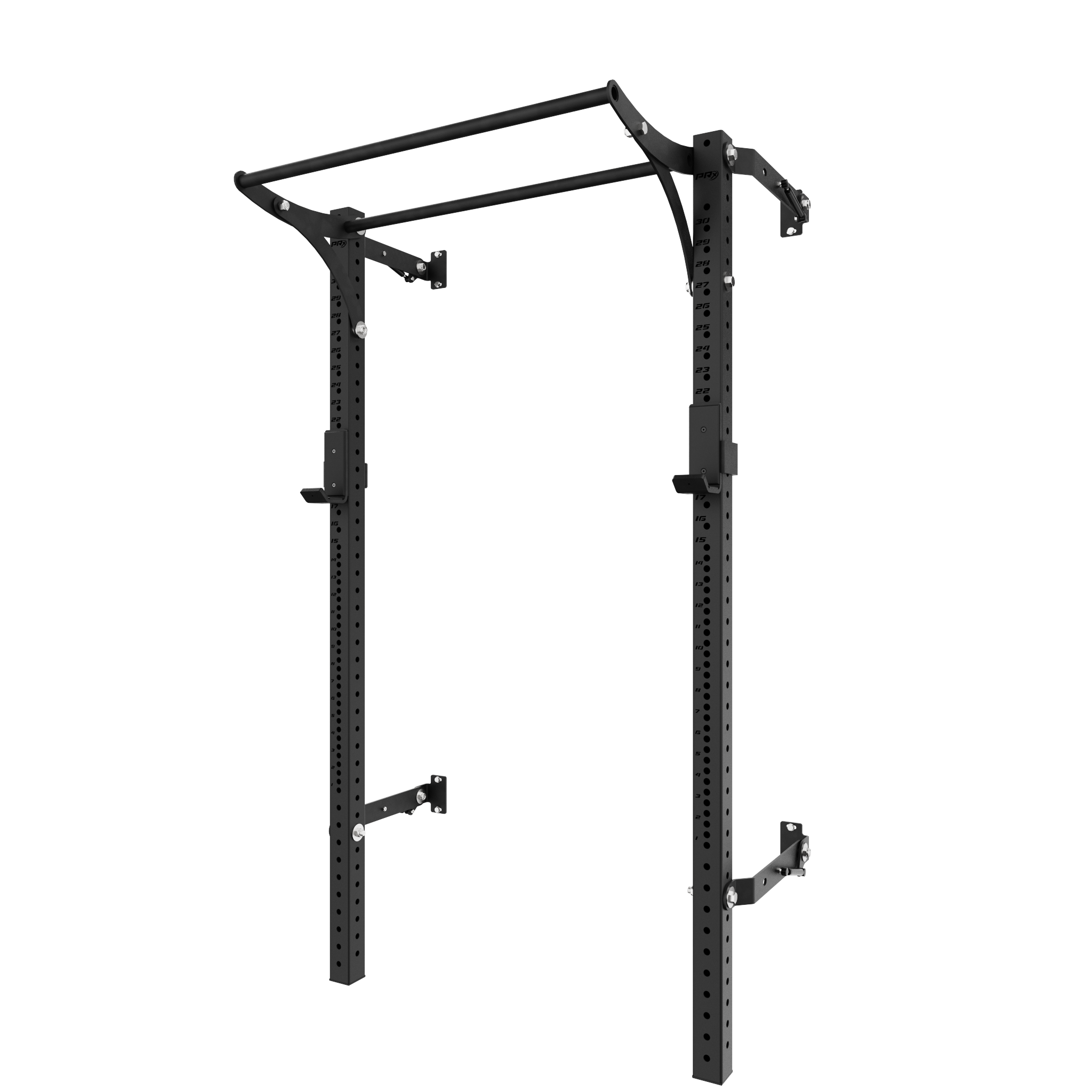

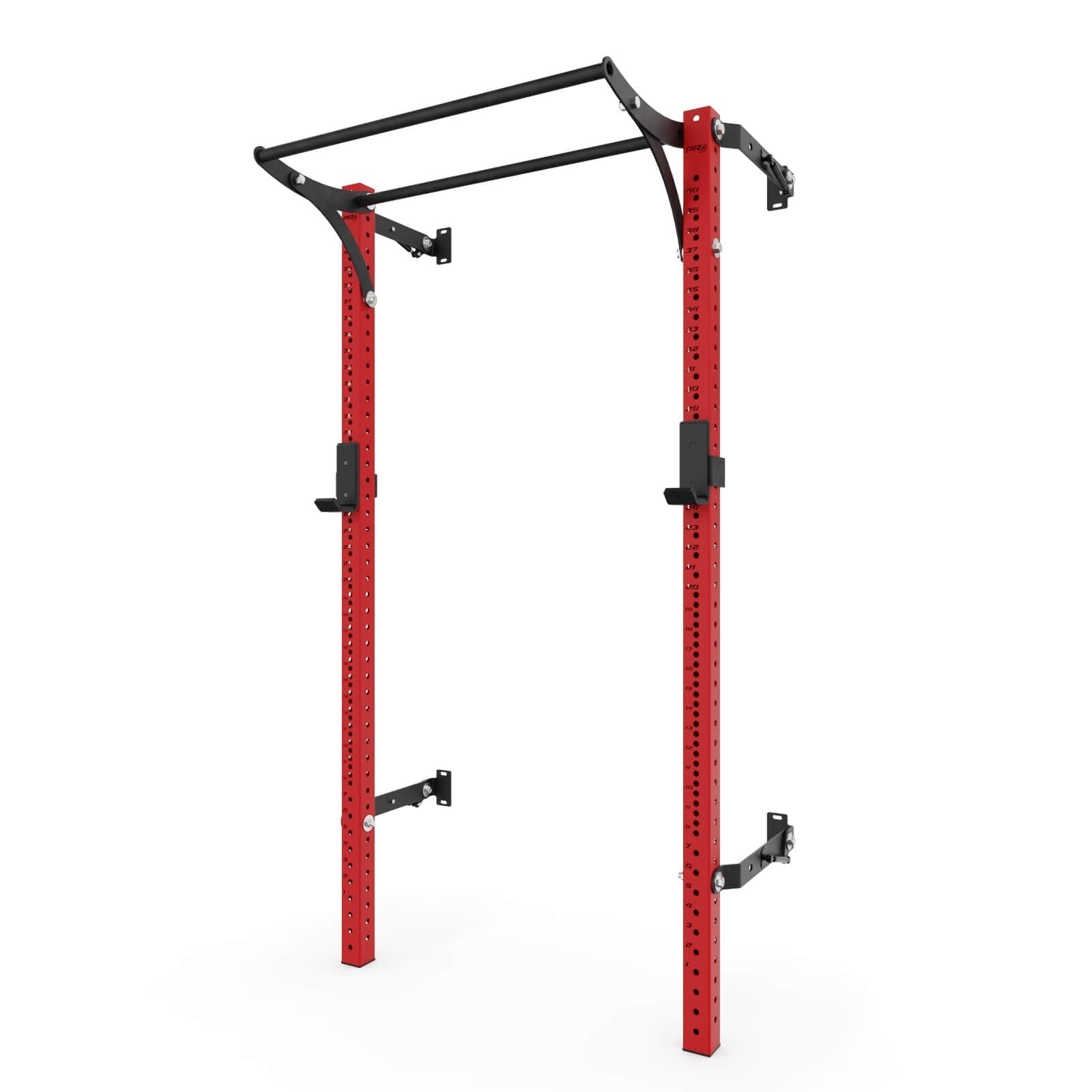

Profile® PRO Squat Rack with Pull-Up Bar

$999.00
Pull-Up Bar
Upright Color
Upright Height
Description

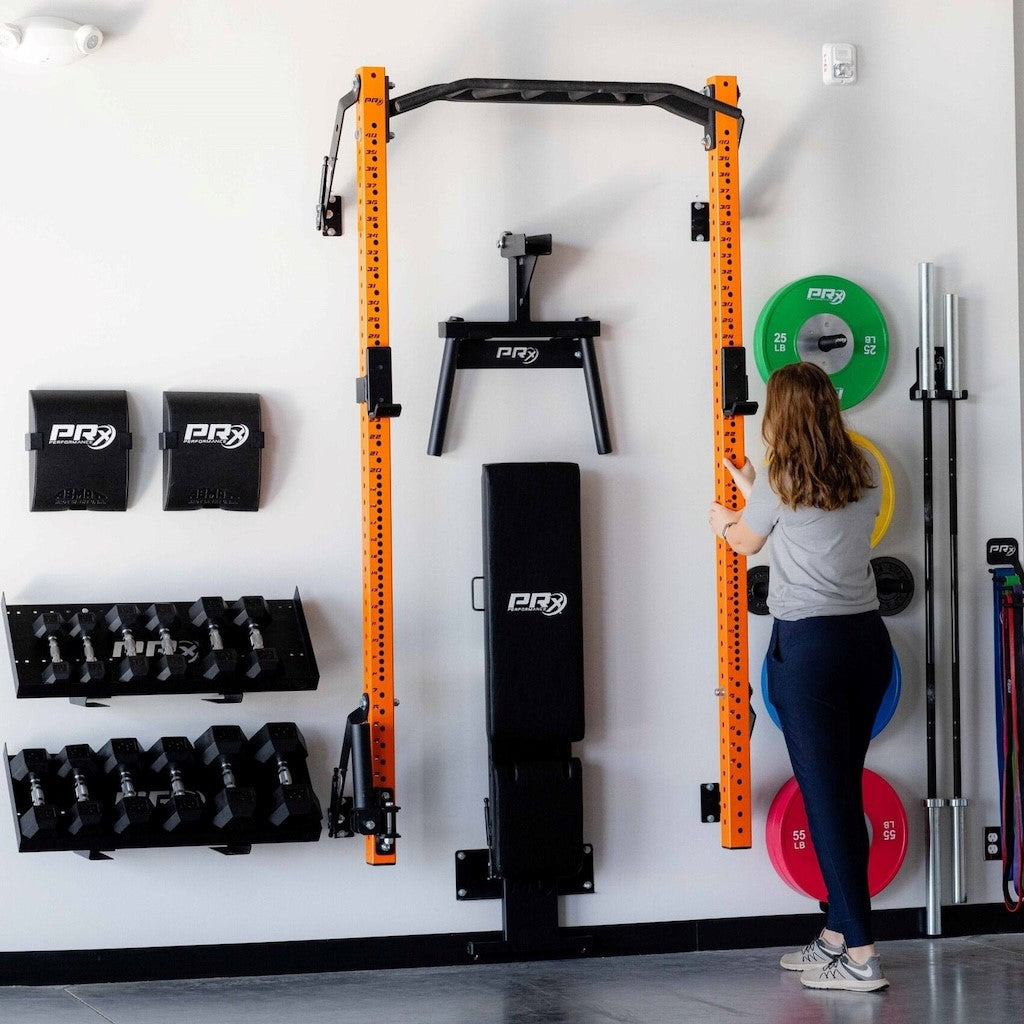

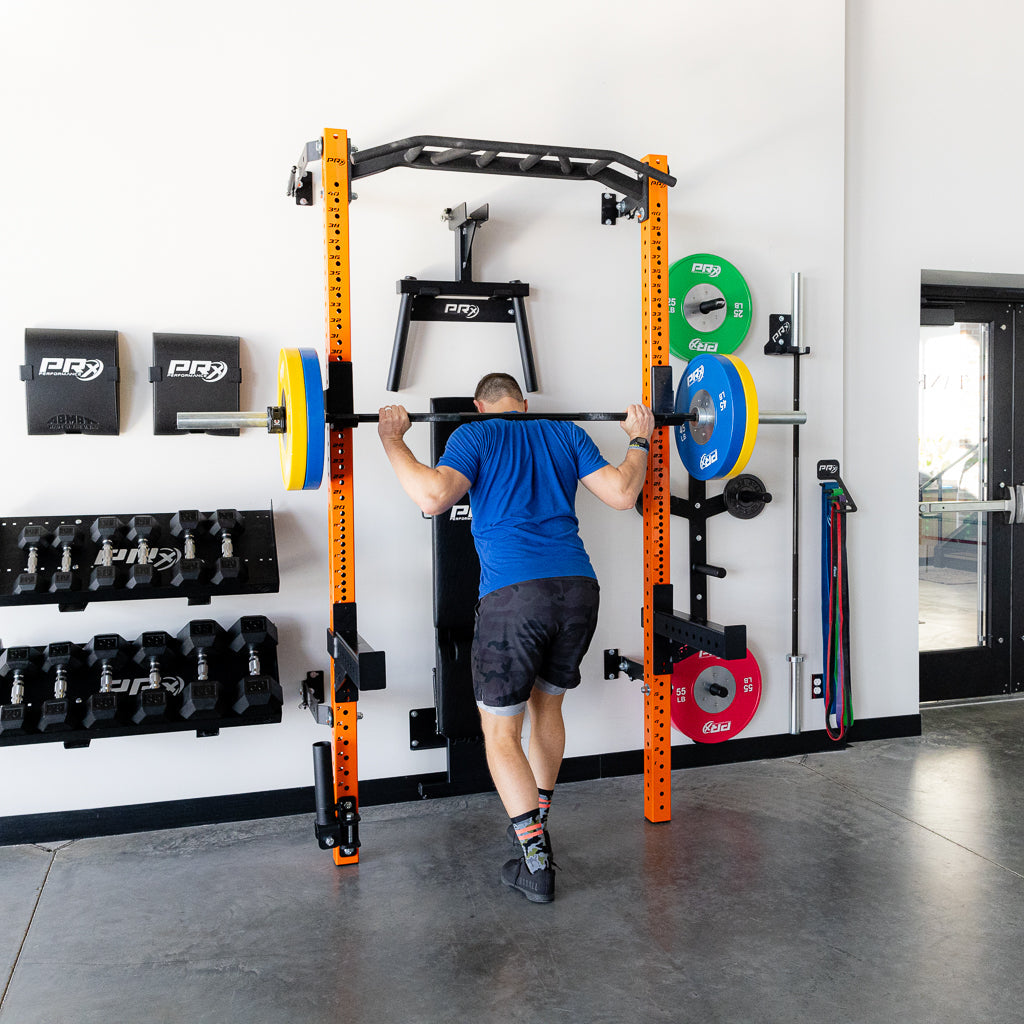

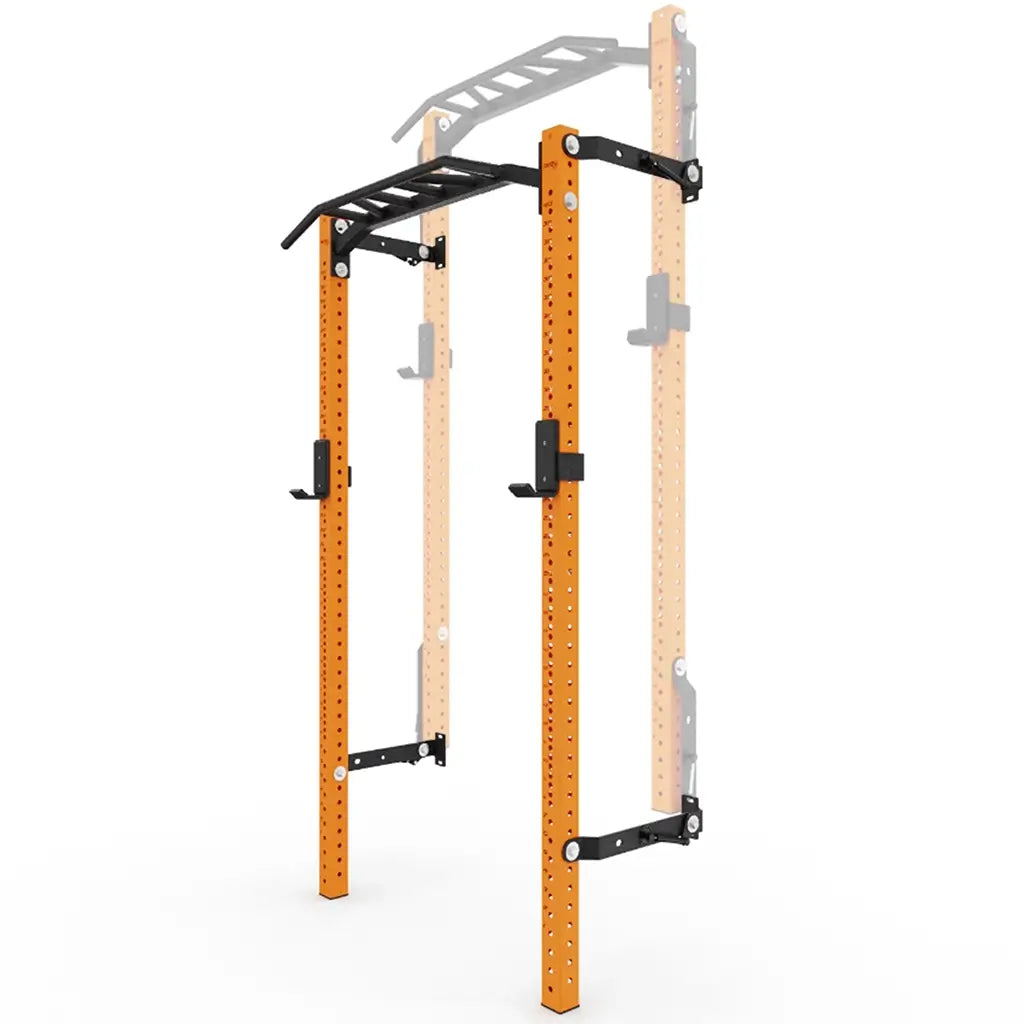

Prepare to meet the Profile® PRO Squat Rack with Pull-Up Bar – the fitness enthusiast's dream come true! This one-of-a-kind wall-mounted rack, protected by a patented design, is here to transform your workout area, whether it's nestled in your garage, snugly at home, or in a bustling commercial space. Say farewell to space limitations, and say hello to a healthier, fitter you.

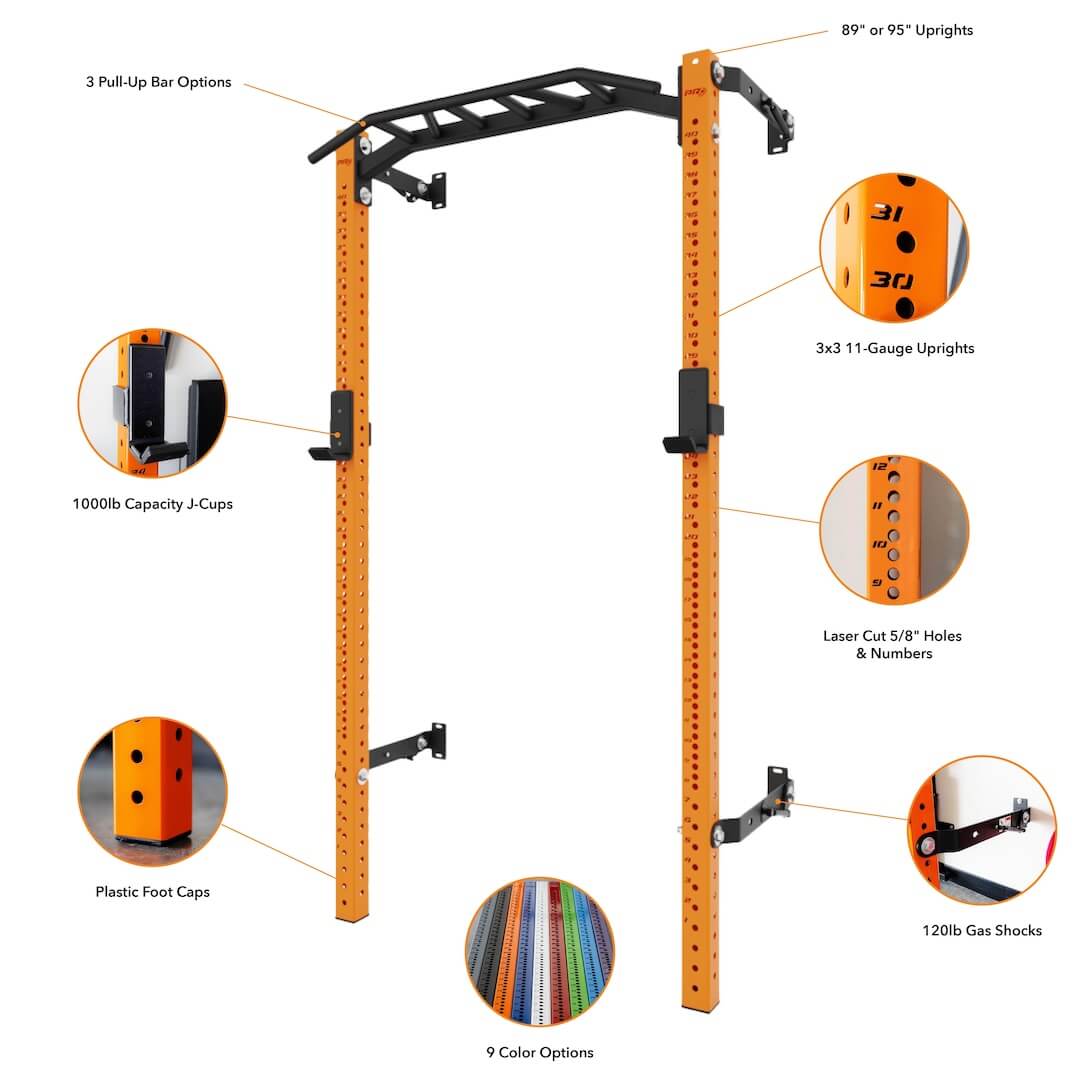

The Profile® PRO Squat Rack offers a range of fantastic features, including heavy-duty J-Cups, laser-cut numbers for precision, and a spectrum of 9 stunning colors to choose from. What's more, it proudly carries the "Made in the USA" label, guaranteeing top-tier craftsmanship.

Specs
The Rack
Uprights (2) 11-gauge 3x3 steel uprights
89" or 95" height options
9 colors
Total Rack Width 53"
Outside of Uprights Width 48"
Hole Size 5/8"
Hole Spacing Front: 2" (1" in bench area)
Side: 2"

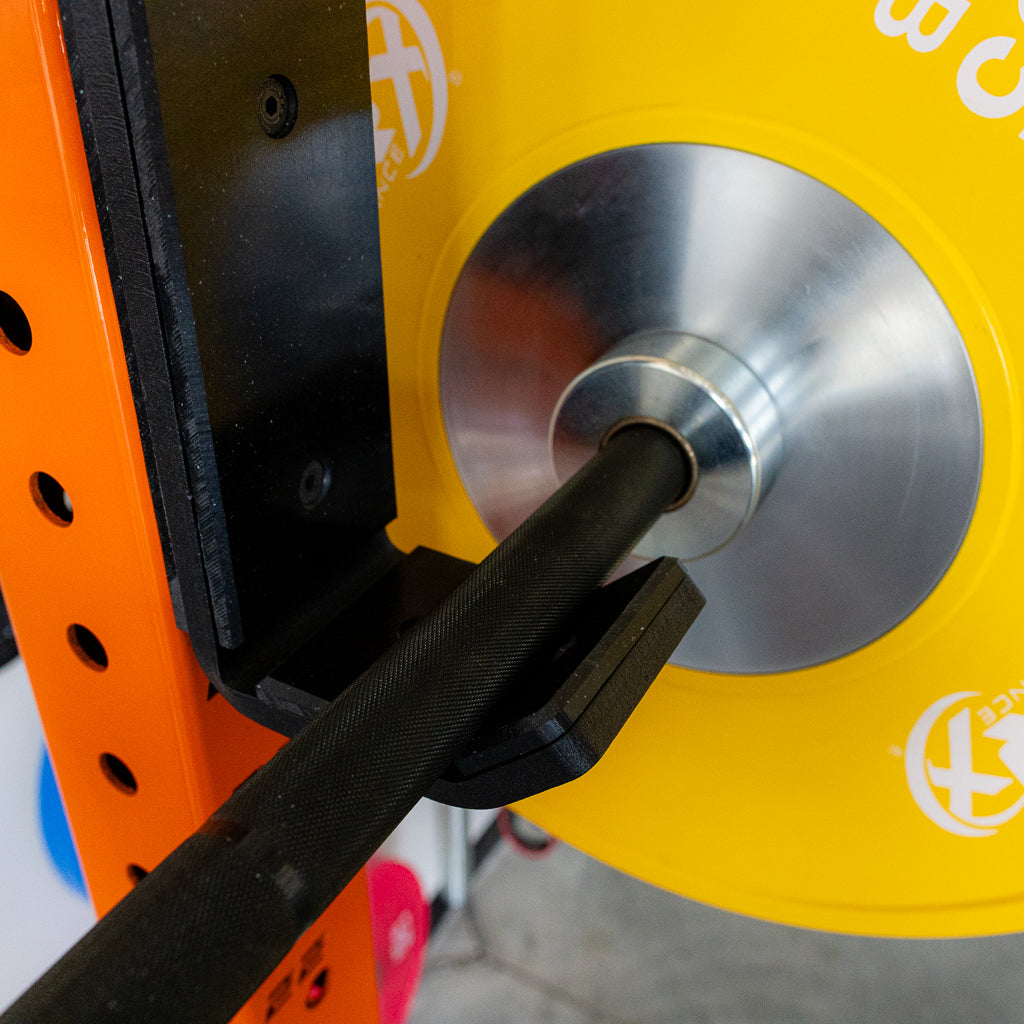

J-Cups (2) UHMW covered J-cups included

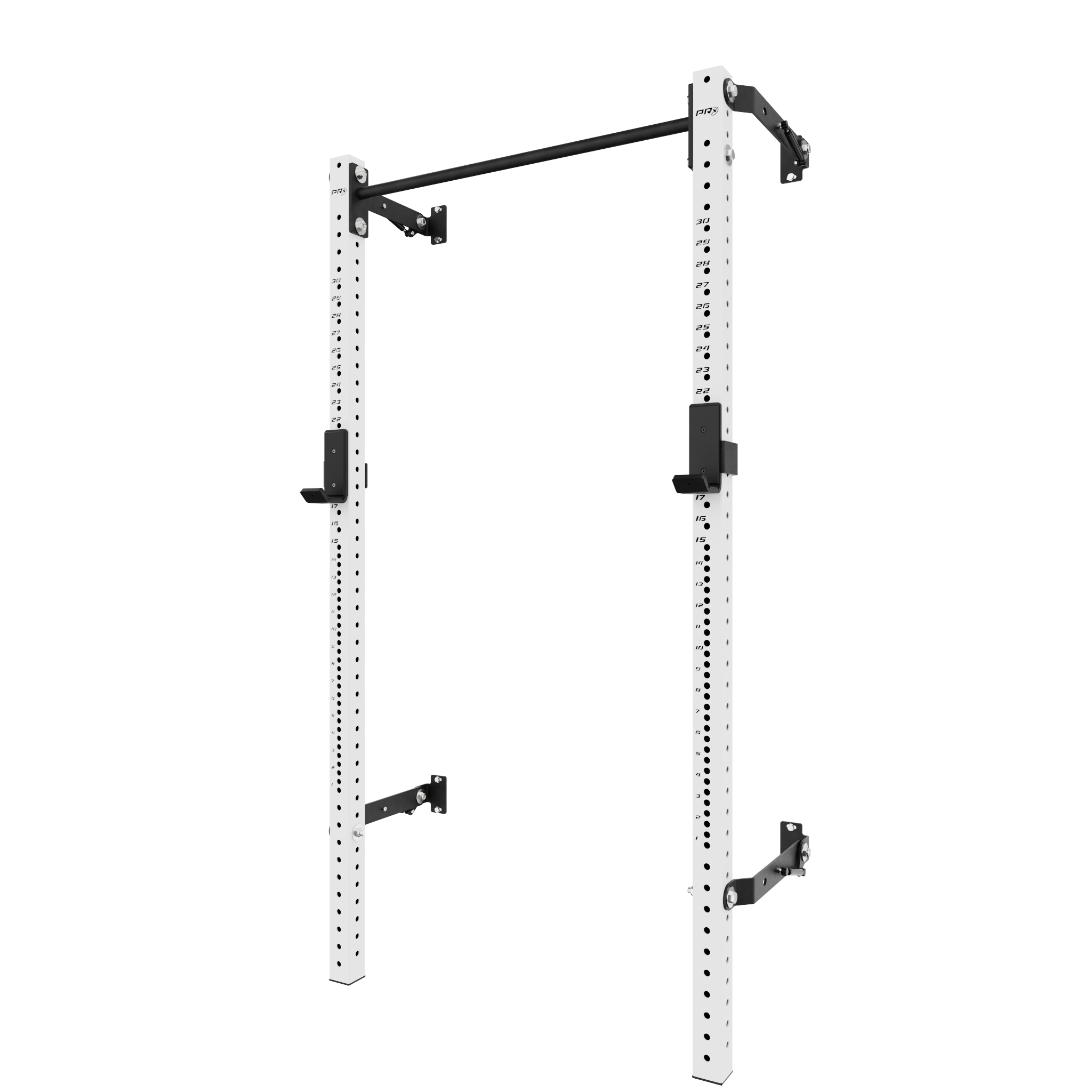

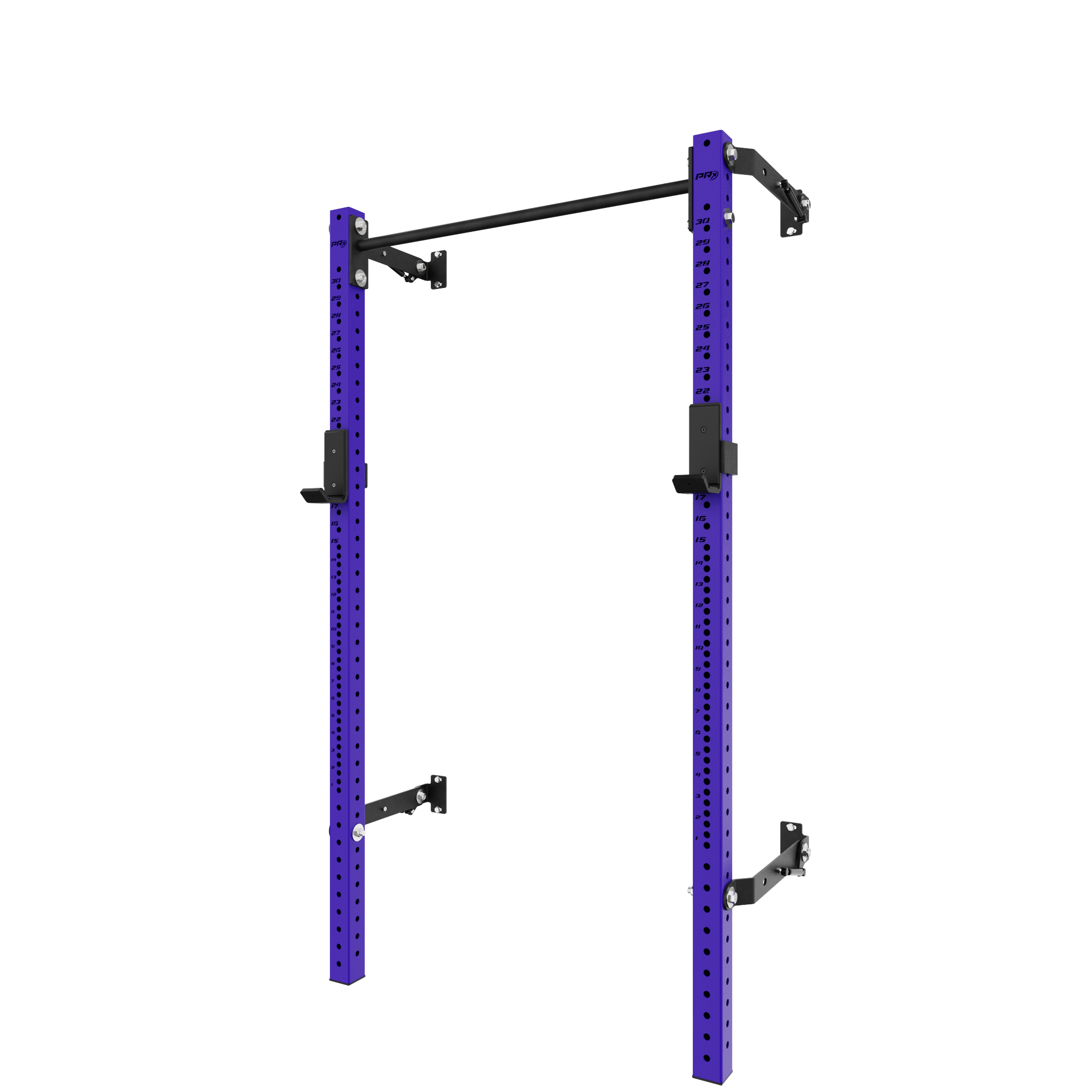

Pull-Up Bars 42" total length
1.25" bar diameter
Tuff Coat powder coat
Equipment All wall mounting brackets & hardware for wood stud installation included
Capacity 1,000lb

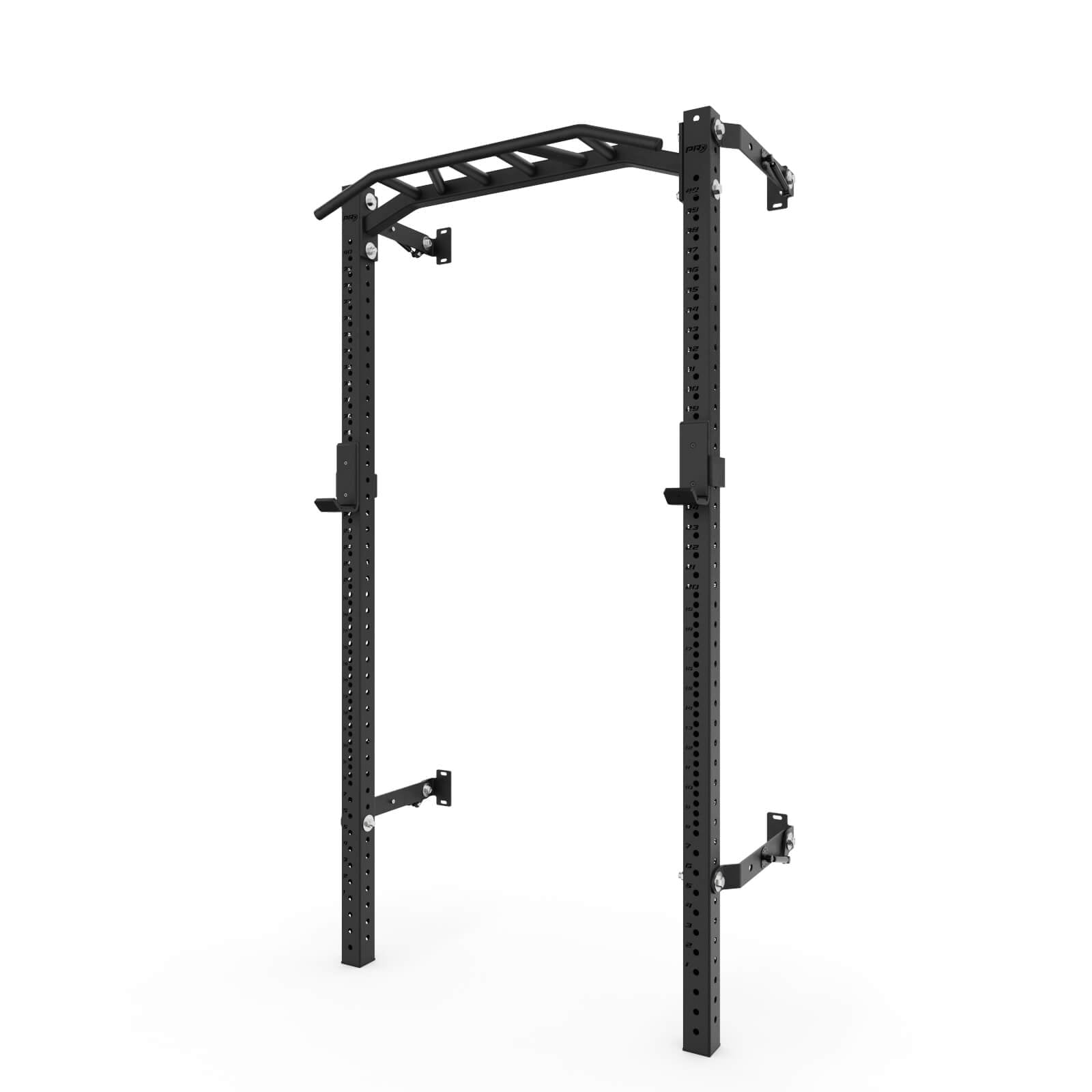

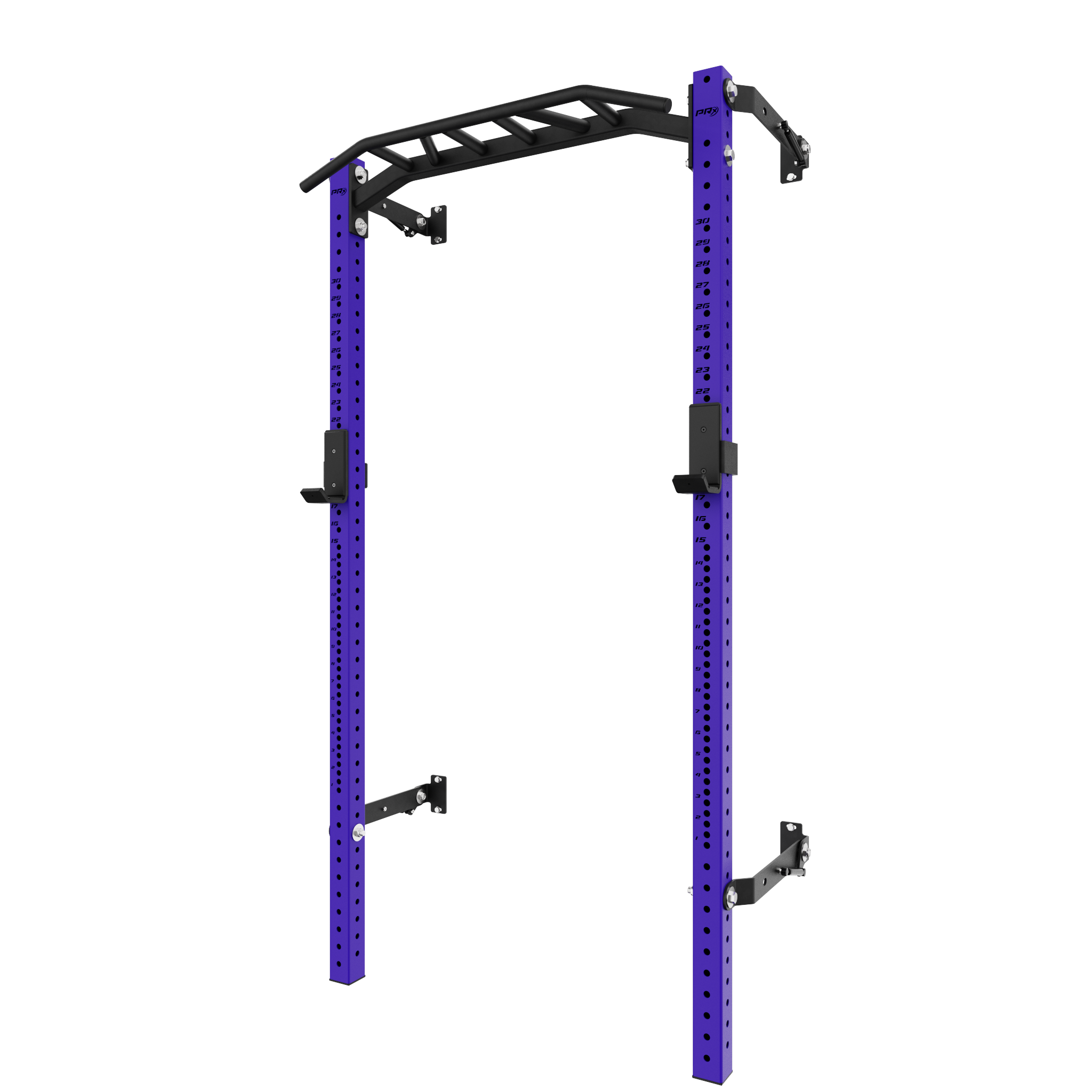

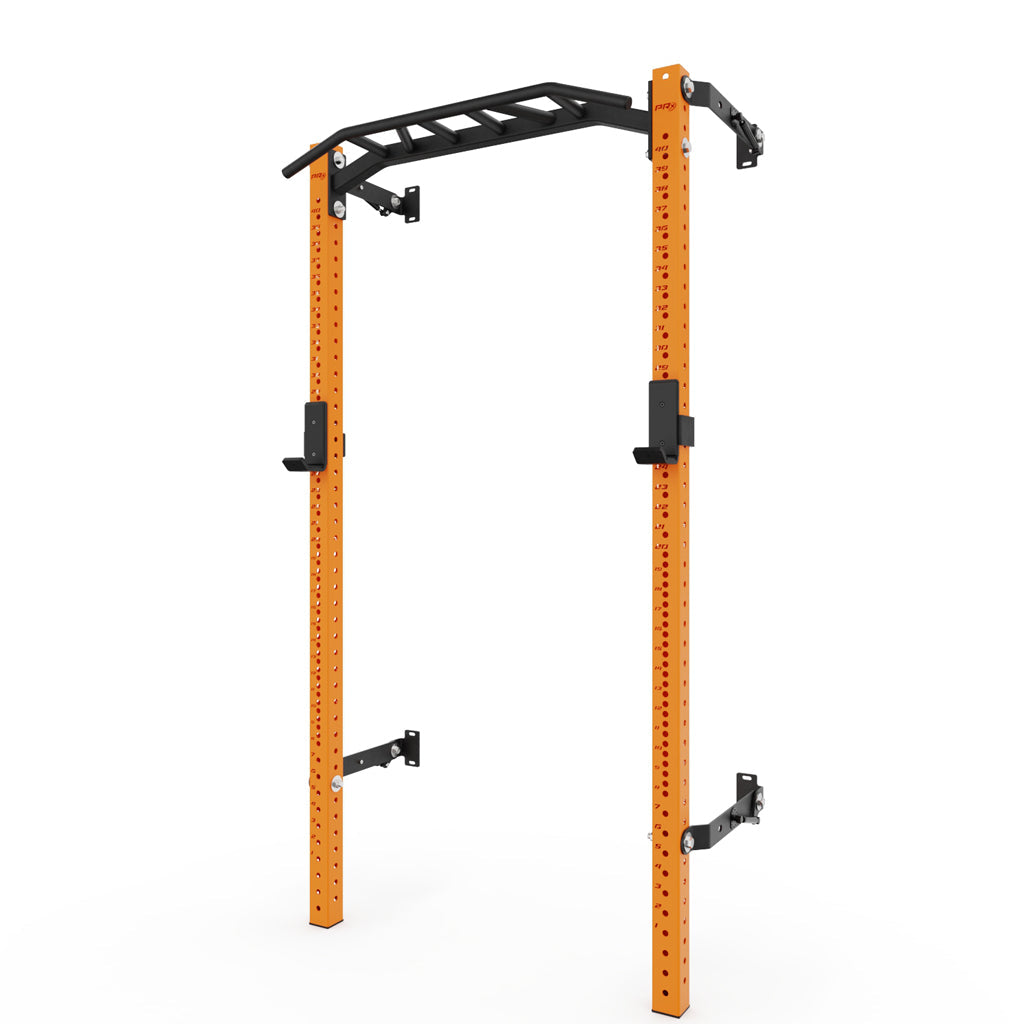

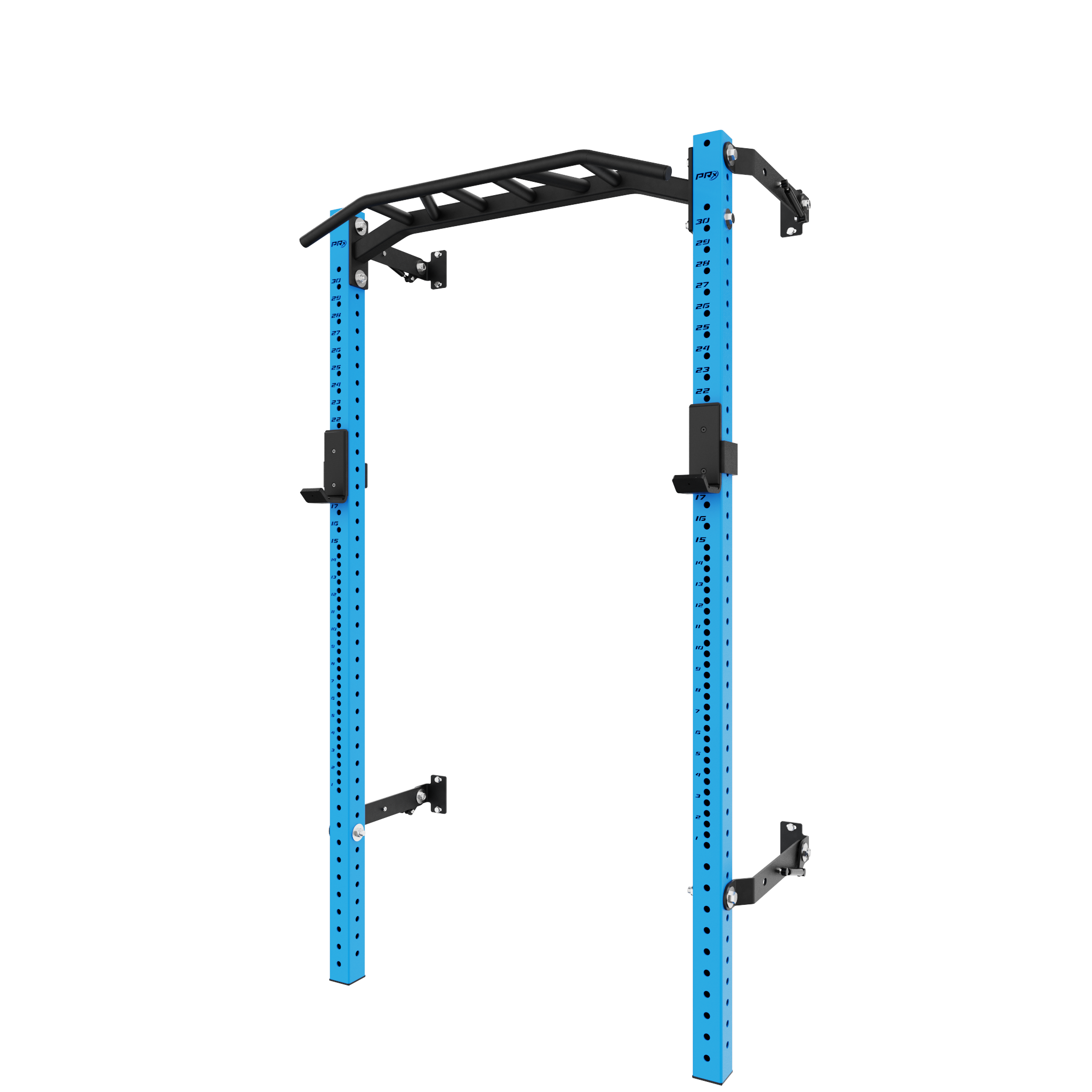

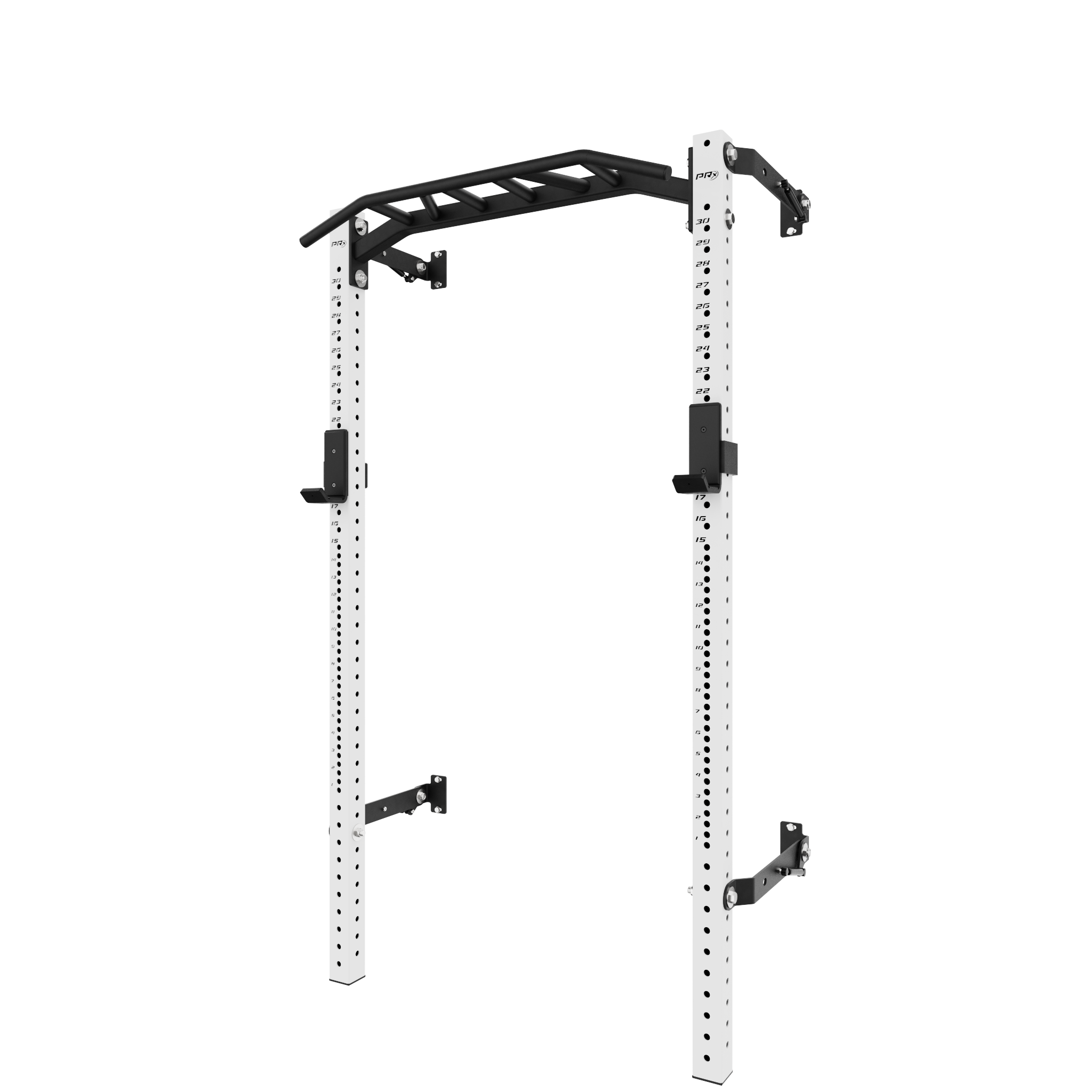

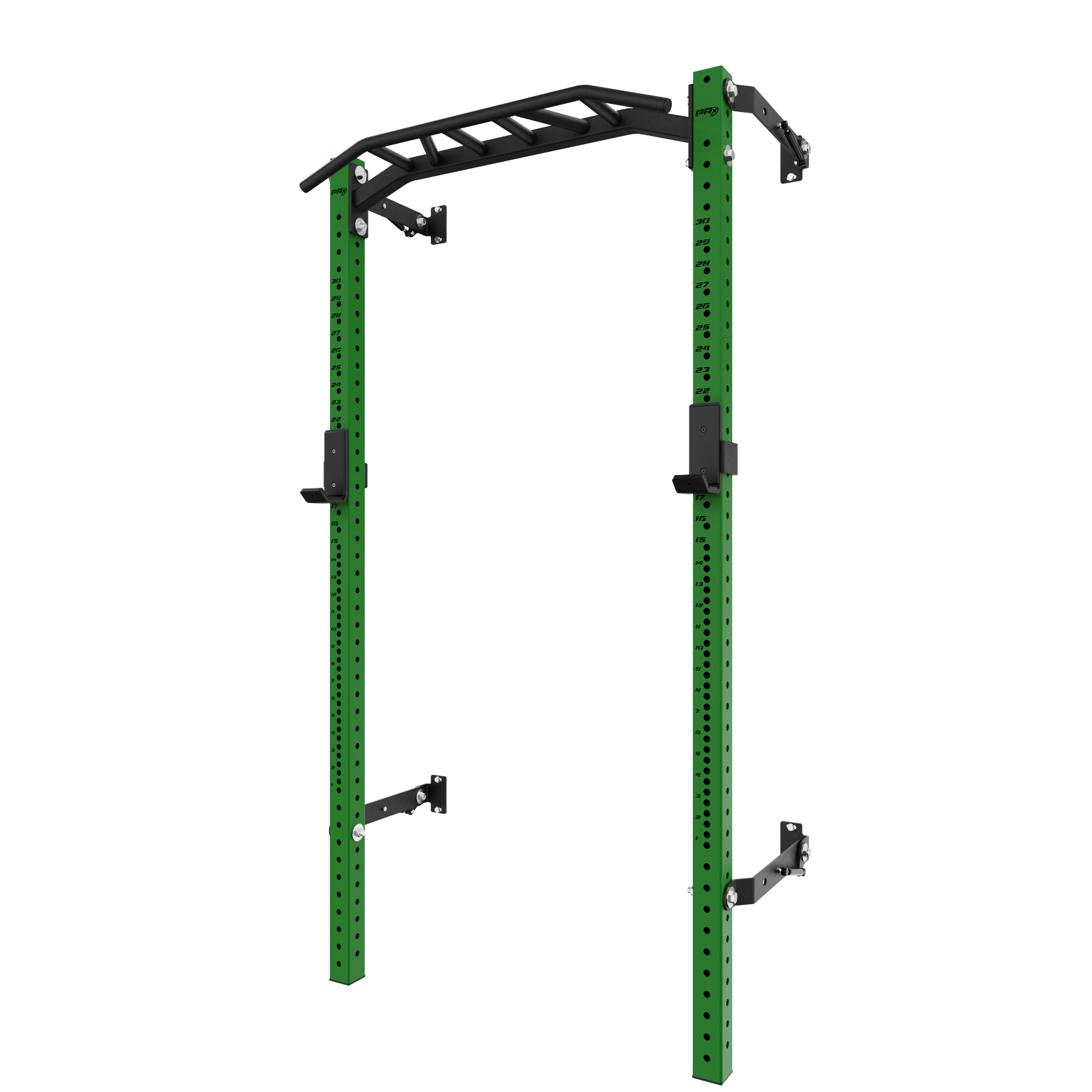

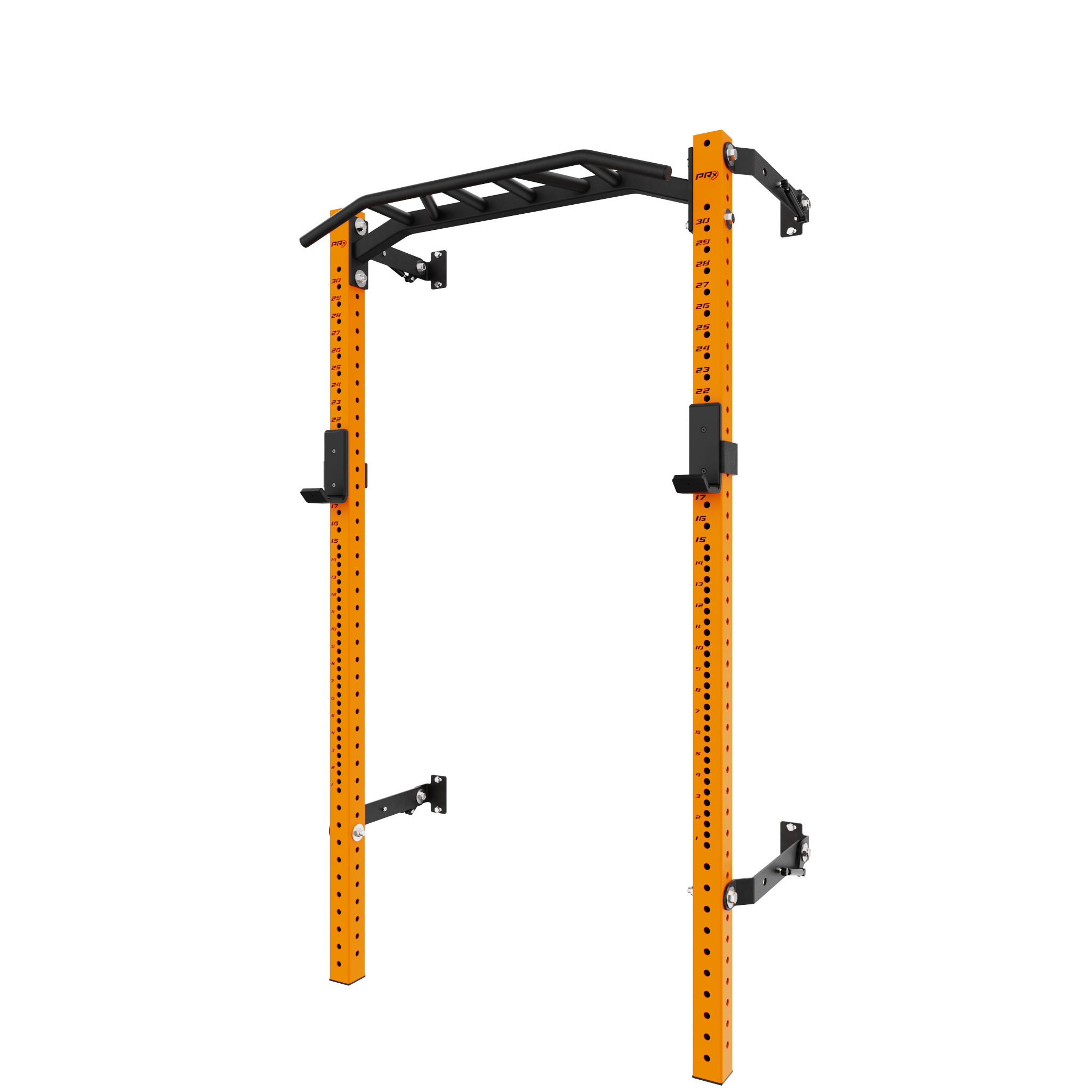

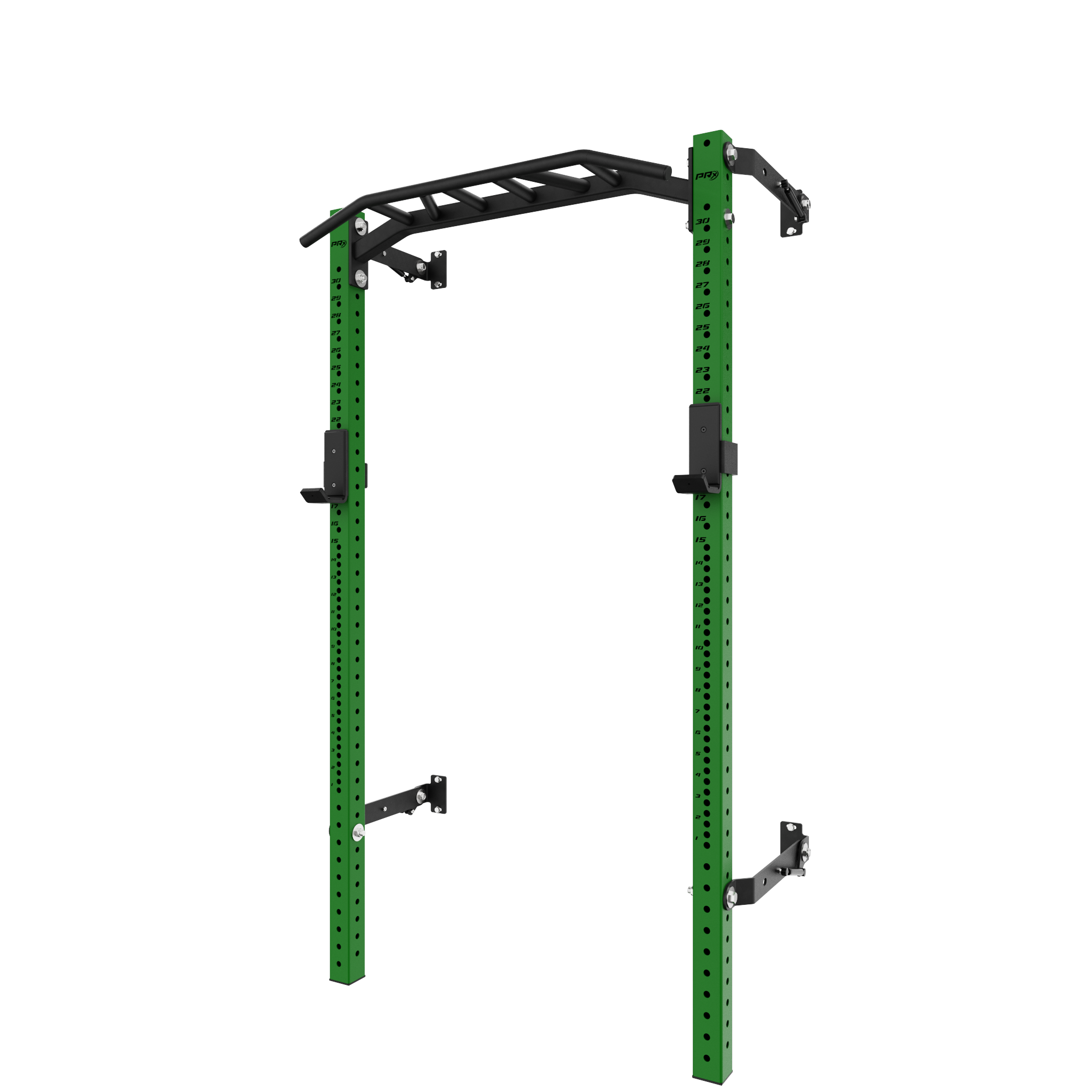

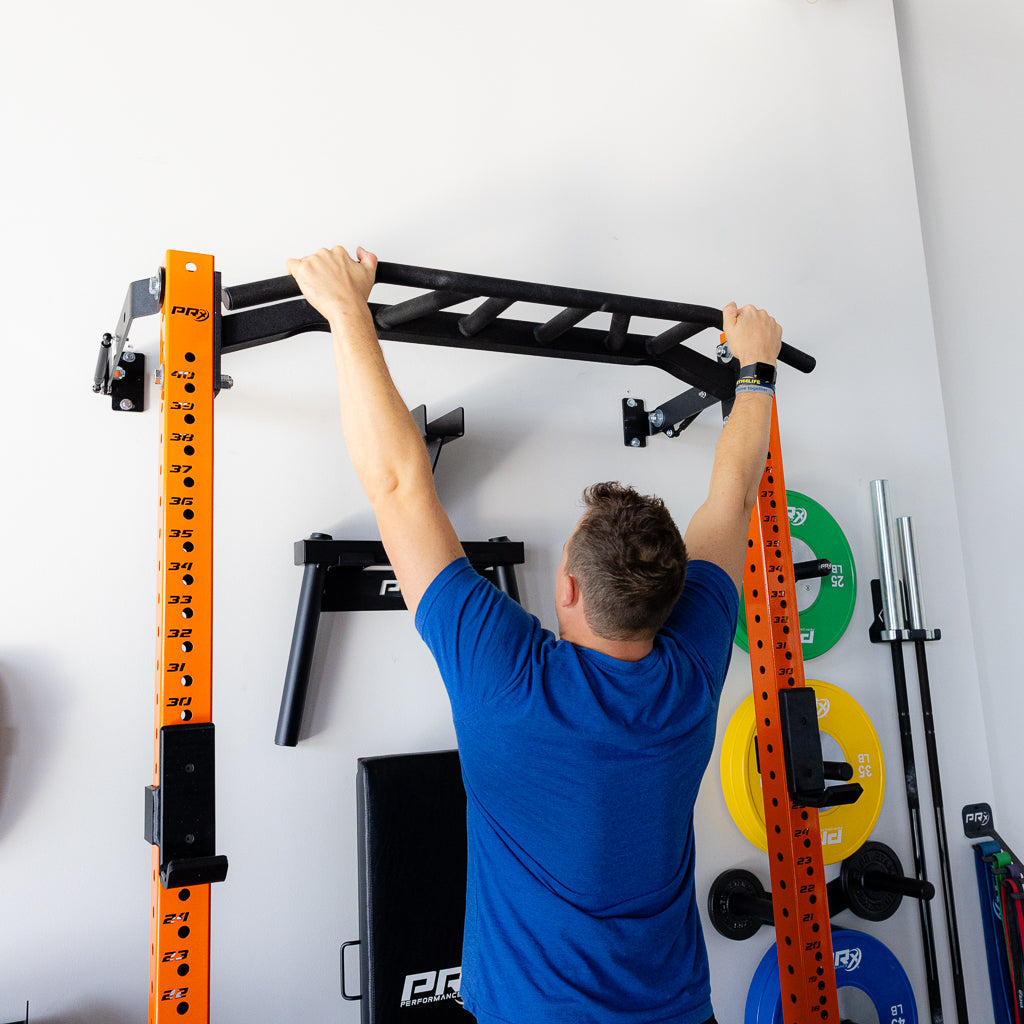

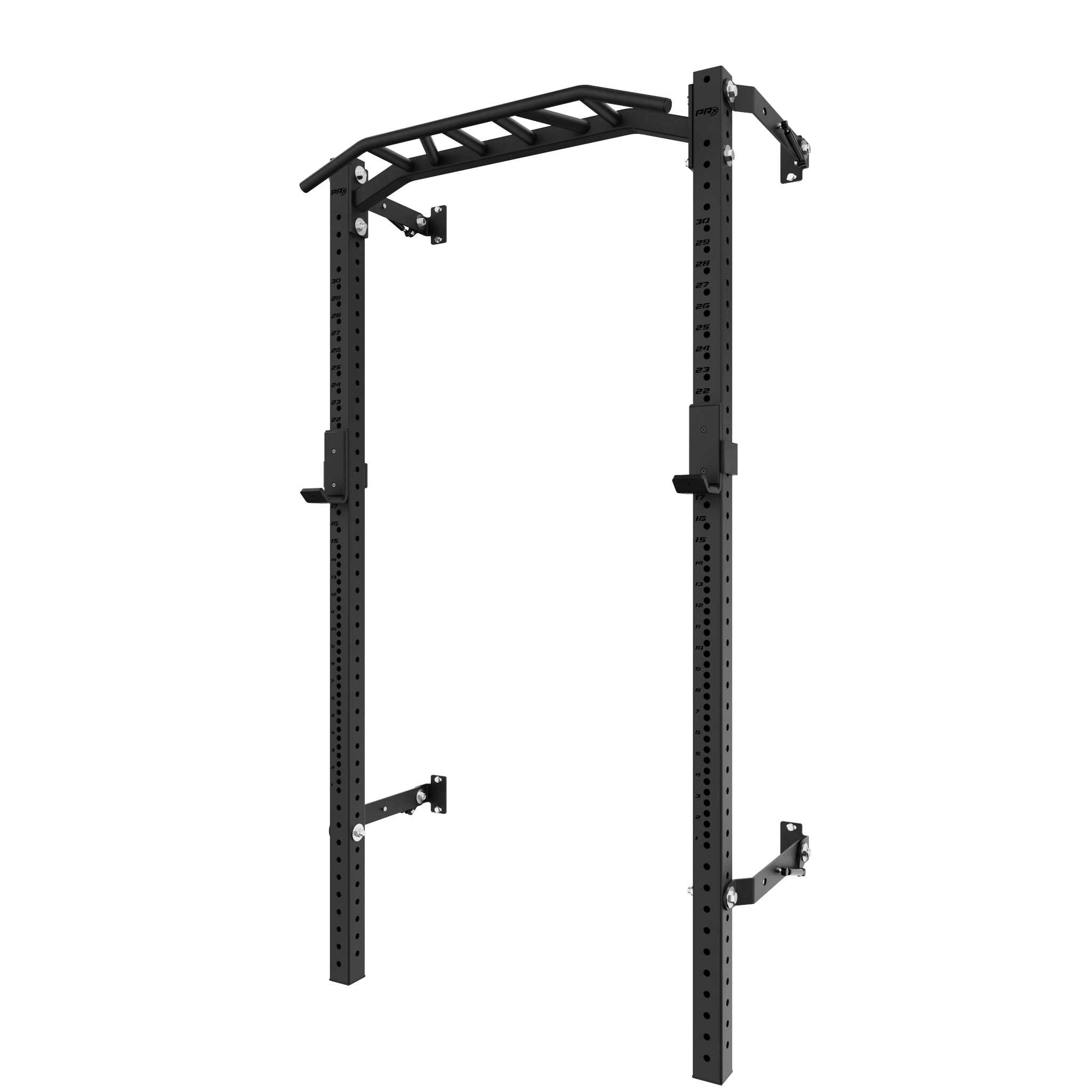

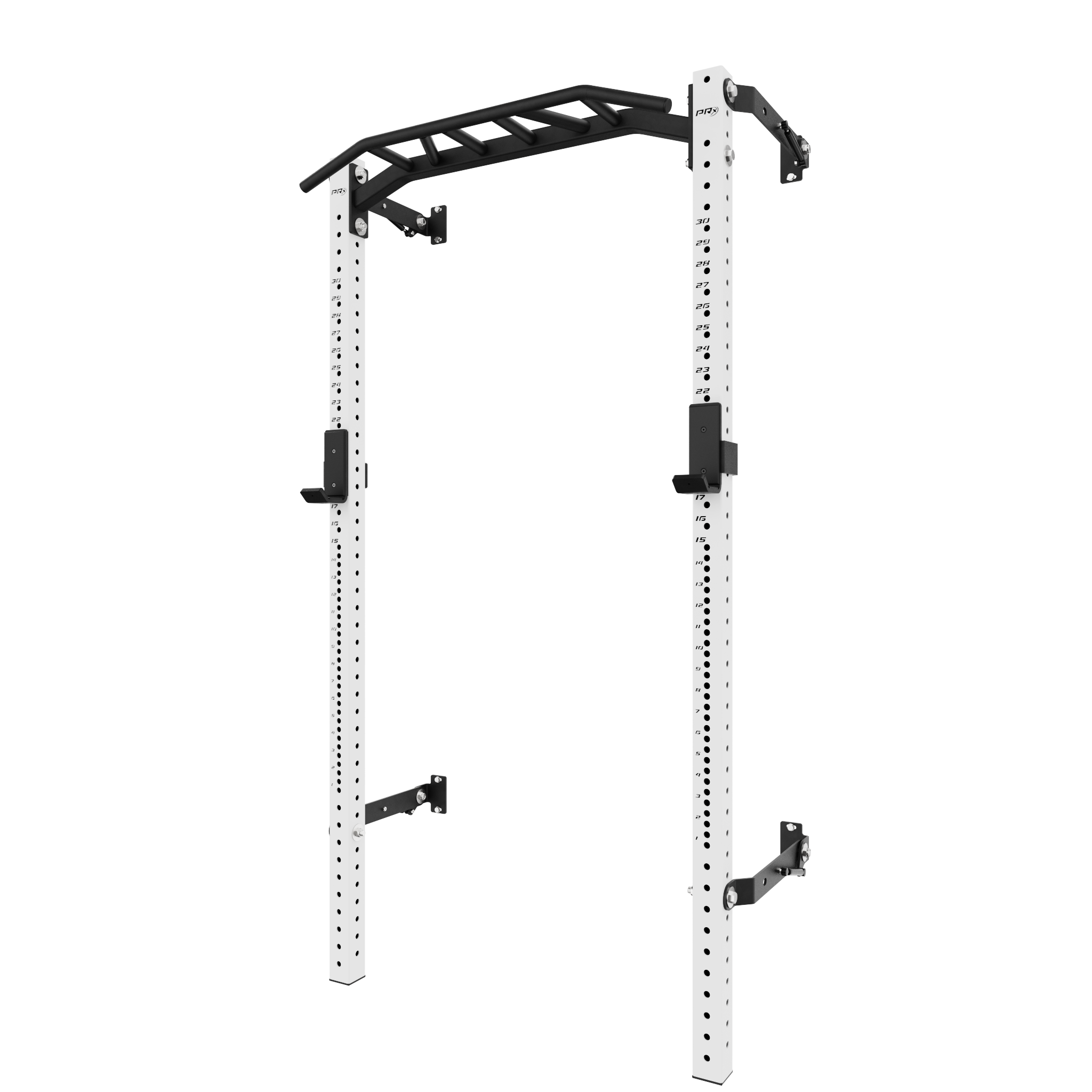

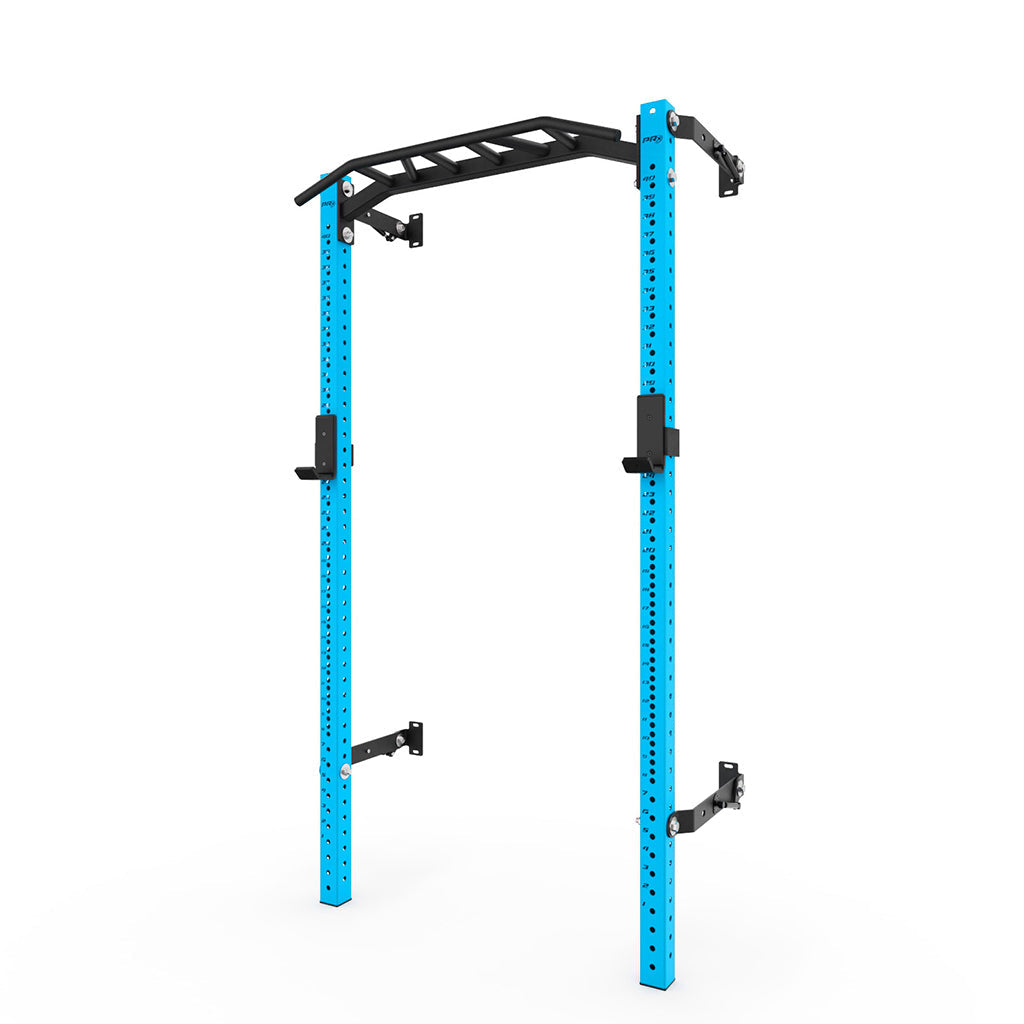

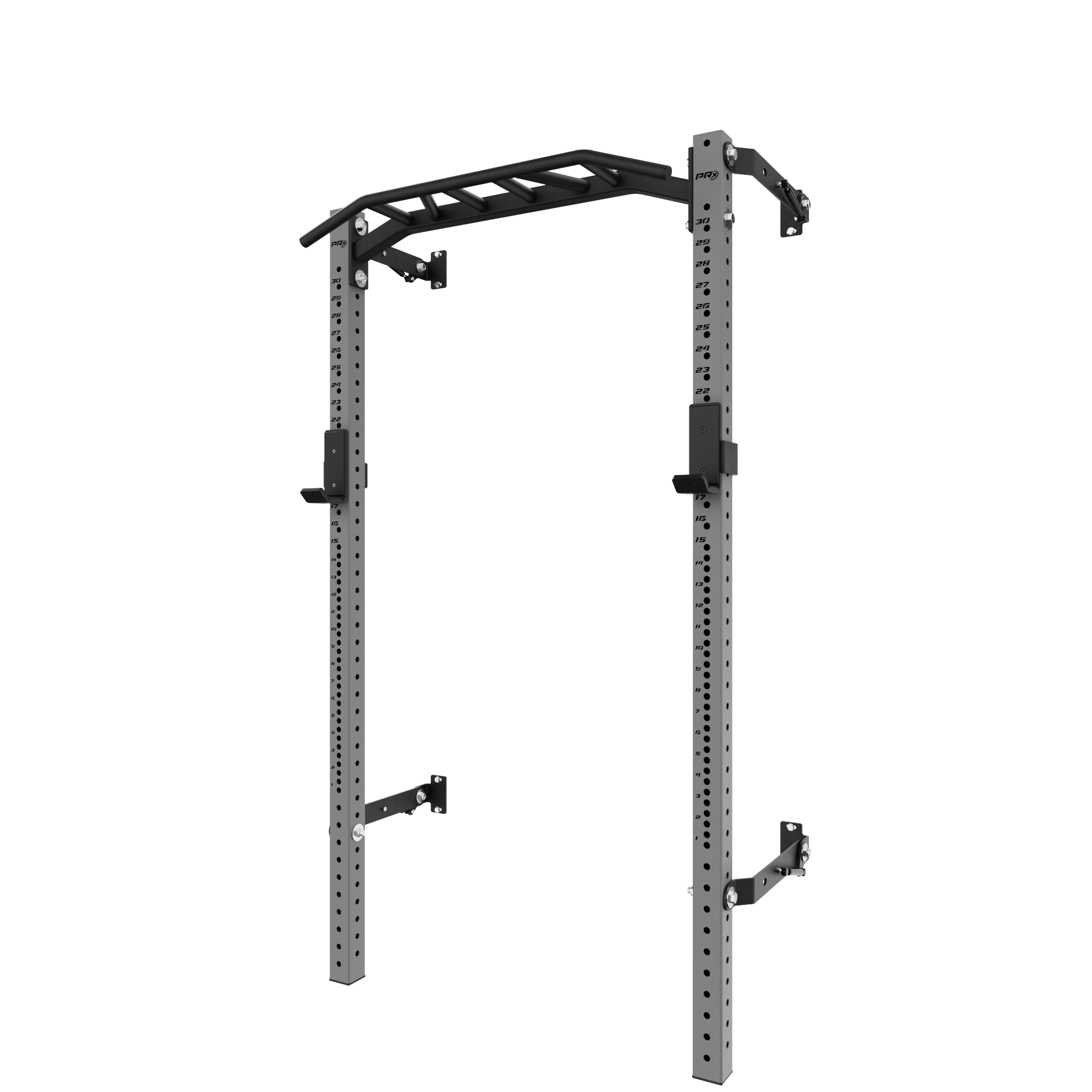

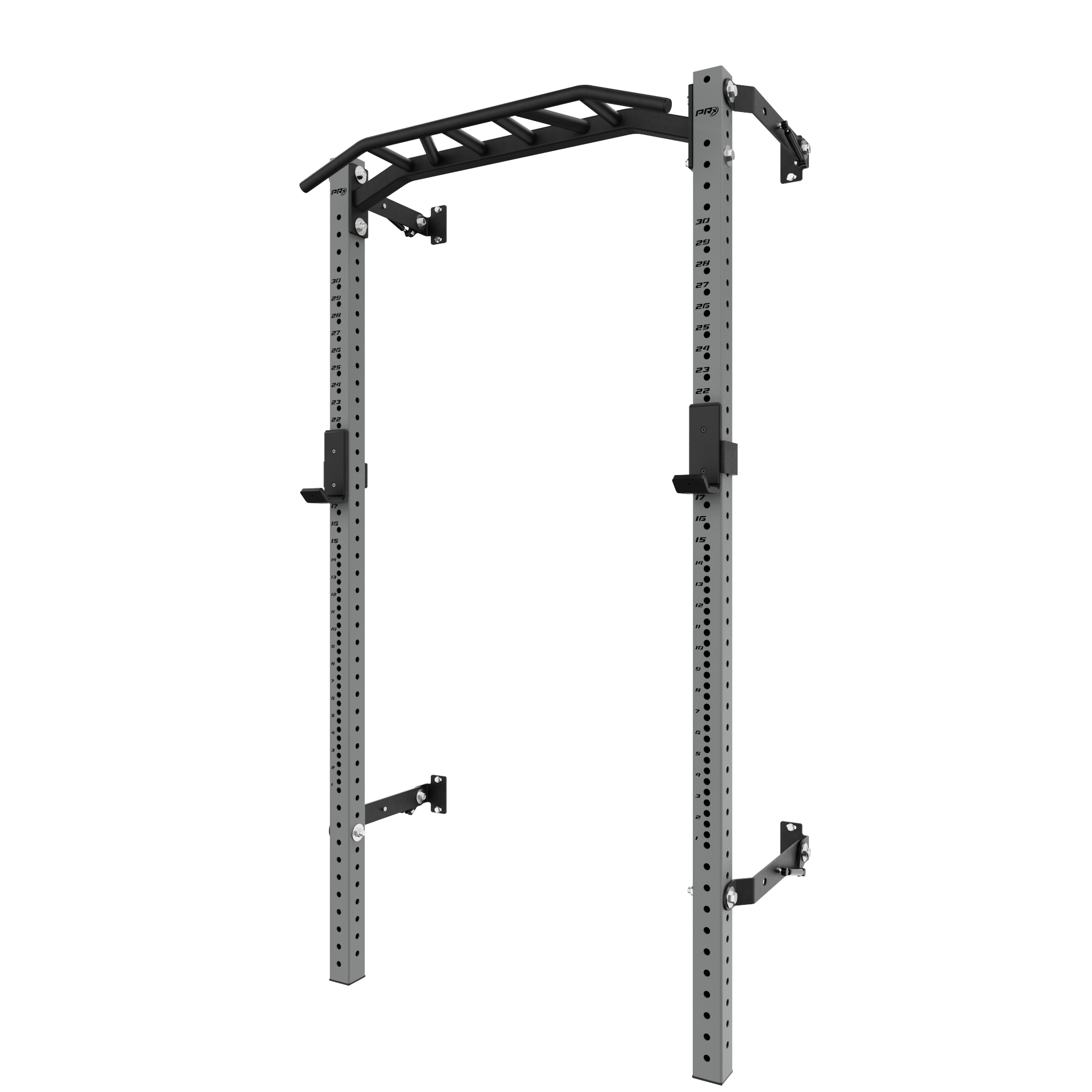

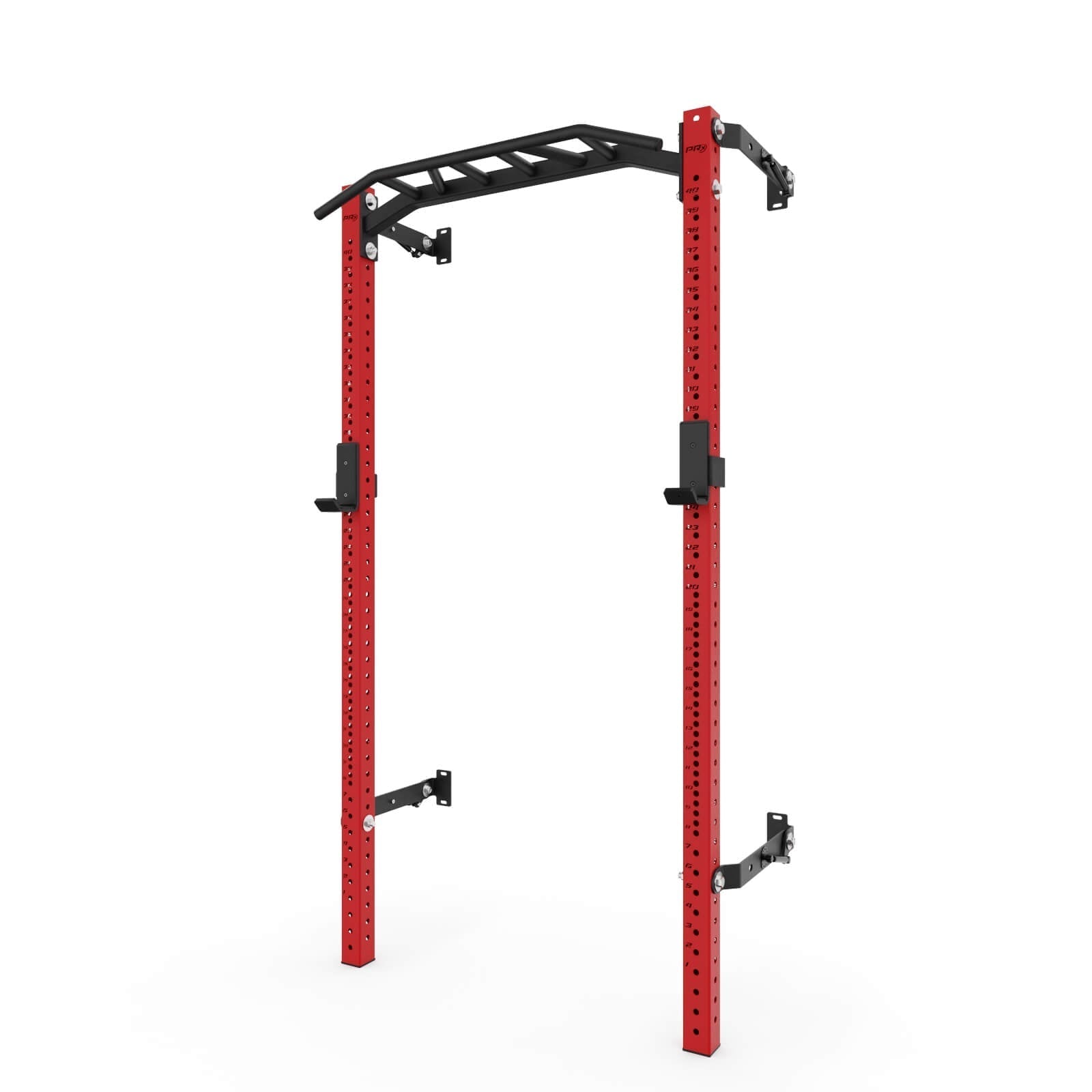

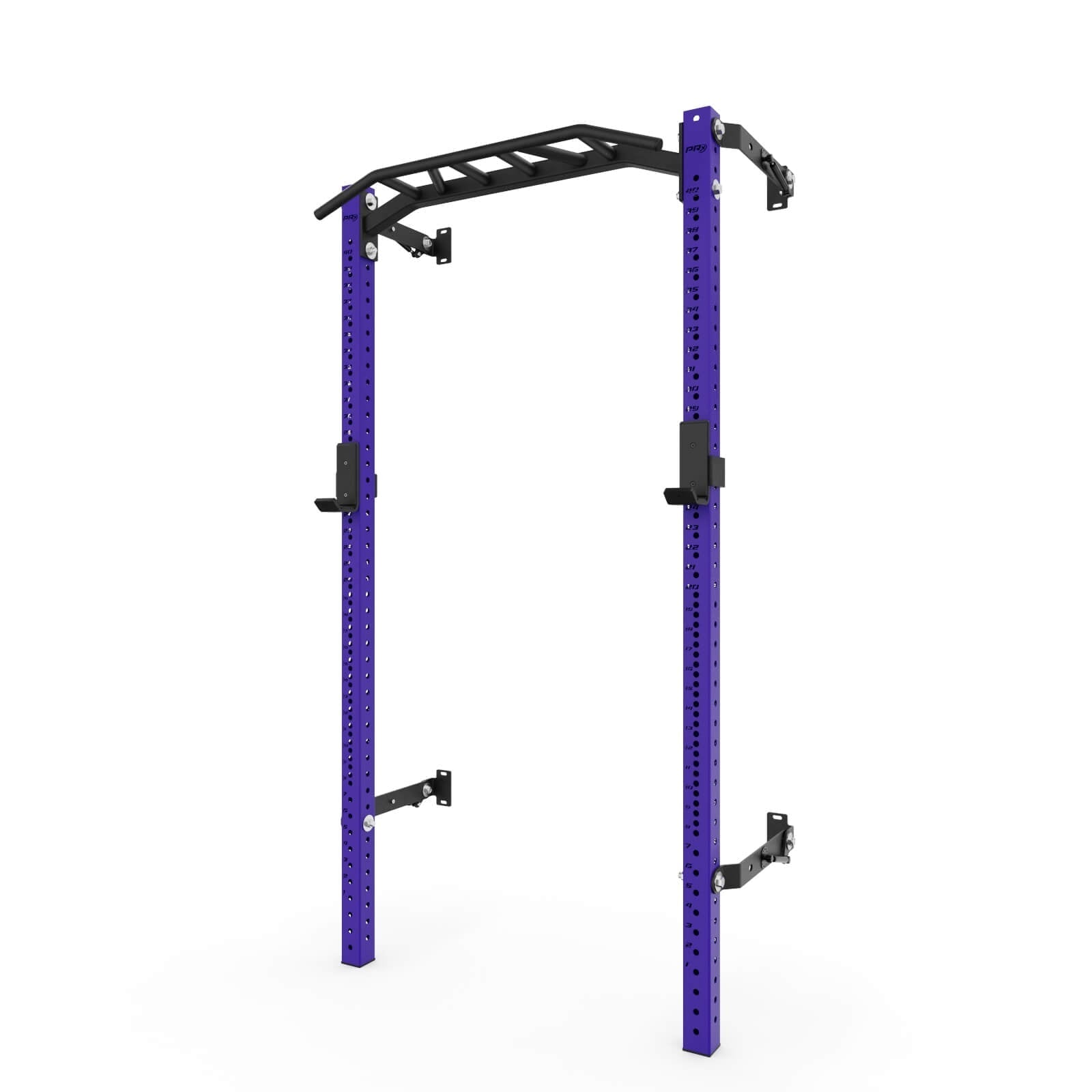

Multi-Grip Bar
Clearance 29.25" from wall folded down
11.25 from wall folded up
Grip Options Narrow neutral - 4.75"
Angled - 13"
Wide neutral - 24"
Wide - 35"

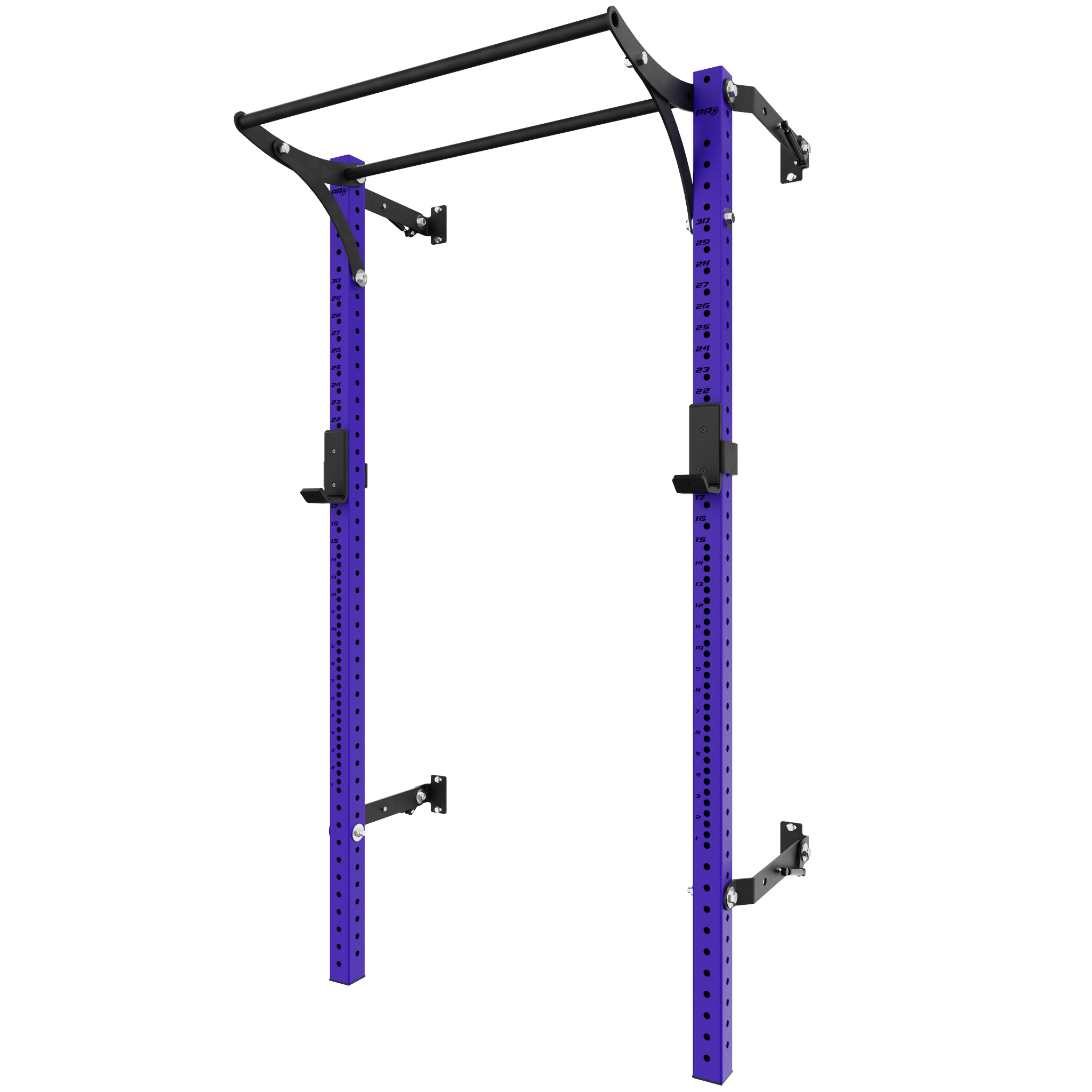

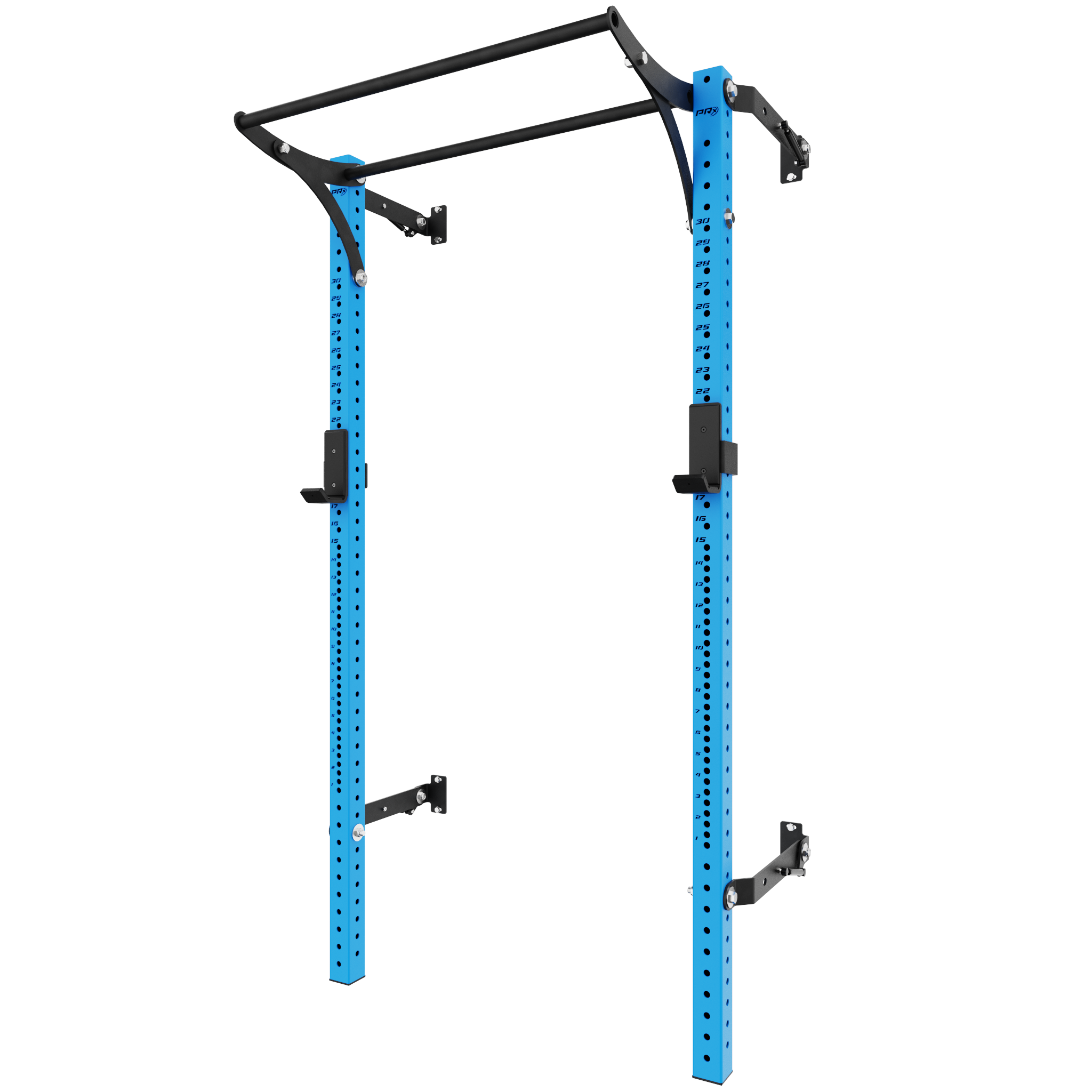

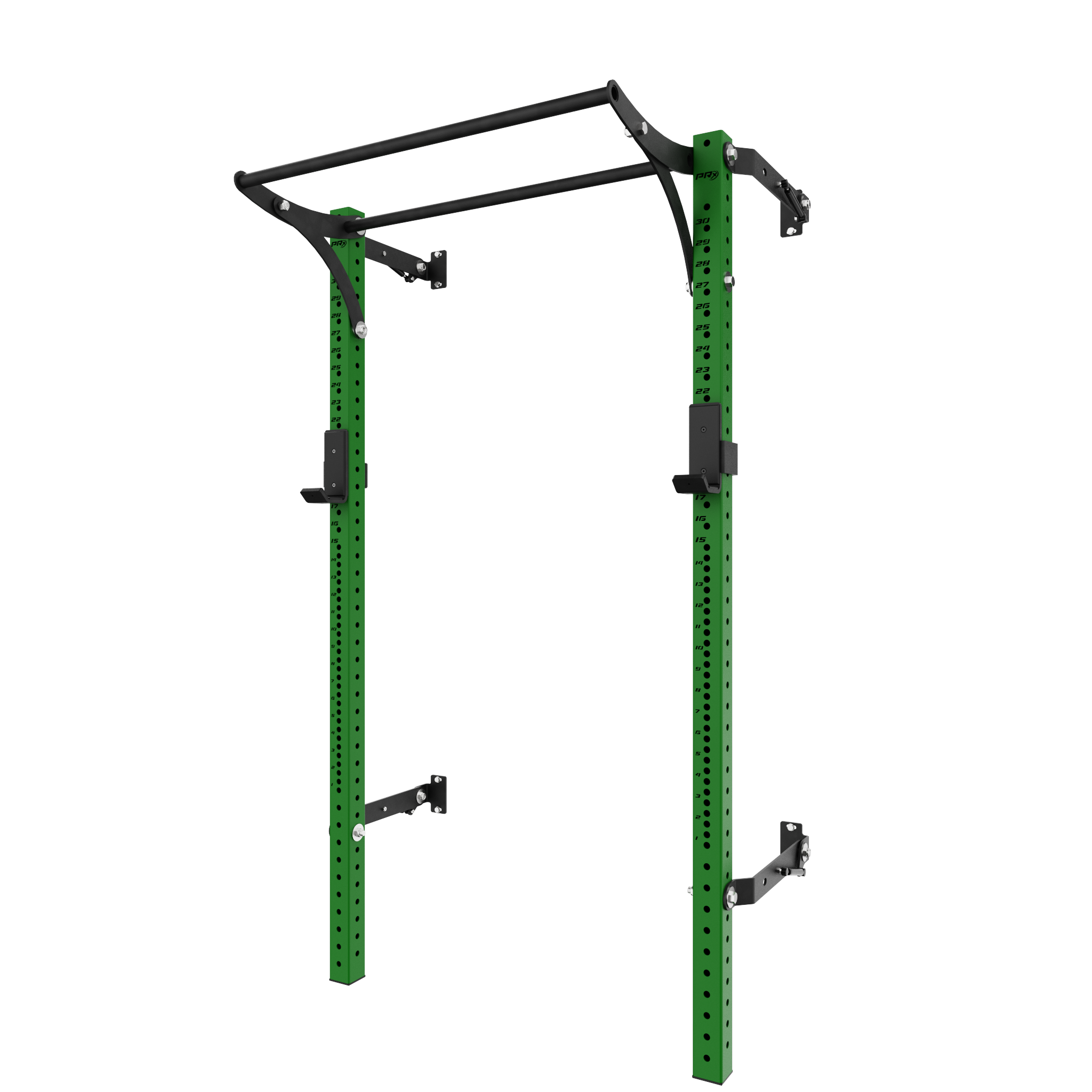

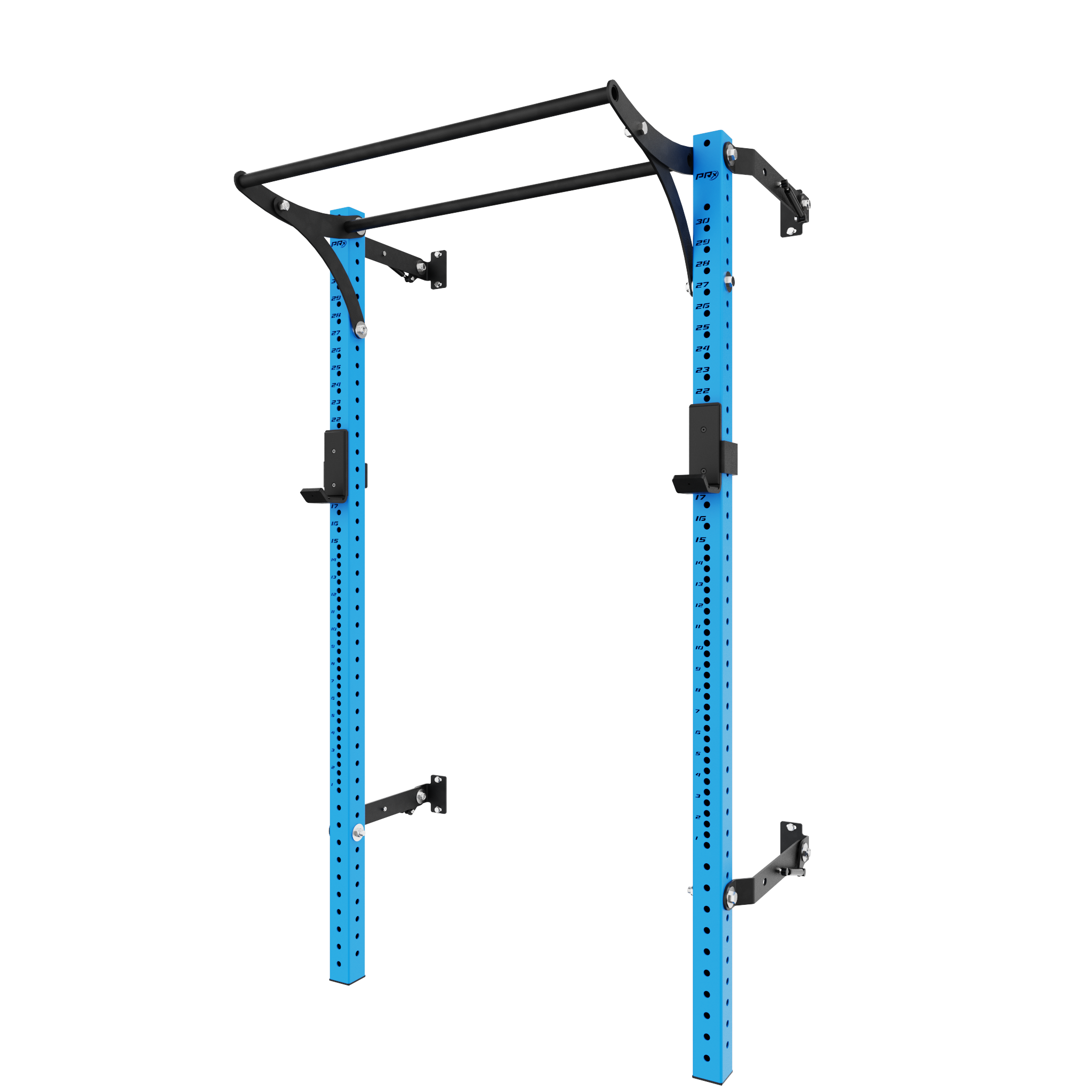

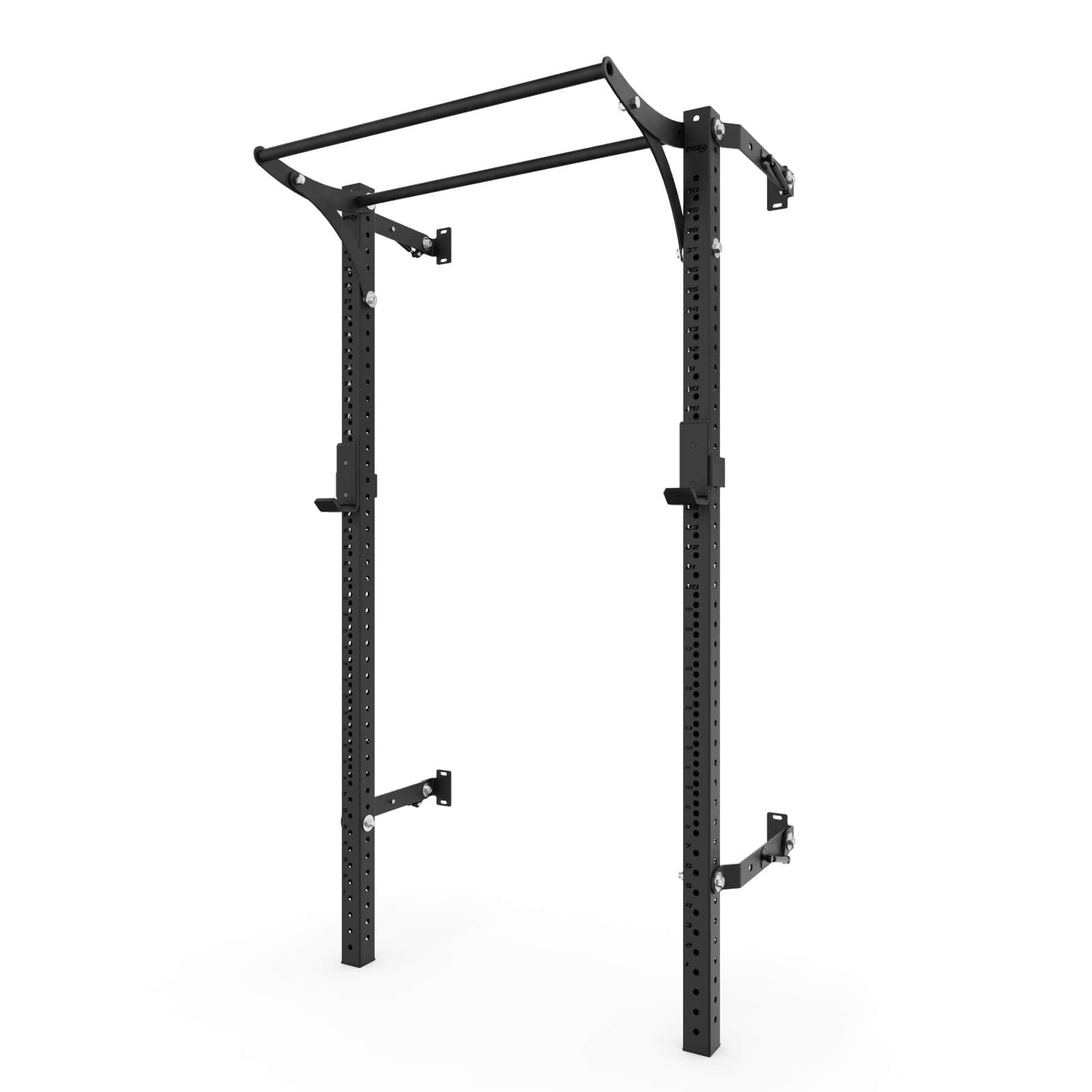

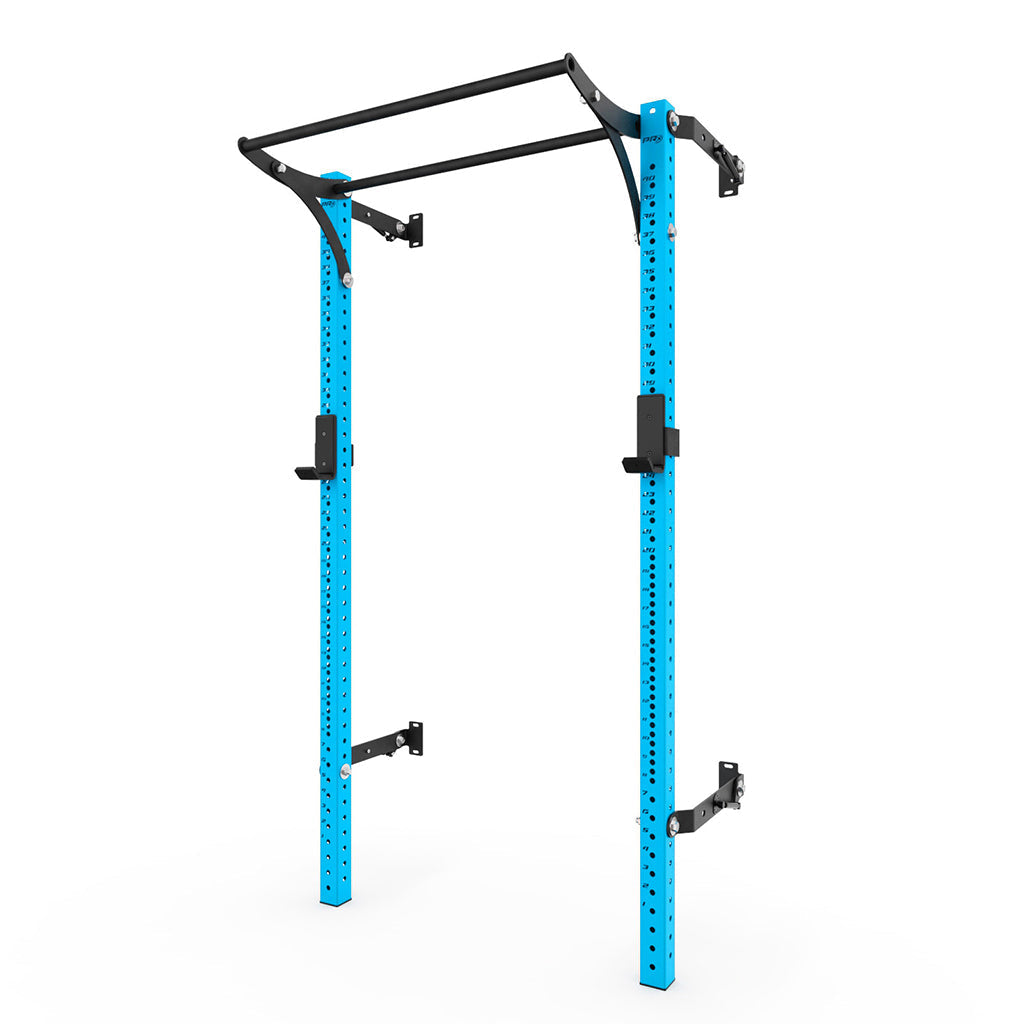

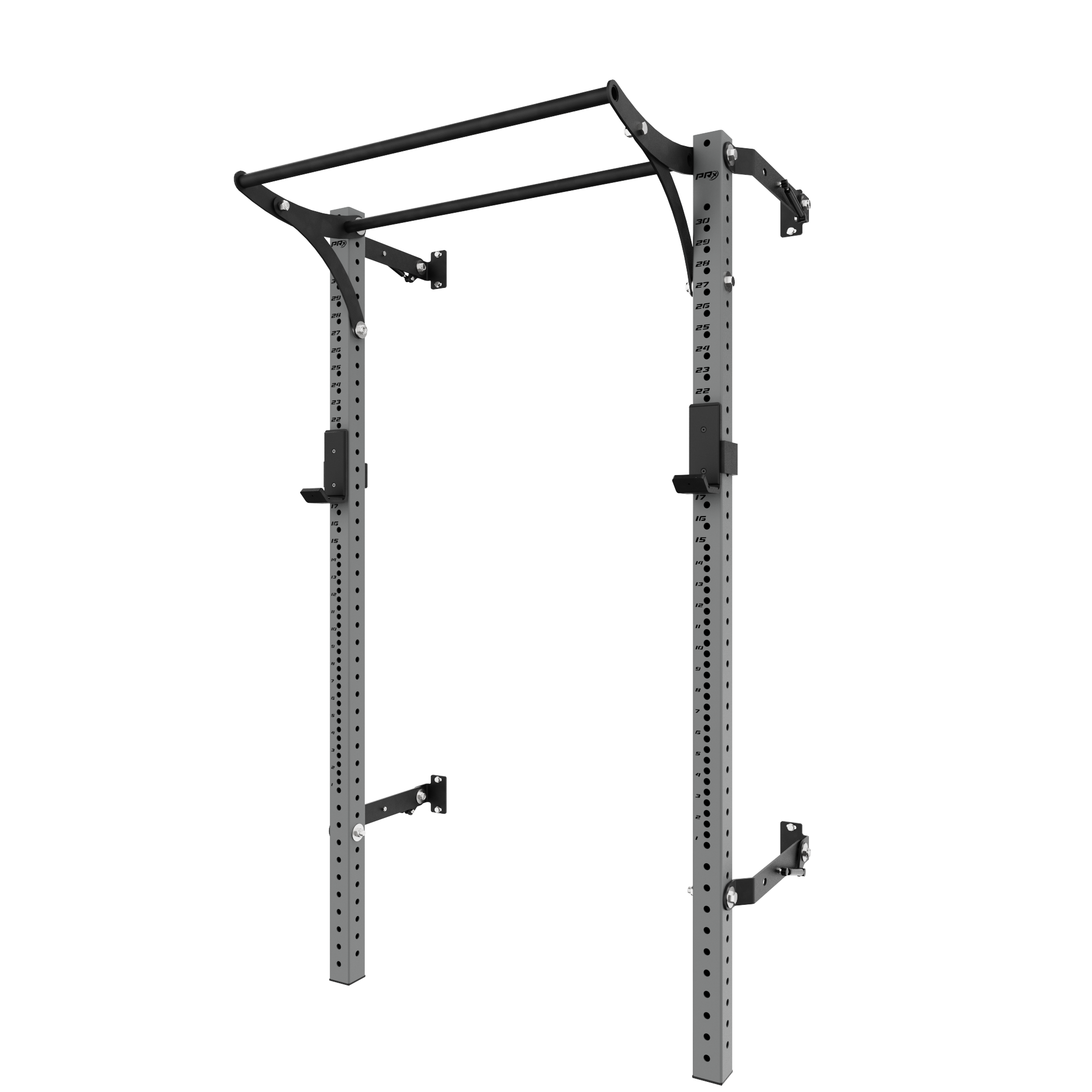

Kipping Bar
Clearance 39.5" from wall folded down
22.5" from wall folded up
Suggested Space
Ceiling Height

89" Racks

  • 8'11" (107") ceilings recommended
  • Can accommodate ceilings down to 94" with a modified install

95" Racks

  • 9'5" (113") ceilings recommended
  • Can accommodate ceilings down to 100" with a modified install
Stud Spacing

Wall Brackets mount to 16" or 24" on center studs. If studs are unevenly spaced, a ledger board is required.
